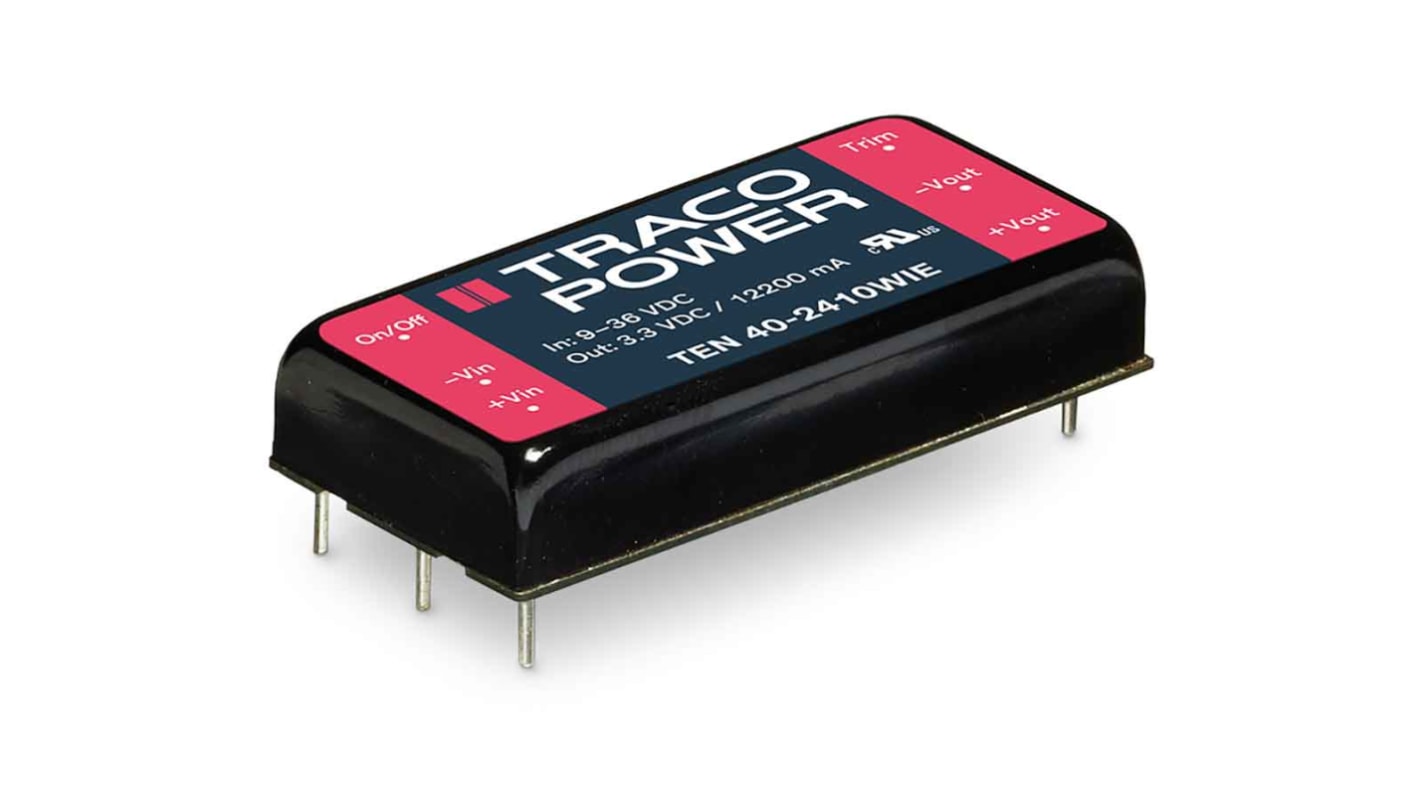

TRACOPOWER TEN 40WIE DC-DC Converter, 5V dc/ 8A Output, 18 → 75 V dc Input, 40W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 194-4671
- Mfr. Part No.:
- TEN 40-4811WIE
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 unit)*
£61.42
(exc. VAT)
£73.70
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 10 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £61.42 |
5 - 9 | £59.58 |
10 - 24 | £57.73 |
25 - 49 | £55.28 |
50 + | £52.82 |
*price indicative
- RS Stock No.:
- 194-4671
- Mfr. Part No.:
- TEN 40-4811WIE
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TRACOPOWER | |
Output Voltage | 5V dc | |
Input Voltage Range | 18 → 75 V dc | |
Power Rating | 40W | |
Input Voltage Nominal | 48 V dc | |
Output Current | 8A | |
Mounting Type | Through Hole | |
Isolated | Yes | |
Number of Outputs | 1 | |
Output Voltage Adjustment Range | ±10% | |
Package | 2 in x 1 in Case | |
Isolation Voltage | 1.131 kV dc, 1.6kV dc | |
Width | 25.4mm | |
Depth | 10.2mm | |
Length | 50.8mm | |
Series | TEN 40WIE | |
Load Regulation | 0.003 | |
Maximum Temperature | +85°C | |
Efficiency | 91 (Typ.)% | |
Minimum Temperature | -40°C | |
Select all | ||
---|---|---|
Brand TRACOPOWER | ||
Output Voltage 5V dc | ||
Input Voltage Range 18 → 75 V dc | ||
Power Rating 40W | ||
Input Voltage Nominal 48 V dc | ||
Output Current 8A | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Output Voltage Adjustment Range ±10% | ||
Package 2 in x 1 in Case | ||
Isolation Voltage 1.131 kV dc, 1.6kV dc | ||
Width 25.4mm | ||
Depth 10.2mm | ||
Length 50.8mm | ||
Series TEN 40WIE | ||
Load Regulation 0.003 | ||
Maximum Temperature +85°C | ||
Efficiency 91 (Typ.)% | ||
Minimum Temperature -40°C | ||
- COO (Country of Origin):
- TW
The TEN 40WIE is rounding out Traco Powers existing 40 Watt product range. Driven by current market trends this series was developed to maximize quality and cost efficiency in one product. Due to a new design approach the TEN 40WIE thus offers a cost efficient solution with not only no concession on quality or reliability but even improved specifications compared to its predecessor. It comes in a standard 2 x 1 metal package with a 4:1 input voltage range. High efficiencies of up to 93% allow for an operating temperature range (natural convection) of -40 to +70°C without power derating (model dependent). Equipped with additional features like remote on/off function and protection against short circuit, overvoltage and over temperature the TEN 40WIE series is suitable for many industrial applications.
