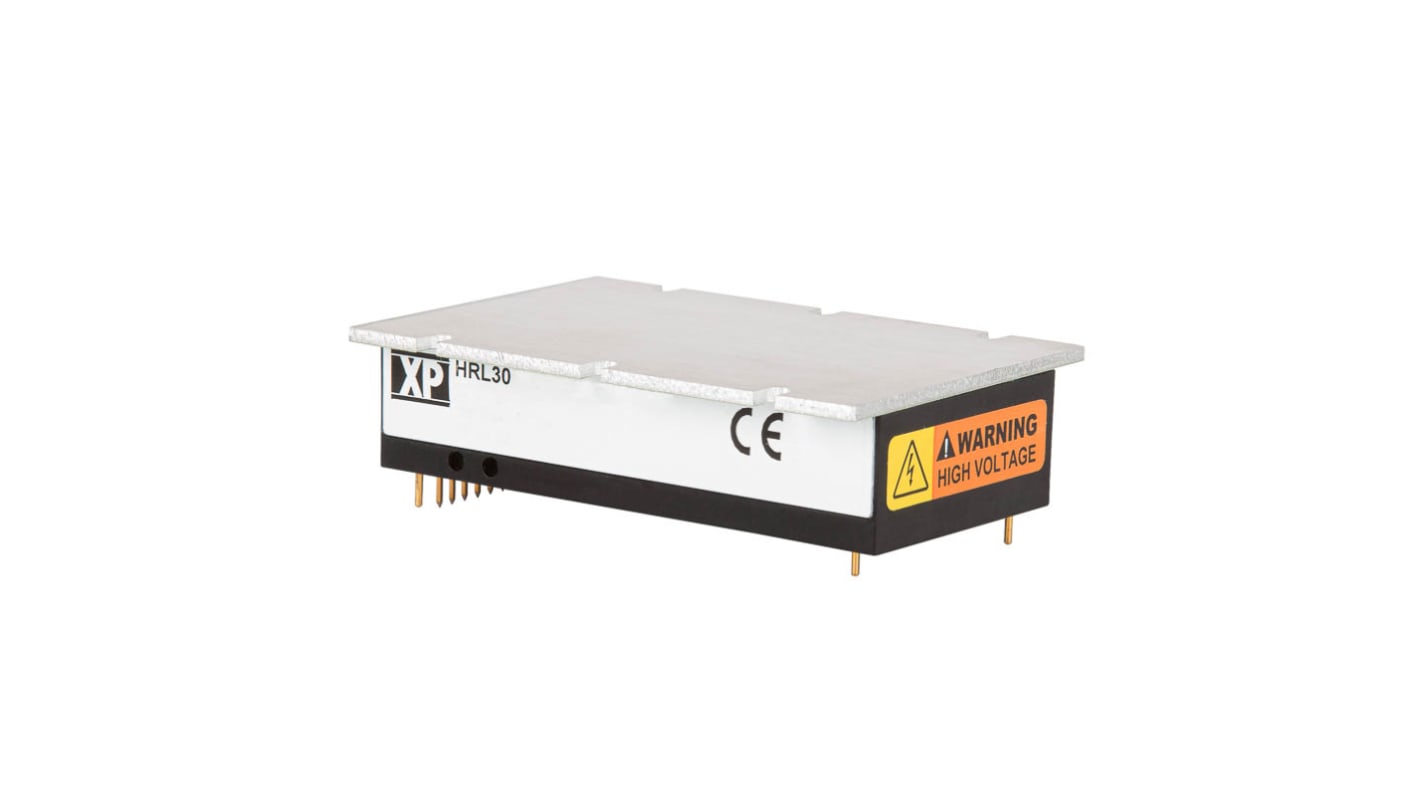

XP Power HRL30 DC-DC Converter, 0 → 1000V dc/ 30mA Output, 22 → 30 V dc Input, 30W, Through Hole, +70°C
- RS Stock No.:
- 189-5027
- Distrelec Article No.:
- 301-83-521
- Mfr. Part No.:
- HRL3024S1K0P
- Brand:
- XP Power
Bulk discount available
Subtotal (1 unit)*
£586.27
(exc. VAT)
£703.52
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 3 unit(s) shipping from 18 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £586.27 |
| 5 - 9 | £568.68 |
| 10 - 24 | £551.08 |
| 25 - 49 | £533.50 |
| 50 + | £515.92 |
*price indicative
- RS Stock No.:
- 189-5027
- Distrelec Article No.:
- 301-83-521
- Mfr. Part No.:
- HRL3024S1K0P
- Brand:
- XP Power
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Output Voltage | 0 → 1000V dc | |
| Input Voltage Range | 22 → 30 V dc | |
| Power Rating | 30W | |
| Input Voltage Nominal | 24 V dc | |
| Output Current | 30mA | |
| Mounting Type | Through Hole | |
| Isolated | No | |
| Number of Outputs | 1 | |
| Depth | 18.6mm | |
| Width | 50.8mm | |
| Length | 76.2mm | |
| Series | HRL30 | |
| Load Regulation | 0.0001 | |
| Efficiency | 85% | |
| Minimum Temperature | -40°C | |
| Maximum Temperature | +70°C | |
Select all | ||
|---|---|---|
Brand XP Power | ||
Output Voltage 0 → 1000V dc | ||
Input Voltage Range 22 → 30 V dc | ||
Power Rating 30W | ||
Input Voltage Nominal 24 V dc | ||
Output Current 30mA | ||
Mounting Type Through Hole | ||
Isolated No | ||
Number of Outputs 1 | ||
Depth 18.6mm | ||
Width 50.8mm | ||
Length 76.2mm | ||
Series HRL30 | ||
Load Regulation 0.0001 | ||
Efficiency 85% | ||
Minimum Temperature -40°C | ||
Maximum Temperature +70°C | ||
The HRL30 series, is a miniature 30W regulated high voltage DC-DC converter product line providing voltages up to 6kV. HRL30 offers both voltage and current mode controls and monitors. This product deploys a proprietary design topology which delivers accurate high voltage at higher efficiency with low EMI. This product has constant voltage and constant current operation with automatic crossover to current limiting mode preventing the delivered current from exceeding the programmed current level. It has digital compatible voltage and current monitors and controls to make it a convenient product for wide range of high voltage applications.
+24VDC Input [22 to 30V]
Output Voltage & Current Regulated
0 to 100% Programmable Voltage & Current
Voltage & Current Monitor Outputs
Operating Temperature: -40°C to +70°C
Short Circuit, Arc, and Overload Protections
On-board +5V Reference
Efficiency >80%
Low Ripple <0.05%
Premier Thermal Performance
Applications
Mass Spectrometry
Electrophoresis
E-beam/Ion Beam
Electrostatic Chuck
Capacitor Charging
Photo Multiplier Tube
Scanning Electron Microscopes
Output Voltage & Current Regulated
0 to 100% Programmable Voltage & Current
Voltage & Current Monitor Outputs
Operating Temperature: -40°C to +70°C
Short Circuit, Arc, and Overload Protections
On-board +5V Reference
Efficiency >80%
Low Ripple <0.05%
Premier Thermal Performance
Applications
Mass Spectrometry
Electrophoresis
E-beam/Ion Beam
Electrostatic Chuck
Capacitor Charging
Photo Multiplier Tube
Scanning Electron Microscopes
