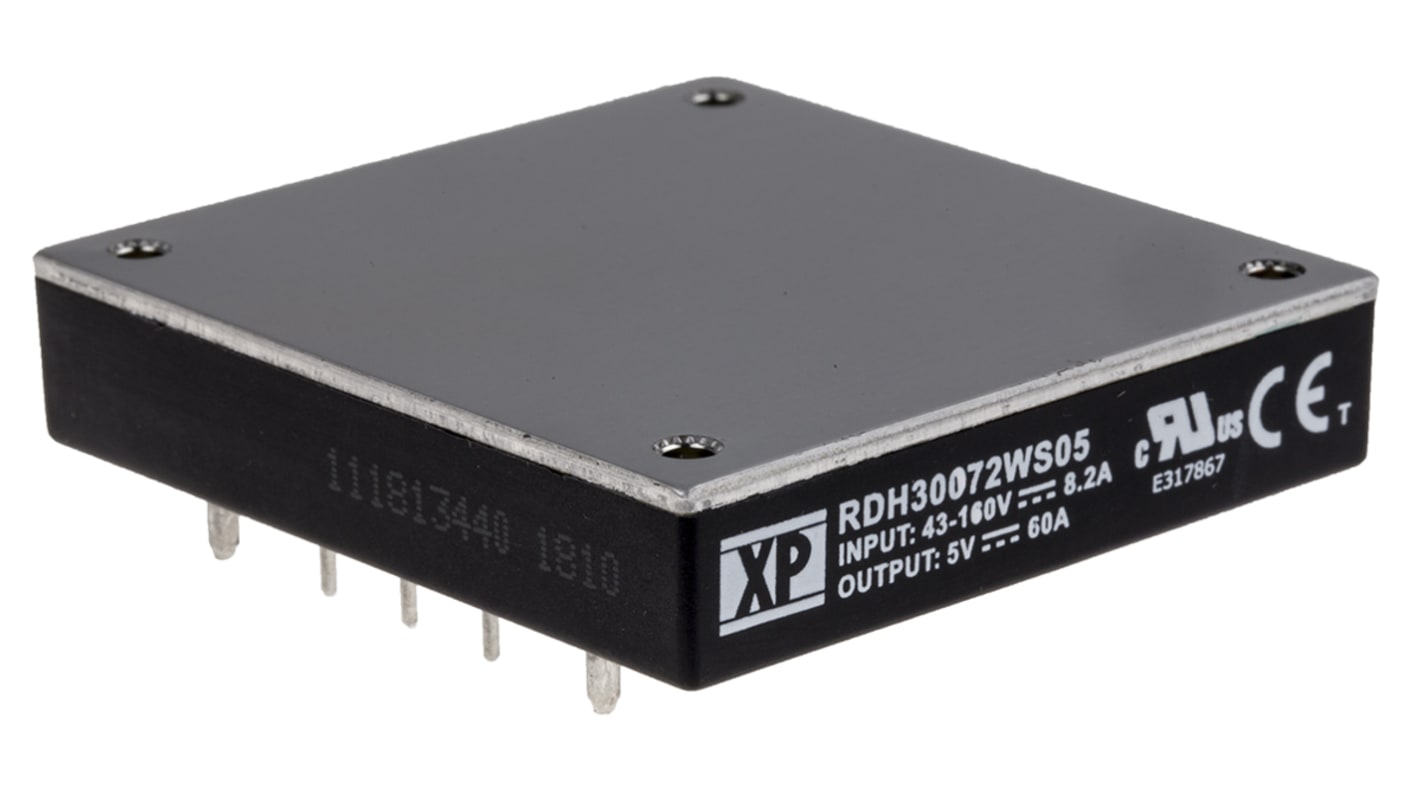

XP Power RDH300 DC/DC Converter, 5V dc/ 60 mA, 160V dc Input, 43V Input 300 W, Through Hole, 100 °C Max Temp -40 °C Min
- RS Stock No.:
- 172-3103
- Mfr. Part No.:
- RDH30072WS05
- Brand:
- XP Power
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£209.82
(exc. VAT)
£251.78
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 25 March 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £209.82 |
| 5 - 9 | £203.52 |
| 10 - 24 | £197.23 |
| 25 - 49 | £190.93 |
| 50 + | £184.64 |
*price indicative
- RS Stock No.:
- 172-3103
- Mfr. Part No.:
- RDH30072WS05
- Brand:
- XP Power
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Output Voltage 1 | 5V dc | |
| Product Type | DC/DC Converter | |
| Maximum Input Voltage | 160V dc | |
| Minimum Input Voltage | 43V | |
| Output Current 1 | 60mA | |
| Mount Type | Through Hole | |
| Input Ratio | 4:1 | |
| Number of Outputs | 1 | |
| Isolation Voltage | 3kV dc | |
| Maximum Output Power | 300W | |
| Package Type | SIP | |
| Depth | 12.7mm | |
| Standards/Approvals | No | |
| Series | RDH300 | |
| Length | 116.8mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 100°C | |
| Efficiency | 88% | |
| Select all | ||
|---|---|---|
Brand XP Power | ||
Output Voltage 1 5V dc | ||
Product Type DC/DC Converter | ||
Maximum Input Voltage 160V dc | ||
Minimum Input Voltage 43V | ||
Output Current 1 60mA | ||
Mount Type Through Hole | ||
Input Ratio 4:1 | ||
Number of Outputs 1 | ||
Isolation Voltage 3kV dc | ||
Maximum Output Power 300W | ||
Package Type SIP | ||
Depth 12.7mm | ||
Standards/Approvals No | ||
Series RDH300 | ||
Length 116.8mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 100°C | ||
Efficiency 88% | ||
- COO (Country of Origin):
- TW
Wide 4:1 Input Range
72 & 110 VDC Nominal Inputs for Rail Applications
Single Output
Industry Standard 1/2 Brick
-40 °C to +100 °C Operation
3000 VDC Isolation
Output Trim ±10%
Remote On/Off and Remote Sense
3 Year Warranty
