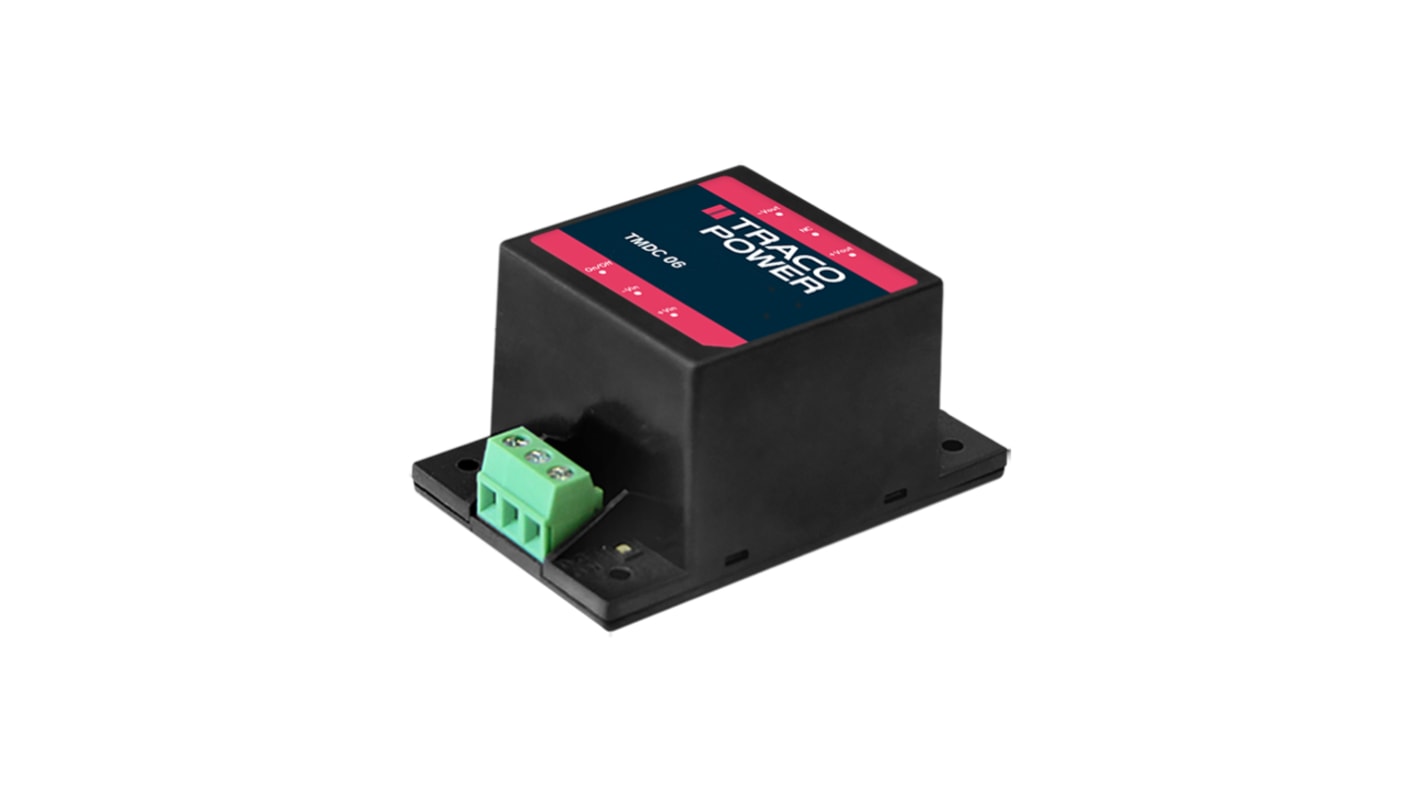

TRACOPOWER TMDC 06 DC-DC Converter, 24V dc/ 250mA Output, 18 → 75 V dc Input, 6W, Chassis Mount, +80°C Max Temp
- RS Stock No.:
- 187-4627
- Mfr. Part No.:
- TMDC 06-4815
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 unit)*
£37.40
(exc. VAT)
£44.88
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 15 unit(s) ready to ship
- Plus 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £37.40 |
5 - 9 | £36.28 |
10 - 24 | £35.15 |
25 - 49 | £33.66 |
50 + | £32.17 |
*price indicative
- RS Stock No.:
- 187-4627
- Mfr. Part No.:
- TMDC 06-4815
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TRACOPOWER | |
Output Voltage | 24V dc | |
Input Voltage Range | 18 → 75 V dc | |
Power Rating | 6W | |
Input Voltage Nominal | 48 V dc | |
Output Current | 250mA | |
Mounting Type | Chassis Mount | |
Isolated | Yes | |
Number of Outputs | 1 | |
Package | Encapsulated | |
Isolation Voltage | 3kV dc | |
Depth | 26.5mm | |
Width | 26mm | |
Length | 53mm | |
Railway Approved | No | |
Series | TMDC 06 | |
Load Regulation | 0.005 | |
Maximum Temperature | +80°C | |
Efficiency | 85% | |
Medical Approved | No | |
Minimum Temperature | -40°C | |
Standards Met | IEC/EN 62368-1 | |
Select all | ||
---|---|---|
Brand TRACOPOWER | ||
Output Voltage 24V dc | ||
Input Voltage Range 18 → 75 V dc | ||
Power Rating 6W | ||
Input Voltage Nominal 48 V dc | ||
Output Current 250mA | ||
Mounting Type Chassis Mount | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package Encapsulated | ||
Isolation Voltage 3kV dc | ||
Depth 26.5mm | ||
Width 26mm | ||
Length 53mm | ||
Railway Approved No | ||
Series TMDC 06 | ||
Load Regulation 0.005 | ||
Maximum Temperature +80°C | ||
Efficiency 85% | ||
Medical Approved No | ||
Minimum Temperature -40°C | ||
Standards Met IEC/EN 62368-1 | ||
- COO (Country of Origin):
- TW
TRACOPOWER TMDC 06 Series DC-DC Converter, 18 to 75V DC Input Voltage Range, 6W Power Rating - TMDC 06-4815
This DC-DC converter is intended for industrial use, delivering a steady output voltage of 24V dc. It has a compact plastic case with dimensions of 53mm in length, 34mm in width, and 26.5mm in depth. The device supports a wide input voltage range from 18V to 75V DC and is rated for 6W, suitable for a variety of applications.
Features & Benefits
• High efficiency with an 85% conversion rate
• Provides 3kV isolation for enhanced application safety
• Fully encapsulated for durability and protection
• Designed for chassis mount installation for ease of integration
• Supports a single output with a current capacity of 250mA
• Provides 3kV isolation for enhanced application safety
• Fully encapsulated for durability and protection
• Designed for chassis mount installation for ease of integration
• Supports a single output with a current capacity of 250mA
Applications
• Automation systems requiring stable power
• Telecommunications hardware
• Measurement and testing equipment
• Safety-critical devices
• Telecommunications hardware
• Measurement and testing equipment
• Safety-critical devices
Can it operate effectively in extreme temperatures?
Yes, it operates within -40°C to +80°C.
Will it provide the necessary isolation for sensitive applications?
Yes, it offers 3kV isolation.
Can it support varying input voltages?
Yes, it handles an input range of 18V to 75V.
