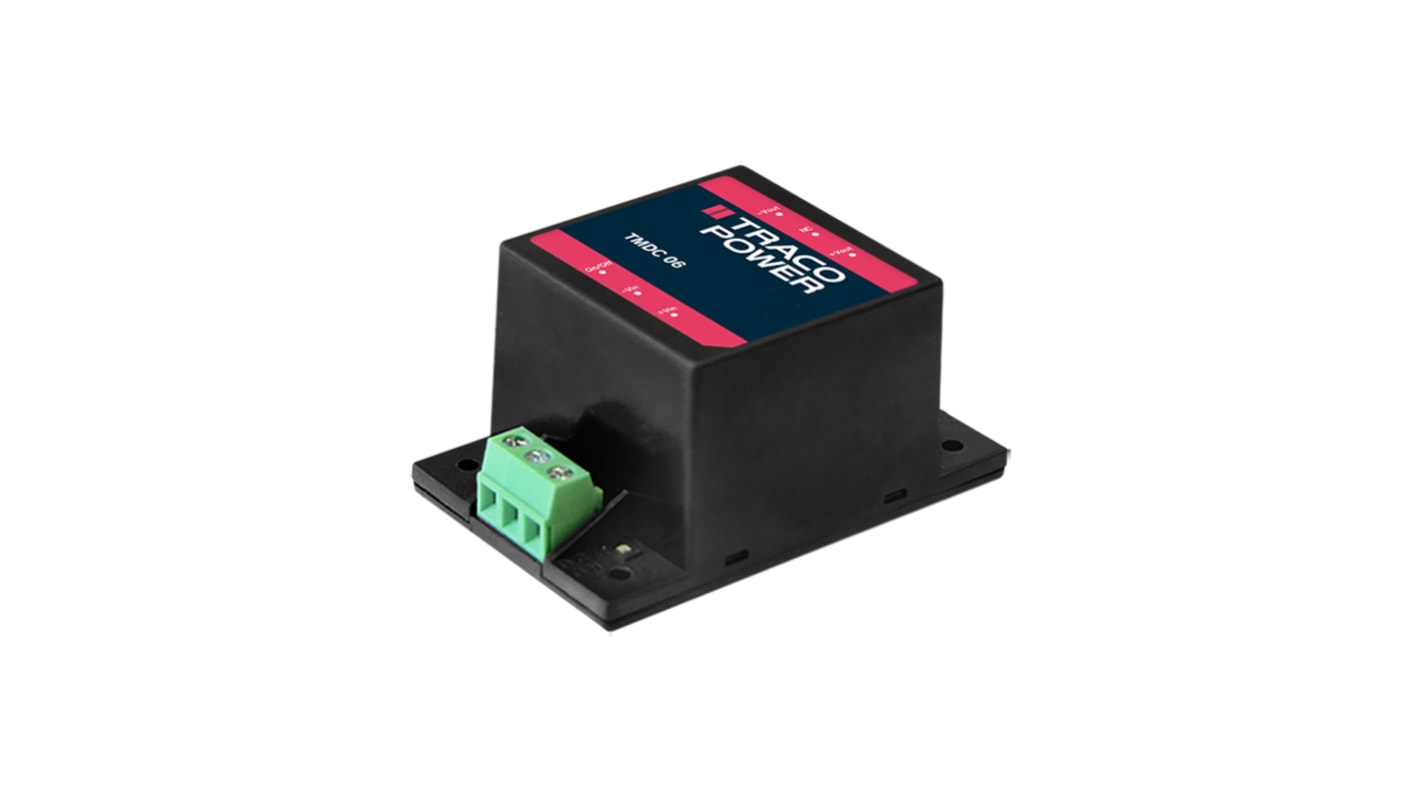

TRACOPOWER TMDC 06 DC-DC Converter, 12V dc/ 500mA Output, 18 → 75 V dc Input, 6W, Chassis Mount, +80°C Max Temp
- RS Stock No.:
- 187-4625
- Mfr. Part No.:
- TMDC 06-4812
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 unit)*
£35.74
(exc. VAT)
£42.89
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 15 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £35.74 |
| 5 - 9 | £34.67 |
| 10 - 24 | £33.60 |
| 25 - 49 | £32.17 |
| 50 + | £30.75 |
*price indicative
- RS Stock No.:
- 187-4625
- Mfr. Part No.:
- TMDC 06-4812
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 12V dc | |
| Input Voltage Range | 18 → 75 V dc | |
| Power Rating | 6W | |
| Input Voltage Nominal | 48 V dc | |
| Output Current | 500mA | |
| Mounting Type | Chassis Mount | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | Encapsulated | |
| Isolation Voltage | 3kV dc | |
| Width | 34mm | |
| Depth | 26.5mm | |
| Length | 53mm | |
| Series | TMDC 06 | |
| Load Regulation | 0.005 | |
| Standards Met | EN 62368-1 | |
| Efficiency | 84% | |
| Maximum Temperature | +80°C | |
| Minimum Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 12V dc | ||
Input Voltage Range 18 → 75 V dc | ||
Power Rating 6W | ||
Input Voltage Nominal 48 V dc | ||
Output Current 500mA | ||
Mounting Type Chassis Mount | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package Encapsulated | ||
Isolation Voltage 3kV dc | ||
Width 34mm | ||
Depth 26.5mm | ||
Length 53mm | ||
Series TMDC 06 | ||
Load Regulation 0.005 | ||
Standards Met EN 62368-1 | ||
Efficiency 84% | ||
Maximum Temperature +80°C | ||
Minimum Temperature -40°C | ||
- COO (Country of Origin):
- TW
Traco Power DC-DC Converter, 500mA Output Current, 84% Efficiency - TMDC 06 Series - TMDC 06-4812
Does your application rely on a balanced feed to stay on top form? Link it up to this DC-DC converter from Traco Power. The unit reliably changes inputs between 18 and 75V DC to a smooth and steady 12V DC output. Integrated filters ensure EN 55032 Class A resistance to electromagnetic and radio frequency disturbance, so you can bank on glitch-free performance. The compact device measures 53 (L) x 34 (W) x 26.5mm (D), making it an easy fit for small chassis or enclosures.
Features & Benefits
• Runs at 84% efficiency, so little energy goes to waste as heat
• 3kV DC isolation handles heavy-duty industrial applications
• Fully-encapsulated plastic housing for reliable performance in temperatures between -40°C and +80°C
• 6W power rating makes it an energy-efficient option
• 3kV DC isolation handles heavy-duty industrial applications
• Fully-encapsulated plastic housing for reliable performance in temperatures between -40°C and +80°C
• 6W power rating makes it an energy-efficient option
Applications
• Robotics systems
• Industrial control equipment
• Electric vehicles
• Consumer electronics
• Industrial control equipment
• Electric vehicles
• Consumer electronics
Can I operate this DC-DC converter remotely?
Yes, you can switch it on and off remotely from a control panel to streamline your operations.
How do I connect this converter?
The unit has screw terminals, so you simply insert the conductor in the relevant terminal and tighten the screw to secure it.
