TRACOPOWER TMDC 06 DC/DC Converter, 12V dc/, 36V dc Input 250 mA, 9V Input, Chassis Mount, 80 °C Max Temp -40 °C Min

View all DC-DC Converters
Bulk discount available

Subtotal (1 unit)*

£38.40

(exc. VAT)

£46.08

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later

Units
Per unit
1 - 4£38.40
5 - 9£37.23
10 - 24£36.09
25 - 49£34.56
50 +£33.01

*price indicative

RS Stock No.:
187-4620
Distrelec Article No.:
301-40-703
Mfr. Part No.:
TMDC 06-2422
Brand:
TRACOPOWER
Find similar products by selecting one or more attributes.
Select all

Brand

TRACOPOWER

Output Voltage 1

12V dc

Product Type

DC/DC Converter

Minimum Input Voltage

9V

Maximum Input Voltage

36V dc

Output Current 1

250mA

Output Current 2

250mA

Mount Type

Chassis Mount

Output Voltage 2

-12V dc

Number of Outputs

2

MTBF

4170000h

Input Ratio

1:6

Isolation Voltage

3kV dc

Number of Pins

6

Package Type

Encapsulated

Maximum Output Power

6W

Length

53mm

Depth

26.5mm

Standards/Approvals

No

Series

TMDC 06

Width

34mm

Minimum Operating Temperature

-40°C

Efficiency

84%

Maximum Operating Temperature

80°C

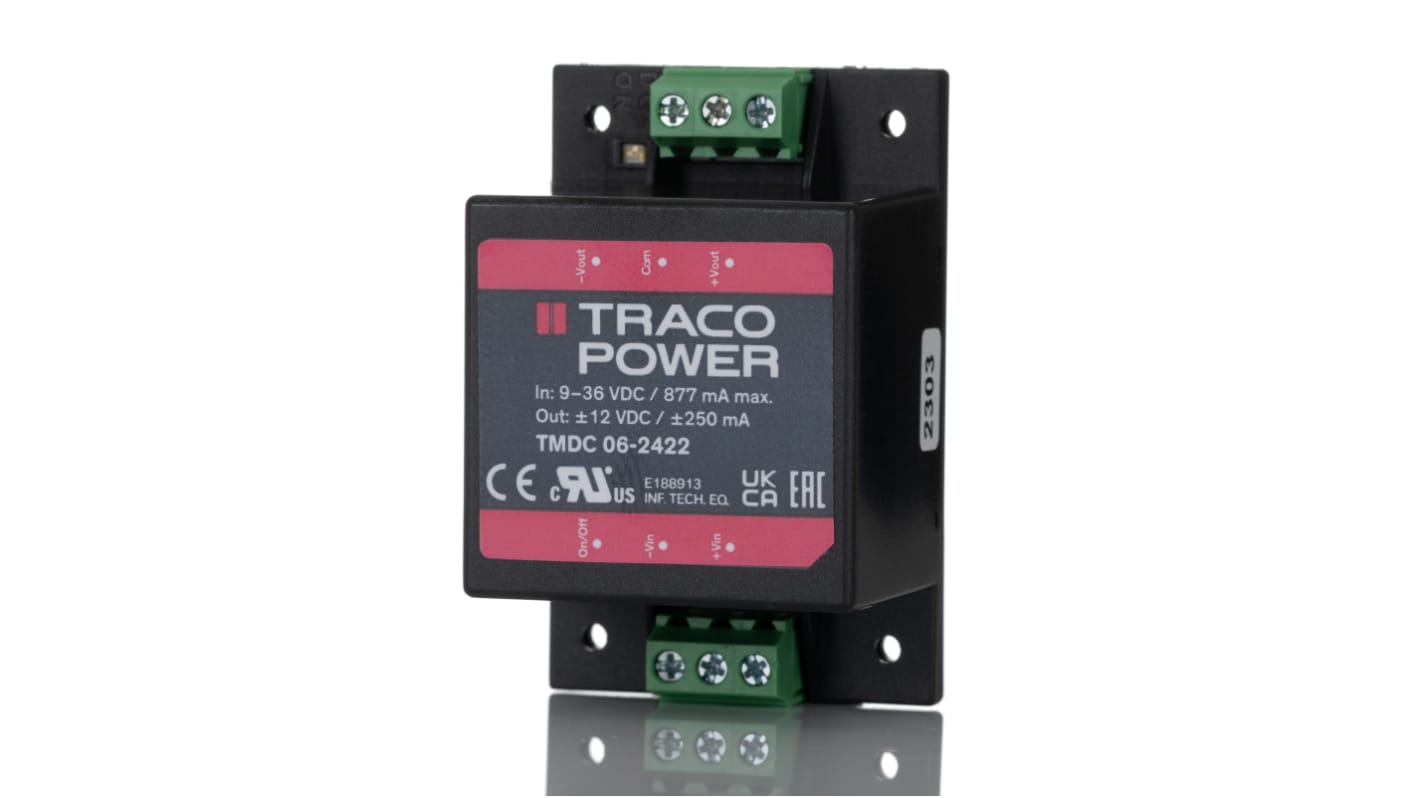

Traco Power DC-DC Converter, Dual Output, 84% Efficiency - TMDC 06 Series - TMDC 06-2422


Flip the switch on a reliable power supply with this DC-DC converter from Traco Power. It adjusts source voltages to a steady 12V DC output, bringing inputs into step with the needs of your equipment without the hassle of swapping components. By delivering loads that are accurate to ±2%, the unit takes care of the needs of sensitive downstream devices. A built-in EMI filter means it's equipped to turn down electrical noise in busy systems. Getting set up is a piece of cake, thanks to the converter's simple chassis mounting style.

Features & Benefits


• Wide input voltage range between 9 and 36V for versatility

• Remote on/off function for easy use in complex or large-scale applications

• Dual-output design to power a pair of circuits at once for efficient system coverage

• LED indicator clearly flags up load status, for quick performance checks

Applications


• Industrial automation

• Device chargers

• Electronics manufacturing

How do I restart this DC-DC converter after a power fault?


The product's short-circuit, overload and undervoltage protections automatically reboot it after an electrical issue, so you're spared the hassle of manual restarts.
