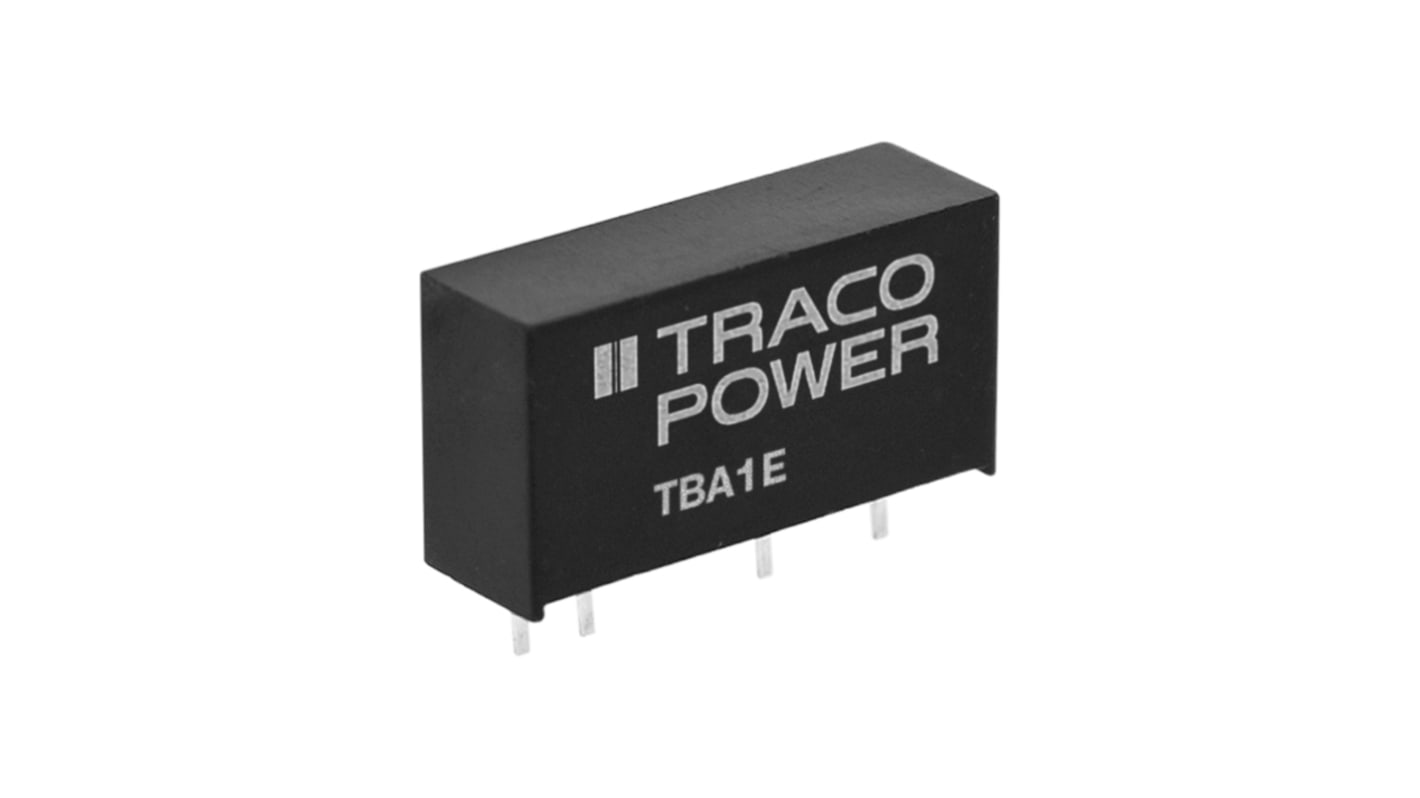

TRACOPOWER TBA 1E DC-DC Converter, ±12V dc/ ±41mA Output, 21.6 → 26.4 V dc Input, 1W, Through Hole, +85°C Max
- RS Stock No.:
- 187-3998
- Mfr. Part No.:
- TBA 1-2422E
- Brand:
- TRACOPOWER
Save 14% when you buy 50 units
Subtotal (1 tube of 10 units)*
£31.70
(exc. VAT)
£38.04
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 19 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £31.70 | £3.17 |
| 5 - 9 | £30.77 | £3.077 |
| 10 - 24 | £29.81 | £2.981 |
| 25 - 49 | £28.53 | £2.853 |
| 50 + | £27.26 | £2.726 |
*price indicative
- RS Stock No.:
- 187-3998
- Mfr. Part No.:
- TBA 1-2422E
- Brand:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | ±12V dc | |
| Input Voltage Range | 21.6 → 26.4 V dc | |
| Power Rating | 1W | |
| Input Voltage Nominal | 24 V dc | |
| Output Current | ±41mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 2 | |
| Package | SIP | |
| Isolation Voltage | 1.5kV dc | |
| Length | 19.5mm | |
| Width | 6mm | |
| Depth | 9.55mm | |
| Series | TBA 1E | |
| Load Regulation | 1 (Full Load)% | |
| Standards Met | EN 62368-1, IEC 62368-1 | |
| Efficiency | 82% | |
| Minimum Temperature | -40°C | |
| Maximum Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage ±12V dc | ||
Input Voltage Range 21.6 → 26.4 V dc | ||
Power Rating 1W | ||
Input Voltage Nominal 24 V dc | ||
Output Current ±41mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 2 | ||
Package SIP | ||
Isolation Voltage 1.5kV dc | ||
Length 19.5mm | ||
Width 6mm | ||
Depth 9.55mm | ||
Series TBA 1E | ||
Load Regulation 1 (Full Load)% | ||
Standards Met EN 62368-1, IEC 62368-1 | ||
Efficiency 82% | ||
Minimum Temperature -40°C | ||
Maximum Temperature +85°C | ||
