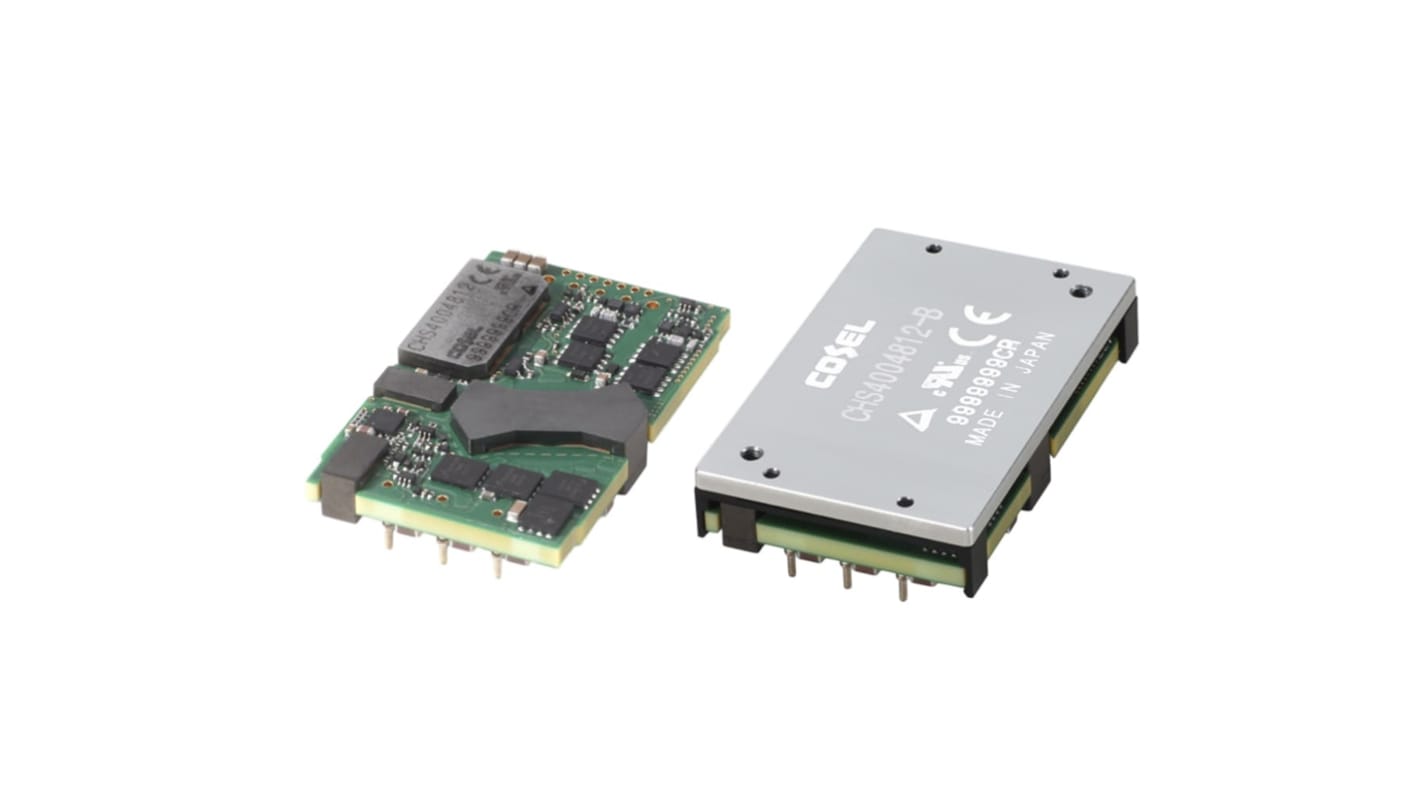

Cosel CHS DC-DC Converter, 24V dc/ 14.5A Output, 18 → 36 V dc Input, 348W, Through Hole, +85°C Max Temp -40°C
- RS Stock No.:
- 187-2710
- Mfr. Part No.:
- CHS4002424
- Brand:
- Cosel
Subtotal (1 unit)*
£80.58
(exc. VAT)
£96.70
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £80.58 |
*price indicative
- RS Stock No.:
- 187-2710
- Mfr. Part No.:
- CHS4002424
- Brand:
- Cosel
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Cosel | |
| Output Voltage | 24V dc | |
| Input Voltage Range | 18 → 36 V dc | |
| Power Rating | 348W | |
| Input Voltage Nominal | 24 V dc | |
| Output Current | 14.5A | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Output Voltage Adjustment Range | -20 %, +10% | |
| Package | DIP | |
| Isolation Voltage | 500V dc | |
| Depth | 36.8mm | |
| Width | 9.5mm | |
| Length | 58.4mm | |
| Series | CHS | |
| Load Regulation | 48mV | |
| Maximum Temperature | +85°C | |
| Standards Met | C-UL (CSA60950-1), EN60950-1, UL60950-1 | |
| Efficiency | 94% | |
| Minimum Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand Cosel | ||
Output Voltage 24V dc | ||
Input Voltage Range 18 → 36 V dc | ||
Power Rating 348W | ||
Input Voltage Nominal 24 V dc | ||
Output Current 14.5A | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Output Voltage Adjustment Range -20 %, +10% | ||
Package DIP | ||
Isolation Voltage 500V dc | ||
Depth 36.8mm | ||
Width 9.5mm | ||
Length 58.4mm | ||
Series CHS | ||
Load Regulation 48mV | ||
Maximum Temperature +85°C | ||
Standards Met C-UL (CSA60950-1), EN60950-1, UL60950-1 | ||
Efficiency 94% | ||
Minimum Temperature -40°C | ||
- COO (Country of Origin):
- JP
Compact DC-DC Converter, "BRICK SIZE" which has been standard size for industrial equipment Market
High density
High reliability: not built-in aluminium and tantalum electrolytic capacitor
Built-in overcurrent, overvoltage and thermal protection circuits
Built-in remote ON/OFF
High density
High reliability: not built-in aluminium and tantalum electrolytic capacitor
Built-in overcurrent, overvoltage and thermal protection circuits
Built-in remote ON/OFF
