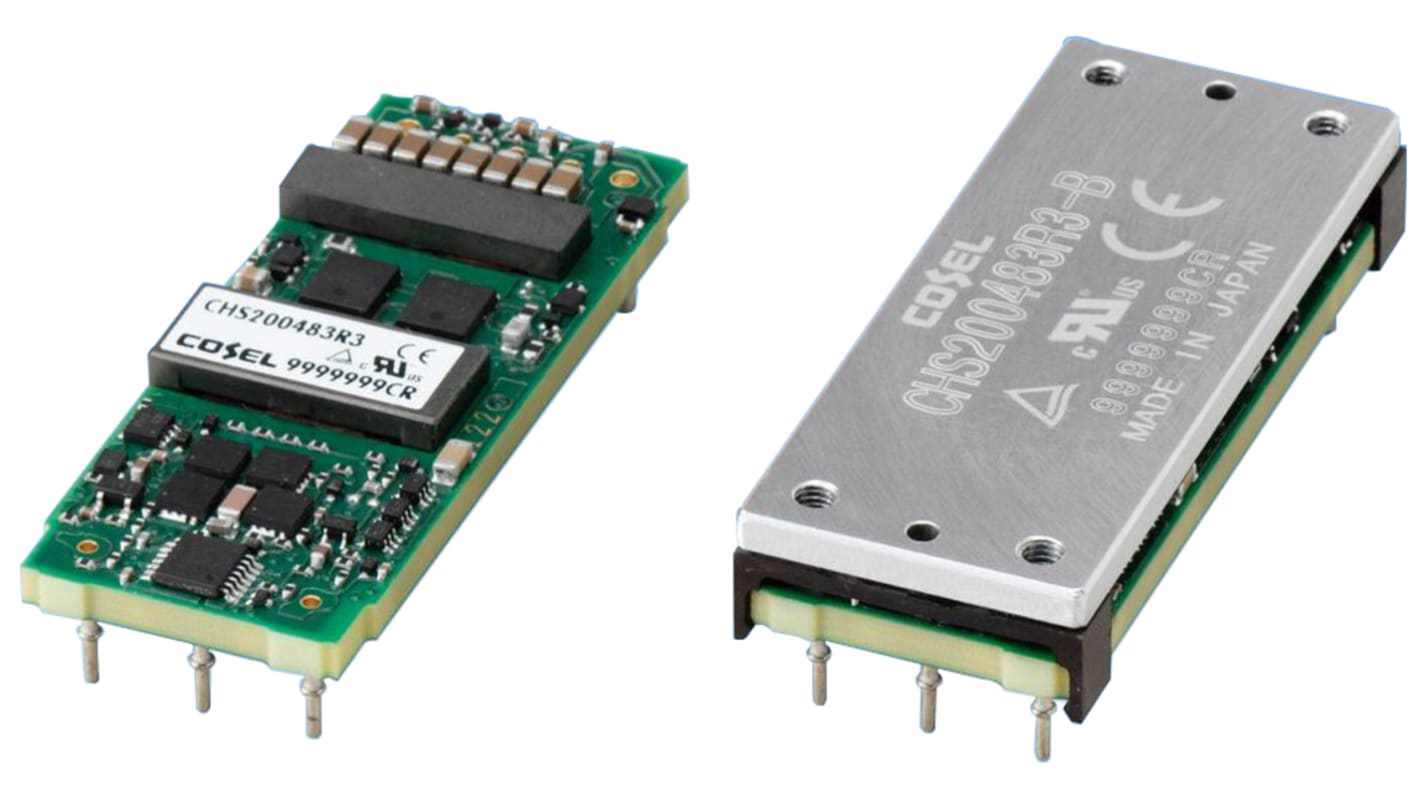

Cosel CHS DC/DC Converter, 48V dc/, 76V dc Input, 36V Input 200 W, PCB, 85 °C Max Temp 85 °C Min Temp, 8-Pin DIP
- RS Stock No.:
- 132-5400
- Mfr. Part No.:
- CHS2004805-B
- Brand:
- Cosel
Bulk discount available
Subtotal (1 unit)*
£96.85
(exc. VAT)
£116.22
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 14 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £96.85 |
| 5 - 9 | £93.94 |
| 10 - 24 | £92.01 |
| 25 - 49 | £90.07 |
| 50 + | £88.13 |
*price indicative
- RS Stock No.:
- 132-5400
- Mfr. Part No.:
- CHS2004805-B
- Brand:
- Cosel
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Cosel | |
| Output Voltage 1 | 48V dc | |
| Product Type | DC/DC Converter | |
| Minimum Input Voltage | 36V | |
| Maximum Input Voltage | 76V dc | |
| Mount Type | PCB | |
| Number of Outputs | 1 | |
| Output Voltage Adjustment Range | 20 % | |
| Ripple and Noise | 150mV Pk-Pk | |
| Number of Pins | 8 | |
| Isolation Voltage | 1kV ac | |
| Package Type | DIP | |
| Maximum Output Power | 200W | |
| Series | CHS | |
| Width | 22.26mm | |
| Standards/Approvals | CSA, EN, UL | |
| Weight | 45g | |
| Length | 58.4mm | |
| Depth | 10.5mm | |
| Minimum Operating Temperature | 85°C | |
| Efficiency | 94% | |
| Maximum Operating Temperature | 85°C | |
| Select all | ||
|---|---|---|
Brand Cosel | ||
Output Voltage 1 48V dc | ||
Product Type DC/DC Converter | ||
Minimum Input Voltage 36V | ||
Maximum Input Voltage 76V dc | ||
Mount Type PCB | ||
Number of Outputs 1 | ||
Output Voltage Adjustment Range 20 % | ||
Ripple and Noise 150mV Pk-Pk | ||
Number of Pins 8 | ||
Isolation Voltage 1kV ac | ||
Package Type DIP | ||
Maximum Output Power 200W | ||
Series CHS | ||
Width 22.26mm | ||
Standards/Approvals CSA, EN, UL | ||
Weight 45g | ||
Length 58.4mm | ||
Depth 10.5mm | ||
Minimum Operating Temperature 85°C | ||
Efficiency 94% | ||
Maximum Operating Temperature 85°C | ||
CHS Series
The CHS Series of DC-DC converters offer a wide range of power ratings and output voltages making them extremely versatile and suitable for many applications. Additional features include remote sensing, remote on/off, overcurrent and overvoltage protection.
5 Year Warranty
Features and Benefits
• Standard-size compact DC-DC Converter, "BRICK SIZE" for the Telecommunications Market
• High efficiency
• High density
• High reliability: no built-in aluminium and tantalum electrolytic capacitor
• Built-in remote On/Off
Cosel Isolated DC-DC Converters
