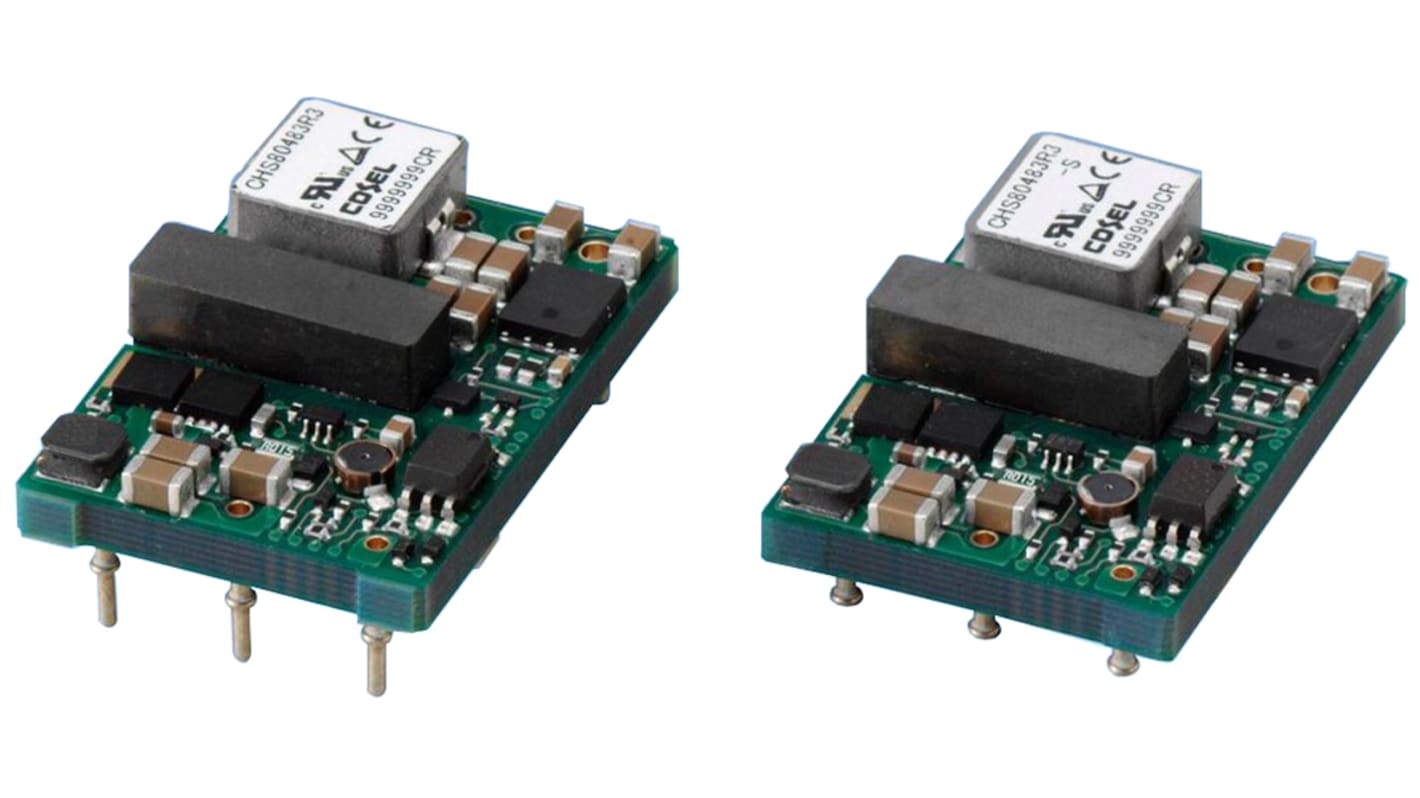

Cosel CHS DC-DC Converter, 3.3V dc/ 25A Output, 36 → 76 V dc Input, 82.5W, PCB Mount, +85°C Max Temp -40°C Min

RS Stock No.:: 132-5396
Mfr. Part No.:: CHS80483R3
Brand:: Cosel

Cosel CHS DC-DC Converter, 3.3V dc/ 25A Output, 36 → 76 V dc Input, 82.5W, PCB Mount, +85°C Max Temp -40°C Min

Available to back order for despatch 06/11/2024

Price Each

£55.00

(exc. VAT)

£66.00

(inc. VAT)

Units	Per unit
1 - 4	£55.00
5 - 9	£53.35
10 - 24	£52.25
25 - 49	£51.15
50 +	£50.05

RS Stock No.:: 132-5396
Mfr. Part No.:: CHS80483R3
Brand:: Cosel

Datasheet

Attribute	Value
Output Voltage	3.3V dc
Input Voltage Range	36 → 76 V dc
Power Rating	82.5W
Input Voltage Nominal	48 V dc
Output Current	25A
Mounting Type	PCB Mount
Isolated	Yes
Number of Outputs	1
Output Voltage Adjustment Range	-10/+15%
Package	DIP
Isolation Voltage	1 kV ac, 500V dc
Depth	10.5mm
Width	22.76mm
Length	33mm
Series	CHS
Load Regulation	±10mV
Standards Met	CE, cUL (CSA 60950-1), cULus Recognised, EN 60950-1, UL 60950-1
Maximum Temperature	+85°C
Efficiency	92%
Minimum Temperature	-40°C

Cosel CHS DC-DC Converter, 3.3V dc/ 25A Output, 36 → 76 V dc Input, 82.5W, PCB Mount, +85°C Max Temp -40°C Min

CHS Series

Features and Benefits
