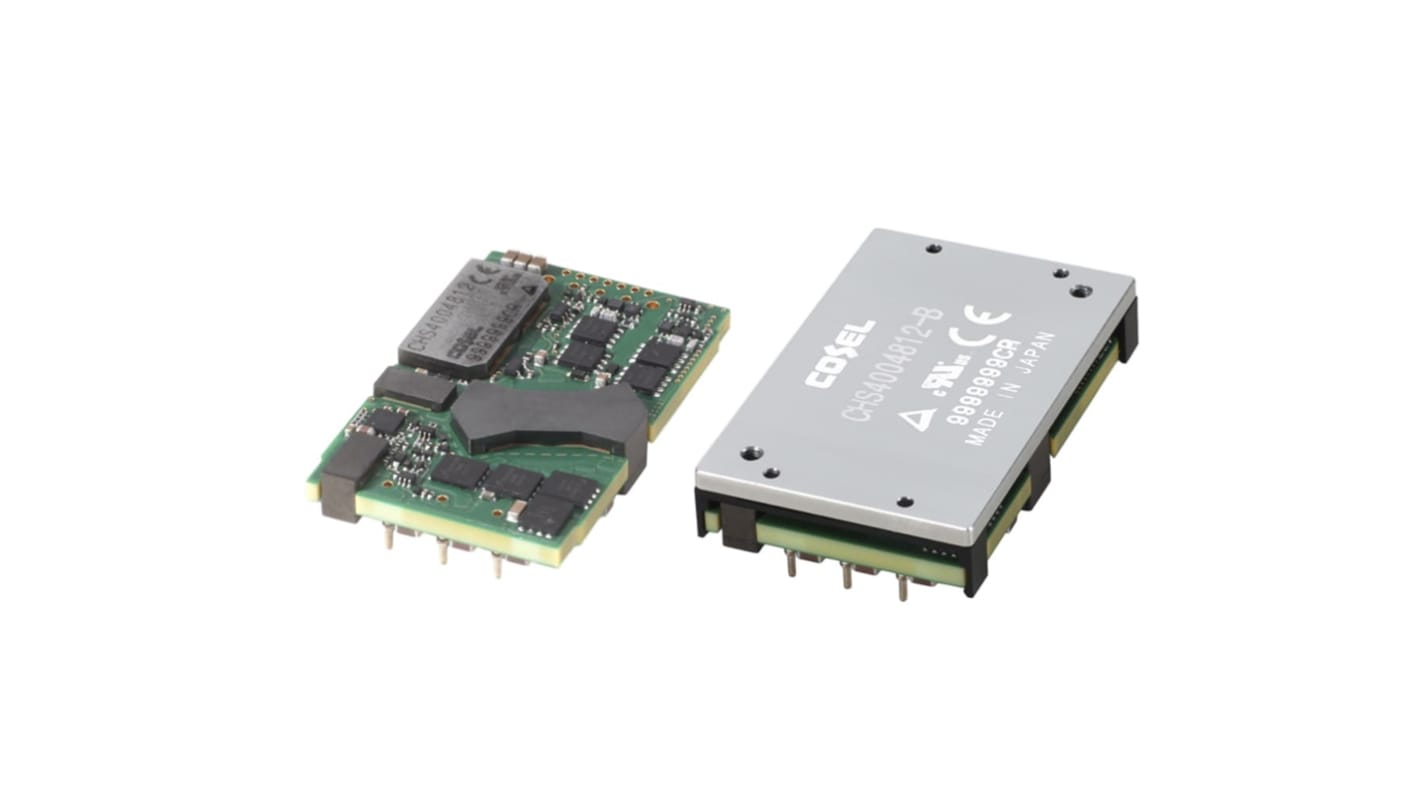

Cosel CHS DC-DC Converter, 15V dc/ 26.5A Output, 18 → 36 V dc Input, 397.5W, Through Hole, +85°C Max Temp -40°C
- RS Stock No.:
- 187-2709
- Mfr. Part No.:
- CHS4002415
- Brand:
- Cosel
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 187-2709
- Mfr. Part No.:
- CHS4002415
- Brand:
- Cosel
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
| Select all | Attribute | Value |
|---|---|---|
| Brand | Cosel | |
| Output Voltage | 15V dc | |
| Input Voltage Range | 18 → 36 V dc | |
| Power Rating | 397.5W | |
| Input Voltage Nominal | 24 V dc | |
| Output Current | 26.5A | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Output Voltage Adjustment Range | -20 %, +5% | |
| Package | DIP | |
| Isolation Voltage | 500V dc | |
| Depth | 36.8mm | |
| Length | 58.4mm | |
| Width | 9.5mm | |
| Series | CHS | |
| Load Regulation | 30mV | |
| Maximum Temperature | +85°C | |
| Efficiency | 94.5% | |
| Minimum Temperature | -40°C | |
| Standards Met | C-UL (CSA60950-1), EN60950-1, UL60950-1 | |
| Select all | ||
|---|---|---|
| Brand Cosel | ||
| Output Voltage 15V dc | ||
| Input Voltage Range 18 → 36 V dc | ||
| Power Rating 397.5W | ||
| Input Voltage Nominal 24 V dc | ||
| Output Current 26.5A | ||
| Mounting Type Through Hole | ||
| Isolated Yes | ||
| Number of Outputs 1 | ||
| Output Voltage Adjustment Range -20 %, +5% | ||
| Package DIP | ||
| Isolation Voltage 500V dc | ||
| Depth 36.8mm | ||
| Length 58.4mm | ||
| Width 9.5mm | ||
| Series CHS | ||
| Load Regulation 30mV | ||
| Maximum Temperature +85°C | ||
| Efficiency 94.5% | ||
| Minimum Temperature -40°C | ||
| Standards Met C-UL (CSA60950-1), EN60950-1, UL60950-1 | ||
- COO (Country of Origin):
- JP
Compact DC-DC Converter, "BRICK SIZE" which has been standard size for industrial equipment Market
High density
High reliability: not built-in aluminium and tantalum electrolytic capacitor
Built-in overcurrent, overvoltage and thermal protection circuits
Built-in remote ON/OFF
High density
High reliability: not built-in aluminium and tantalum electrolytic capacitor
Built-in overcurrent, overvoltage and thermal protection circuits
Built-in remote ON/OFF
