Recom RPM-2.0 DC-DC Converter, 3.3V dc/ 2A Output, 3 → 17 V dc Input, 3.3W, Surface Mount, +105°C Max Temp -40°C
- RS Stock No.:
- 183-4374
- Mfr. Part No.:
- RPM3.3-2.0-CT
- Brand:
- Recom
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 183-4374
- Mfr. Part No.:
- RPM3.3-2.0-CT
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Recom | |
Output Voltage | 3.3V dc | |
Input Voltage Range | 3 → 17 V dc | |
Power Rating | 3.3W | |
Input Voltage Nominal | 12 V dc | |
Output Current | 2A | |
Mounting Type | Surface Mount | |
Isolated | No | |
Number of Outputs | 1 | |
Width | 12.19mm | |
Depth | 3.75mm | |
Length | 12.19mm | |
Series | RPM-2.0 | |
Load Regulation | 0.03 | |
Efficiency | 90 → 98% | |
Minimum Temperature | -40°C | |
Maximum Temperature | +105°C | |
Select all | ||
---|---|---|
Brand Recom | ||
Output Voltage 3.3V dc | ||
Input Voltage Range 3 → 17 V dc | ||
Power Rating 3.3W | ||
Input Voltage Nominal 12 V dc | ||
Output Current 2A | ||
Mounting Type Surface Mount | ||
Isolated No | ||
Number of Outputs 1 | ||
Width 12.19mm | ||
Depth 3.75mm | ||
Length 12.19mm | ||
Series RPM-2.0 | ||
Load Regulation 0.03 | ||
Efficiency 90 → 98% | ||
Minimum Temperature -40°C | ||
Maximum Temperature +105°C | ||
- COO (Country of Origin):
- SK

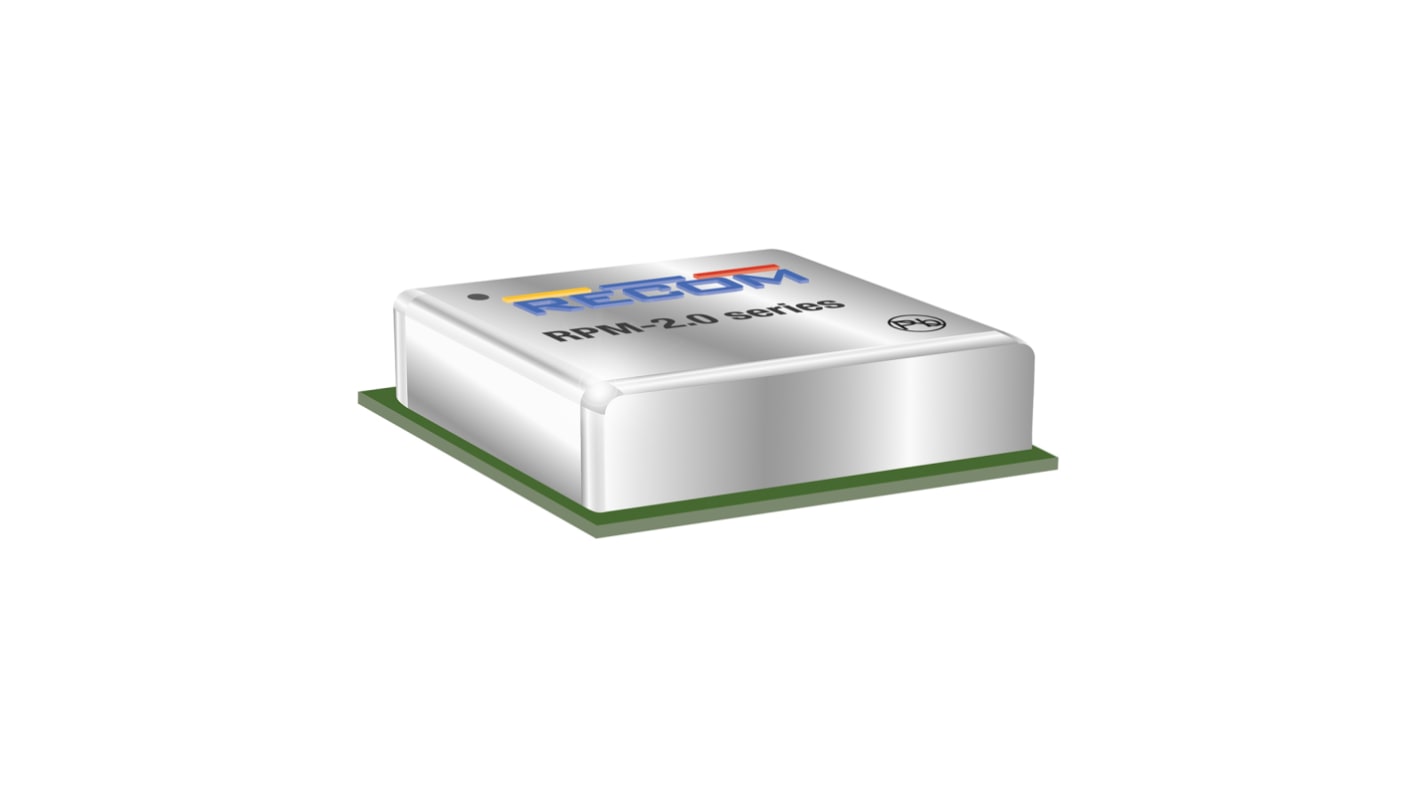

The RPM-2.0 series is a 2A non-isolated switching regulator power module with a full set of features including adjustable output, sequencing, soft-start control, on/off control and power good signals. The ultra-compact module has a profile of only 3.75mm, but with an efficiency of up to 98%, the device can operate at full load in ambient temperatures as high as +105°C without forced air cooling. The package is complete with 6-sided shielding for optimal EMC performance and excellent heat management.
High power density (L*W*H = 12.19*12.19*3.75)
Wide operating temperature -40°C to +105°C at full load
Efficiency up to 98%, no need for heatsinks
6-sided shielding
Thermally and EMI enhanced 25 pad LGA package
Compact DOSA-compatible footprint
Low profile
Wide operating temperature -40°C to +105°C at full load
Efficiency up to 98%, no need for heatsinks
6-sided shielding
Thermally and EMI enhanced 25 pad LGA package
Compact DOSA-compatible footprint
Low profile
