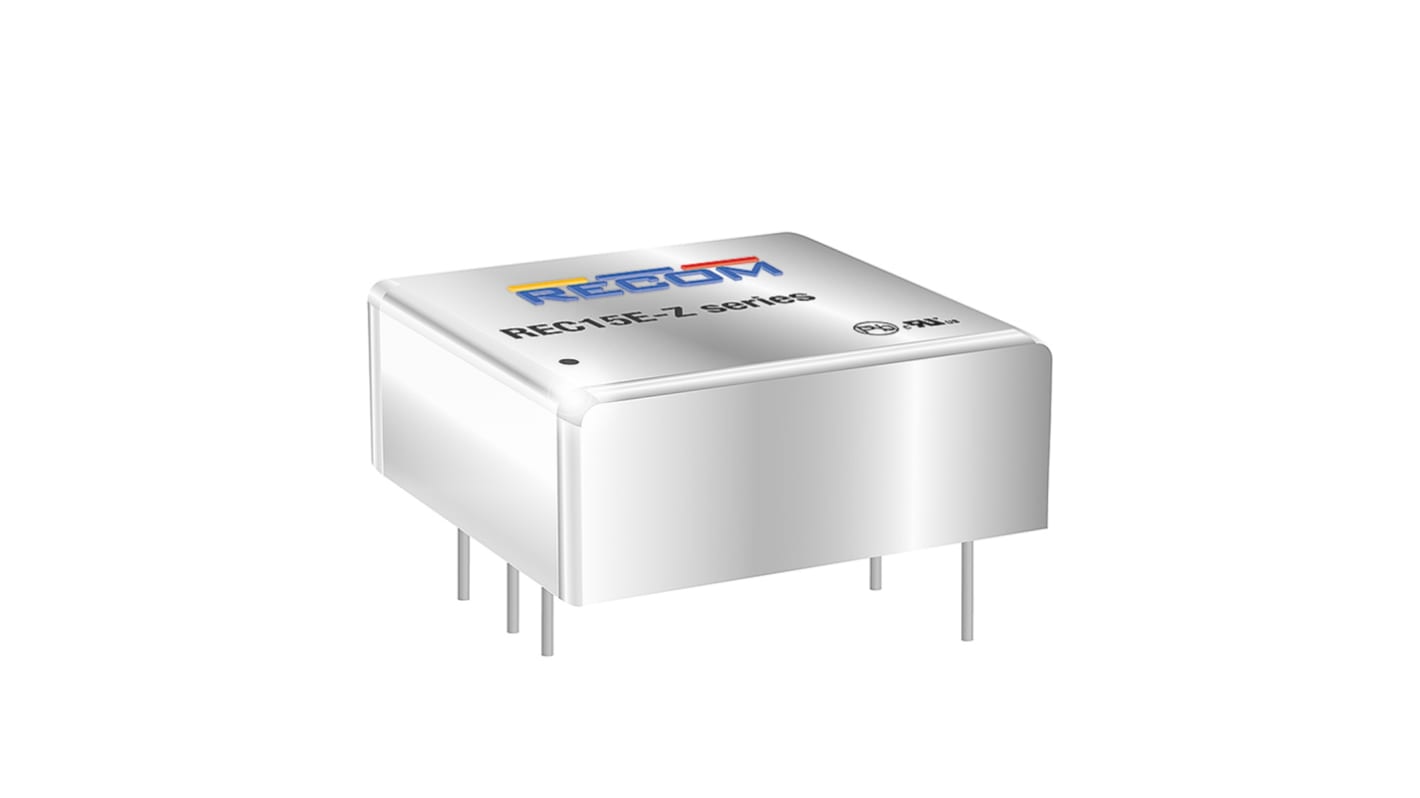

Recom REC15E-Z DC/DC Converter, 12V dc/ 1.25 A, 24V dc Input, 9V Input 15 W, Through Hole, 105 °C Max Temp -40 °C Min
- RS Stock No.:
- 180-9323
- Mfr. Part No.:
- REC15E-2412SZ
- Brand:
- Recom
Bulk discount available
Subtotal (1 unit)*
£21.61
(exc. VAT)
£25.93
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 8 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £21.61 |
| 5 - 9 | £20.97 |
| 10 - 24 | £20.32 |
| 25 - 49 | £19.67 |
| 50 + | £19.02 |
*price indicative
- RS Stock No.:
- 180-9323
- Mfr. Part No.:
- REC15E-2412SZ
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Output Voltage 1 | 12V dc | |
| Product Type | DC/DC Converter | |
| Minimum Input Voltage | 9V | |
| Maximum Input Voltage | 24V dc | |
| Output Current 1 | 1.25A | |
| Mount Type | Through Hole | |
| Input Ratio | 4:1 | |
| Number of Outputs | 1 | |
| MTBF | 1400000h | |
| Ripple and Noise | 100mV | |
| Number of Pins | 6 | |
| Isolation Voltage | 1.6kV dc | |
| Package Type | 1 x 1 in | |
| Maximum Output Power | 15W | |
| Depth | 10mm | |
| Width | 10mm | |
| Series | REC15E-Z | |
| Weight | 17g | |
| Standards/Approvals | cRUus, CAN, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN55032, EN61000-4-8, EN62368-1, IEC62368-1, UL62368-1, CSA C22.2 No. 62368-1-14 | |
| Length | 25.4mm | |
| Maximum Operating Temperature | 105°C | |
| Efficiency | 88.5% | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Output Voltage 1 12V dc | ||
Product Type DC/DC Converter | ||
Minimum Input Voltage 9V | ||
Maximum Input Voltage 24V dc | ||
Output Current 1 1.25A | ||
Mount Type Through Hole | ||
Input Ratio 4:1 | ||
Number of Outputs 1 | ||
MTBF 1400000h | ||
Ripple and Noise 100mV | ||
Number of Pins 6 | ||
Isolation Voltage 1.6kV dc | ||
Package Type 1 x 1 in | ||
Maximum Output Power 15W | ||
Depth 10mm | ||
Width 10mm | ||
Series REC15E-Z | ||
Weight 17g | ||
Standards/Approvals cRUus, CAN, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN55032, EN61000-4-8, EN62368-1, IEC62368-1, UL62368-1, CSA C22.2 No. 62368-1-14 | ||
Length 25.4mm | ||
Maximum Operating Temperature 105°C | ||
Efficiency 88.5% | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- TW
The REC15E-Z series are 4:1 wide input voltage range 15W power DC/DC converters in a 1”x1” case. Despite their low cost, the converters are fully specified devices with output currents up to 4 Amps, no minimum load, 1.6kVDC isolation, high efficiency and low ripple/noise figures. The inputs are protected against transients of up to 100V and allow the primary supply to start up safely. The single or dual outputs are continuously protected against short circuits and overload and can drive high capacitive loads. The REC15E-Z series will find many uses in cost sensitive applications where board space is at a premium.
4:1 wide input voltage range
Compact size 1“x1“ package
Efficiency up to 90%
Wide operating temperature from
-40°C to +75°C without derating
Continuous short circuit protection
