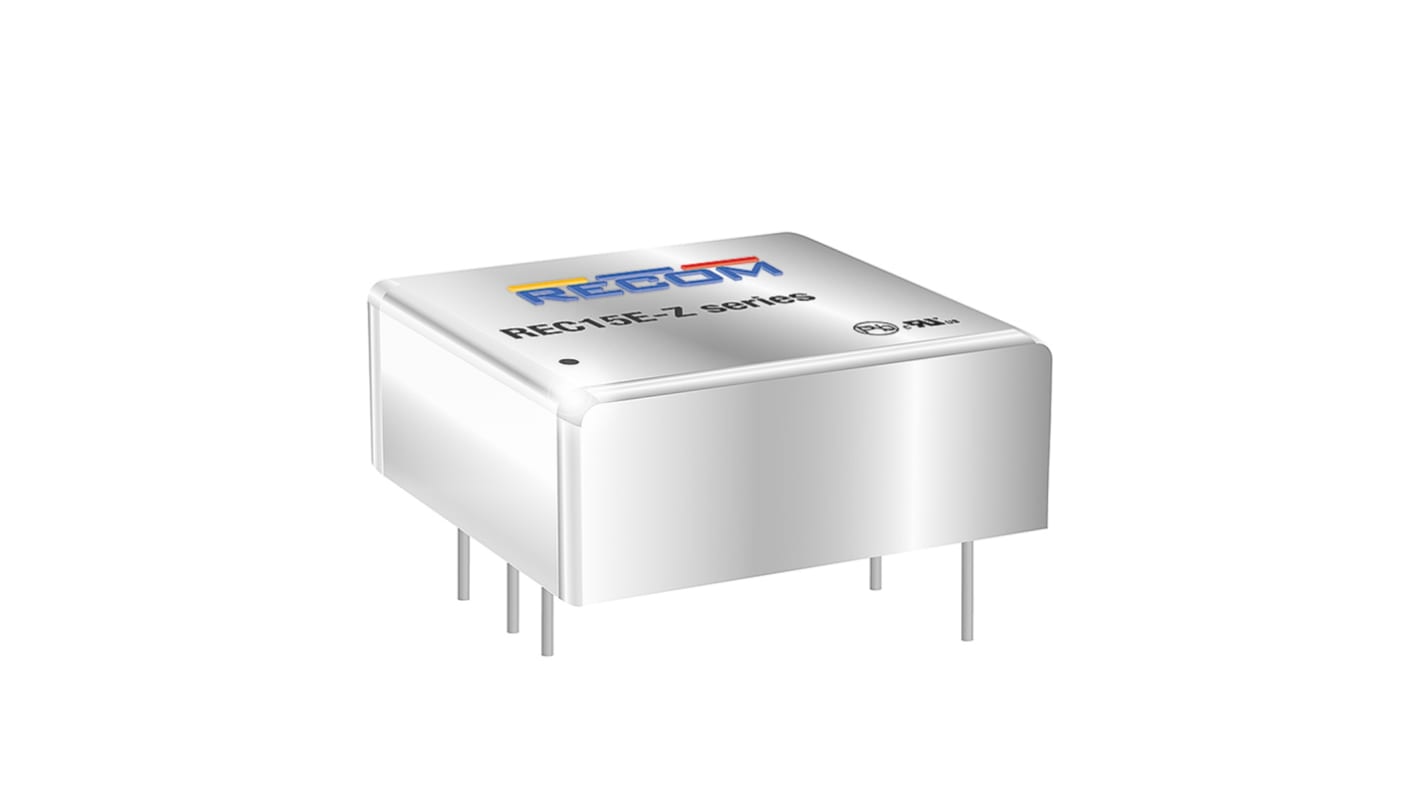

Recom REC15E-Z DC-DC Converter, 12V dc/ 1.25A Output, 9 → 36 V dc Input, 15W, Through Hole, +105°C Max Temp
- RS Stock No.:
- 180-9217
- Mfr. Part No.:
- REC15E-2412SZ
- Brand:
- Recom
Bulk discount available
Subtotal (1 tube of 8 units)*
£163.47
(exc. VAT)
£196.16
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 25 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £163.47 | £20.434 |
| 5 - 9 | £158.57 | £19.821 |
| 10 - 24 | £153.67 | £19.209 |
| 25 - 49 | £148.76 | £18.595 |
| 50 + | £143.85 | £17.981 |
*price indicative
- RS Stock No.:
- 180-9217
- Mfr. Part No.:
- REC15E-2412SZ
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Output Voltage | 12V dc | |
| Input Voltage Range | 9 → 36 V dc | |
| Power Rating | 15W | |
| Input Voltage Nominal | 24 V dc | |
| Output Current | 1.25A | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | 1 x 1 in | |
| Isolation Voltage | 1.6kV dc | |
| Width | 25.4mm | |
| Depth | 10mm | |
| Length | 25.4mm | |
| Series | REC15E-Z | |
| Load Regulation | 0.005 | |
| Maximum Temperature | +105°C | |
| Efficiency | 88.5% | |
| Minimum Temperature | -40°C | |
| Standards Met | CAN/CSA-C22.2 No. 62368-1-14, cRUus Recognized, EN55032, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN62368-1, IEC62368-1, UL62368-1 | |
Select all | ||
|---|---|---|
Brand Recom | ||
Output Voltage 12V dc | ||
Input Voltage Range 9 → 36 V dc | ||
Power Rating 15W | ||
Input Voltage Nominal 24 V dc | ||
Output Current 1.25A | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package 1 x 1 in | ||
Isolation Voltage 1.6kV dc | ||
Width 25.4mm | ||
Depth 10mm | ||
Length 25.4mm | ||
Series REC15E-Z | ||
Load Regulation 0.005 | ||
Maximum Temperature +105°C | ||
Efficiency 88.5% | ||
Minimum Temperature -40°C | ||
Standards Met CAN/CSA-C22.2 No. 62368-1-14, cRUus Recognized, EN55032, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN62368-1, IEC62368-1, UL62368-1 | ||
- COO (Country of Origin):
- TW
The REC15E-Z series are 4:1 wide input voltage range 15W power DC/DC converters in a 1”x1” case. Despite their low cost, the converters are fully specified devices with output currents up to 4 Amps, no minimum load, 1.6kVDC isolation, high efficiency and low ripple/noise figures. The inputs are protected against transients of up to 100V and allow the primary supply to start up safely. The single or dual outputs are continuously protected against short circuits and overload and can drive high capacitive loads. The REC15E-Z series will find many uses in cost sensitive applications where board space is at a premium.
4:1 wide input voltage range
Compact size 1“x1“ package
Efficiency up to 90%
Wide operating temperature from
-40°C to +75°C without derating
Continuous short circuit protection
Compact size 1“x1“ package
Efficiency up to 90%
Wide operating temperature from
-40°C to +75°C without derating
Continuous short circuit protection
