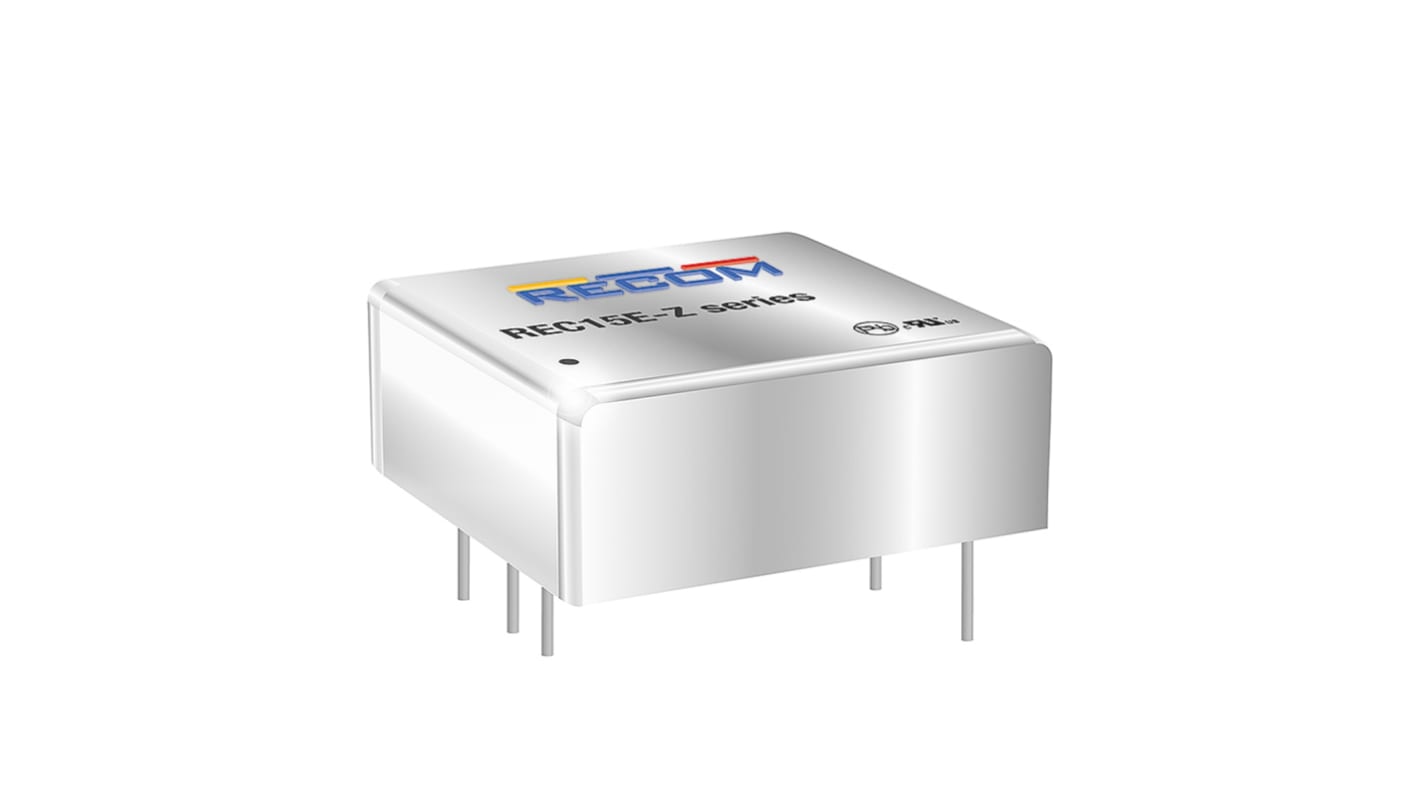

Recom REC15E-Z DC-DC Converter, 5V dc/ 3A Output, 9 → 36 V dc Input, 15W, Through Hole, +105°C Max Temp -40°C
- RS Stock No.:
- 180-9216
- Mfr. Part No.:
- REC15E-2405SZ
- Brand:
- Recom
Bulk discount available
Subtotal (1 tube of 8 units)*
£179.27
(exc. VAT)
£215.12
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 2 unit(s) shipping from 13 November 2025
- Plus 1 unit(s) shipping from 24 November 2025
- Plus 1 unit(s) shipping from 18 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £179.27 | £22.409 |
| 5 - 9 | £173.89 | £21.736 |
| 10 - 24 | £168.52 | £21.065 |
| 25 - 49 | £163.14 | £20.393 |
| 50 + | £157.77 | £19.721 |
*price indicative
- RS Stock No.:
- 180-9216
- Mfr. Part No.:
- REC15E-2405SZ
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Output Voltage | 5V dc | |
| Input Voltage Range | 9 → 36 V dc | |
| Power Rating | 15W | |
| Input Voltage Nominal | 24 V dc | |
| Output Current | 3A | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | 1 x 1 in | |
| Isolation Voltage | 1.6kV dc | |
| Width | 25.4mm | |
| Length | 25.4mm | |
| Depth | 10mm | |
| Series | REC15E-Z | |
| Load Regulation | 0.005 | |
| Standards Met | CAN/CSA-C22.2 No. 62368-1-14, cRUus Recognized, EN55032, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN62368-1, IEC62368-1, UL62368-1 | |
| Maximum Temperature | +105°C | |
| Efficiency | 88% | |
| Minimum Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Output Voltage 5V dc | ||
Input Voltage Range 9 → 36 V dc | ||
Power Rating 15W | ||
Input Voltage Nominal 24 V dc | ||
Output Current 3A | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package 1 x 1 in | ||
Isolation Voltage 1.6kV dc | ||
Width 25.4mm | ||
Length 25.4mm | ||
Depth 10mm | ||
Series REC15E-Z | ||
Load Regulation 0.005 | ||
Standards Met CAN/CSA-C22.2 No. 62368-1-14, cRUus Recognized, EN55032, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN62368-1, IEC62368-1, UL62368-1 | ||
Maximum Temperature +105°C | ||
Efficiency 88% | ||
Minimum Temperature -40°C | ||
- COO (Country of Origin):
- TW
RECOM DC-DC Converter, 88% Efficiency, 1.6kV DC Isolation Voltage - REC15E-Z Series - REC15E-2405SZ
Step down the voltage of a direct current source using this DC-DC converter from RECOM. The handy unit lets you easily match the power requirements of your devices, so you'll have less cause for trouble-shooting and downtime. Don't worry about overloading your system, as the converter offers constant protection against short-circuits and current overload. This helps to prevent equipment blow-outs, so cuts down on repair jobs. When board space is at a premium, this product, with its compact dimensions of 25.4 (L) x 25.4 (W) x 10mm (D), slips in neatly.
Features & Benefits
• EMC compatibility, so there's minimal risk of crosstalk or interference with nearby electronic goods
• Mean time between failures of over 1 million hours when operating at 25°C, for reliability throughout its extended service life
• Power output of 15W, to meet the needs of demanding systems
• Efficiency of 88%, meaning it loses minimal power during switching
• Mean time between failures of over 1 million hours when operating at 25°C, for reliability throughout its extended service life
• Power output of 15W, to meet the needs of demanding systems
• Efficiency of 88%, meaning it loses minimal power during switching
Applications
• Telecommunication centres
• Food and beverage manufacturing
• Multimedia devices
• Food and beverage manufacturing
• Multimedia devices
Does this converter's operating temperature affect its power output?
No, you can use this converter in a wide operating temperature range of -40°C to +75°C without worrying about it losing any of its power output.
