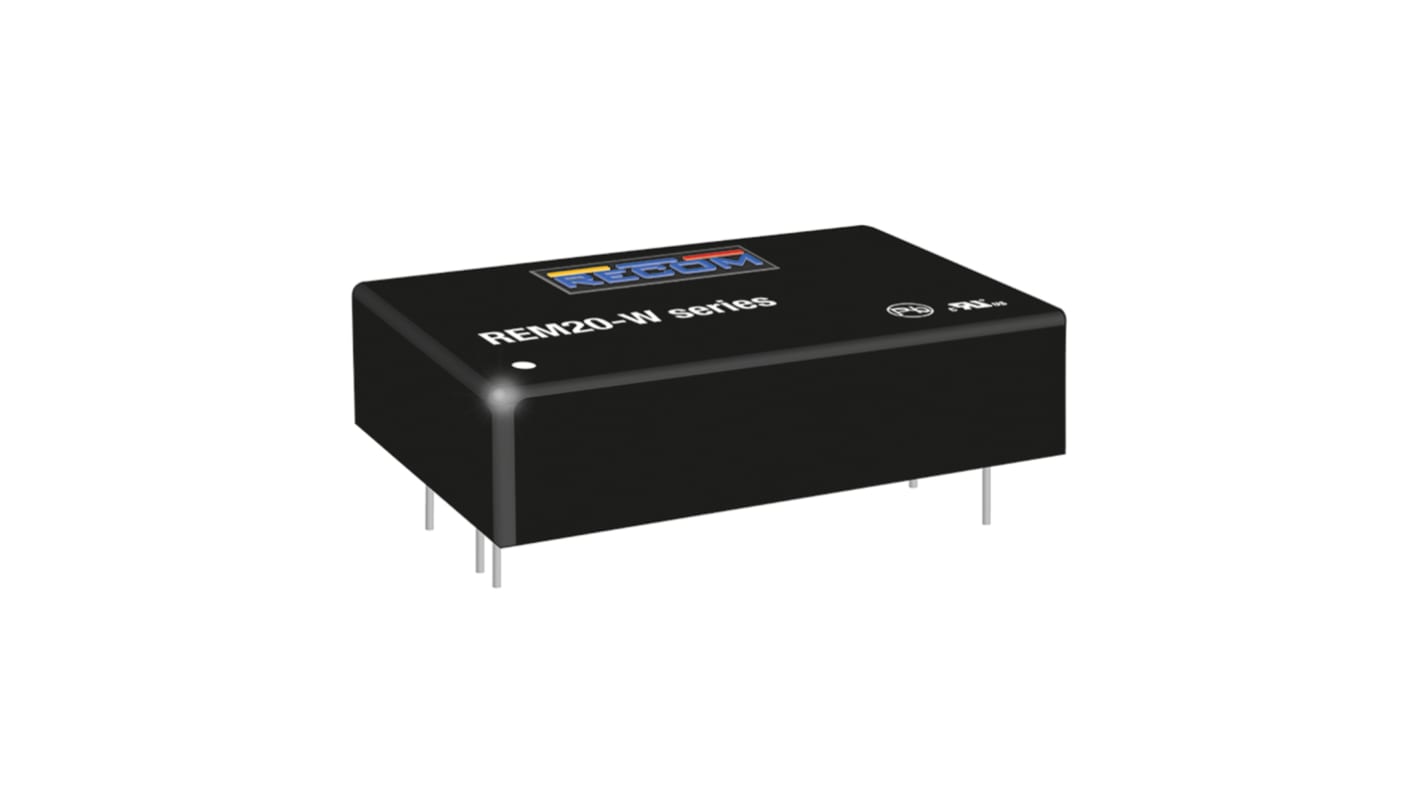

Recom REM20-W DC/DC Converter, 12V dc/ 1.66 A, 48V dc Input, 18V Input 20 W, Through Hole, 105 °C Max Temp -40 °C Min
- RS Stock No.:
- 180-9225
- Mfr. Part No.:
- REM20-4812SW
- Brand:
- Recom
Bulk discount available
Subtotal (1 tube of 10 units)*
£844.01
(exc. VAT)
£1,012.81
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 28 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £844.01 | £84.401 |
| 5 - 9 | £818.69 | £81.869 |
| 10 - 24 | £793.37 | £79.337 |
| 25 - 49 | £768.05 | £76.805 |
| 50 + | £742.73 | £74.273 |
*price indicative
- RS Stock No.:
- 180-9225
- Mfr. Part No.:
- REM20-4812SW
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Output Voltage 1 | 12V dc | |
| Product Type | DC/DC Converter | |
| Minimum Input Voltage | 18V | |
| Maximum Input Voltage | 48V dc | |
| Output Current 1 | 1.66A | |
| Mount Type | Through Hole | |
| Input Ratio | 4:1 | |
| Number of Outputs | 1 | |
| MTBF | 1700000h | |
| Ripple and Noise | 100mV | |
| Number of Pins | 6 | |
| Isolation Voltage | 5kV ac | |
| Package Type | 1.6 x 1 in | |
| Maximum Output Power | 20W | |
| Weight | 24g | |
| Standards/Approvals | UL62368-1, 2012, ANSI/AAMI ES60601-1 (2005/R2012 + A1:2012), CAN/CSA-C22.2 No. 60601-1:14, CAN/CSA-C22.2 No. 60950-1-07, CAN/CSA-C22.2 No. 62368-1, cRUus E314885, E196683, IEC60601-1:2005, UL60950-1 | |
| Length | 40.6mm | |
| Depth | 10.2mm | |
| Series | REM20-W | |
| Width | 25.4mm | |
| Maximum Operating Temperature | 105°C | |
| Minimum Operating Temperature | -40°C | |
| Efficiency | 88% | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Output Voltage 1 12V dc | ||
Product Type DC/DC Converter | ||
Minimum Input Voltage 18V | ||
Maximum Input Voltage 48V dc | ||
Output Current 1 1.66A | ||
Mount Type Through Hole | ||
Input Ratio 4:1 | ||
Number of Outputs 1 | ||
MTBF 1700000h | ||
Ripple and Noise 100mV | ||
Number of Pins 6 | ||
Isolation Voltage 5kV ac | ||
Package Type 1.6 x 1 in | ||
Maximum Output Power 20W | ||
Weight 24g | ||
Standards/Approvals UL62368-1, 2012, ANSI/AAMI ES60601-1 (2005/R2012 + A1:2012), CAN/CSA-C22.2 No. 60601-1:14, CAN/CSA-C22.2 No. 60950-1-07, CAN/CSA-C22.2 No. 62368-1, cRUus E314885, E196683, IEC60601-1:2005, UL60950-1 | ||
Length 40.6mm | ||
Depth 10.2mm | ||
Series REM20-W | ||
Width 25.4mm | ||
Maximum Operating Temperature 105°C | ||
Minimum Operating Temperature -40°C | ||
Efficiency 88% | ||
- COO (Country of Origin):
- TW
The REM20-W series of DC/DC converters features reinforced 5kVAC/1 minute isolation with low 2μA leakage (B, BF and CF compatible) for 250VAC continuous working voltage isolation. The 1.6”x1” package offers single and dual outputs, with low output ripple and zero-load operation. The outputs are also short circuit and overload protected.
Reinforced insulation for 250VAC working voltage
Clearance and creepage distance >8.0mm
5kVAC I/P to O/P 2MOPP isolation
2μA patient leakage current
Industry standard pinout
4:1 wide input range
