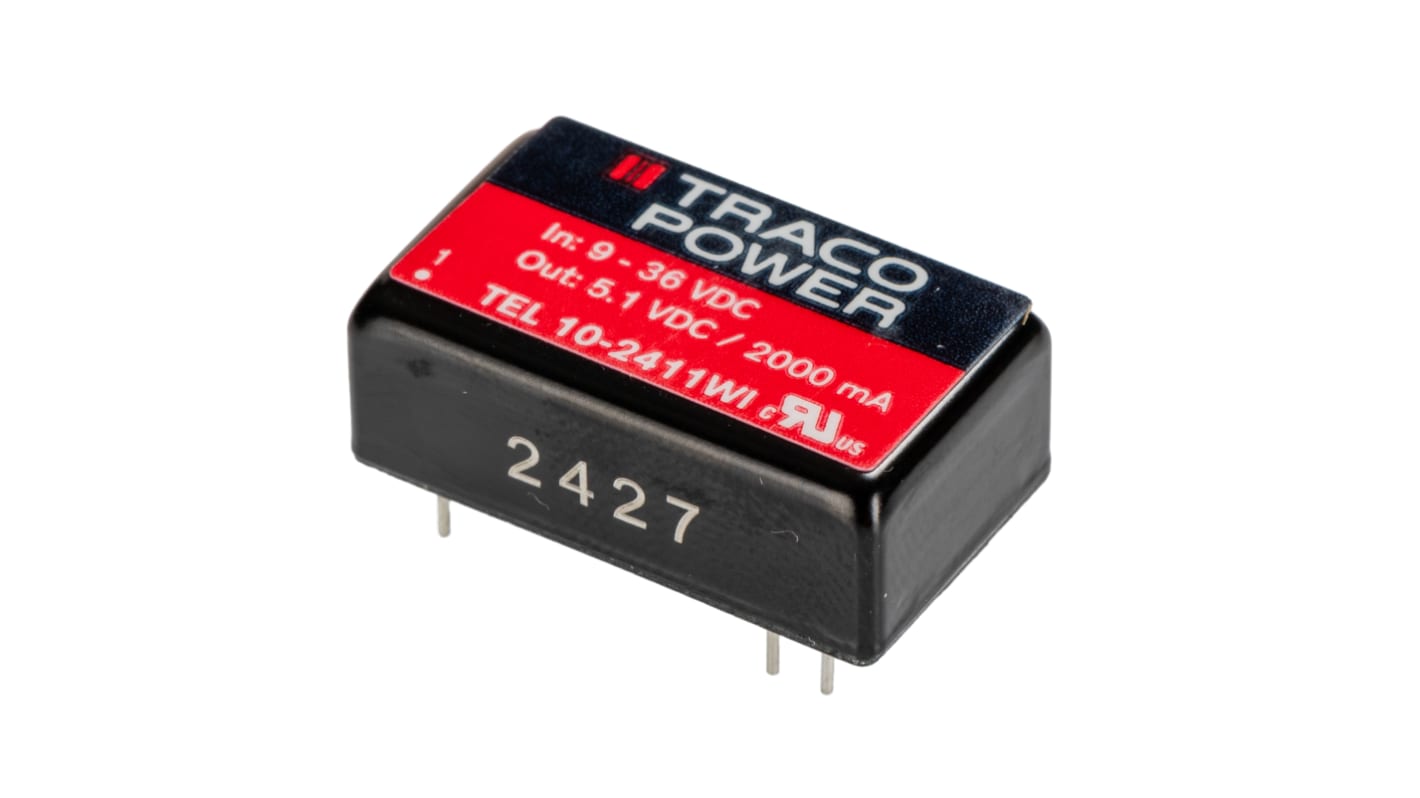

TRACOPOWER TEL 10WI DC/DC Converter, 5.1V/ 2 A, 36V Input, 9V Input 10 W, PCB, 88 °C Max Temp -40 °C Min Temp DIP-16
- RS Stock No.:
- 176-4575
- Distrelec Article No.:
- 301-40-619
- Mfr. Part No.:
- TEL 10-2411WI
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 unit)*
£24.82
(exc. VAT)
£29.78
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 27 unit(s) shipping from 27 April 2026
- Plus 9 unit(s) shipping from 04 May 2026
- Plus 10 unit(s) shipping from 27 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £24.82 |
| 5 - 9 | £24.06 |
| 10 - 24 | £23.31 |
| 25 - 49 | £22.32 |
| 50 + | £21.33 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 176-4575
- Distrelec Article No.:
- 301-40-619
- Mfr. Part No.:
- TEL 10-2411WI
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage 1 | 5.1V | |
| Product Type | DC/DC Converter | |
| Minimum Input Voltage | 9V | |
| Maximum Input Voltage | 36V | |
| Output Current 1 | 2A | |
| Mount Type | PCB | |
| Input Ratio | 4:1 | |
| Number of Outputs | 1 | |
| MTBF | 2540000h | |
| Isolation Voltage | 1kV | |
| Package Type | DIP-16 | |
| Maximum Output Power | 10W | |
| Length | 23.8mm | |
| Width | 13.7mm | |
| Standards/Approvals | No | |
| Series | TEL 10WI | |
| Depth | 8mm | |
| Better World Claim | Concentrated or Compact Solution | |
| Better World Product | Yes | |
| Minimum Operating Temperature | -40°C | |
| Efficiency | 83% | |
| Maximum Operating Temperature | 88°C | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 1 5.1V | ||
Product Type DC/DC Converter | ||
Minimum Input Voltage 9V | ||
Maximum Input Voltage 36V | ||
Output Current 1 2A | ||
Mount Type PCB | ||
Input Ratio 4:1 | ||
Number of Outputs 1 | ||
MTBF 2540000h | ||
Isolation Voltage 1kV | ||
Package Type DIP-16 | ||
Maximum Output Power 10W | ||
Length 23.8mm | ||
Width 13.7mm | ||
Standards/Approvals No | ||
Series TEL 10WI | ||
Depth 8mm | ||
Better World Claim Concentrated or Compact Solution | ||
Better World Product Yes | ||
Minimum Operating Temperature -40°C | ||
Efficiency 83% | ||
Maximum Operating Temperature 88°C | ||
- COO (Country of Origin):
- TW
The TEL 10WI series is a range of isolated 10 Watt converters which come in a ultra compact DIP-16 metal package. The design purpose of these series was to miniaturized low power DC/DC converters to the maximum without sacrificing high efficiency. The TEL 10WI series sets the new standard for power density with 3.83 W/cm3.The TEL 10WI series offer an ultra wide 4:1 input voltage range and feature a high efficiency of up to 86% which enables an operation temperature of up to +70°C at full load and up to 88°C with 50% load.
Most compact 10 Watt converter in DIP-16 metal casing
Highest power density of 3.83 W/cm3
6-side shielded metal case with insulated base plate
Ultra wide 4:1 input voltage range
High efficiency for low thermal loss
Operating temperature range of -40°C to +88°C
Built-in filter
Current limitation and protection against short circuit
