TRACOPOWER TEL 10WI DC/DC Converter, 24V dc/ 416 mA, 36V dc Input, 9V Input 10 W, PCB, 88 °C Max Temp -40 °C Min Temp

View all DC-DC Converters
Bulk discount available

Subtotal (1 unit)*

£25.26

(exc. VAT)

£30.31

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later

Units
Per unit
1 - 4£25.26
5 - 9£24.50
10 - 24£23.75
25 - 49£22.75
50 +£21.73

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:
176-4549
Distrelec Article No.:
301-40-632
Mfr. Part No.:
TEL 10-2415WI
Brand:
TRACOPOWER
Find similar products by selecting one or more attributes.
Select all

Brand

TRACOPOWER

Output Voltage 1

24V dc

Product Type

DC/DC Converter

Minimum Input Voltage

9V

Maximum Input Voltage

36V dc

Output Current 1

416mA

Mount Type

PCB

Input Ratio

4:1

Number of Outputs

1

MTBF

2540000h

Isolation Voltage

1.5kV dc

Maximum Output Power

10W

Package Type

DIP-16

Depth

8mm

Series

TEL 10WI

Width

13.7mm

Standards/Approvals

No

Length

23.8mm

Better World Claim

Concentrated or Compact Solution

Better World Product

Yes

Maximum Operating Temperature

88°C

Minimum Operating Temperature

-40°C

Efficiency

88%

COO (Country of Origin):
TW

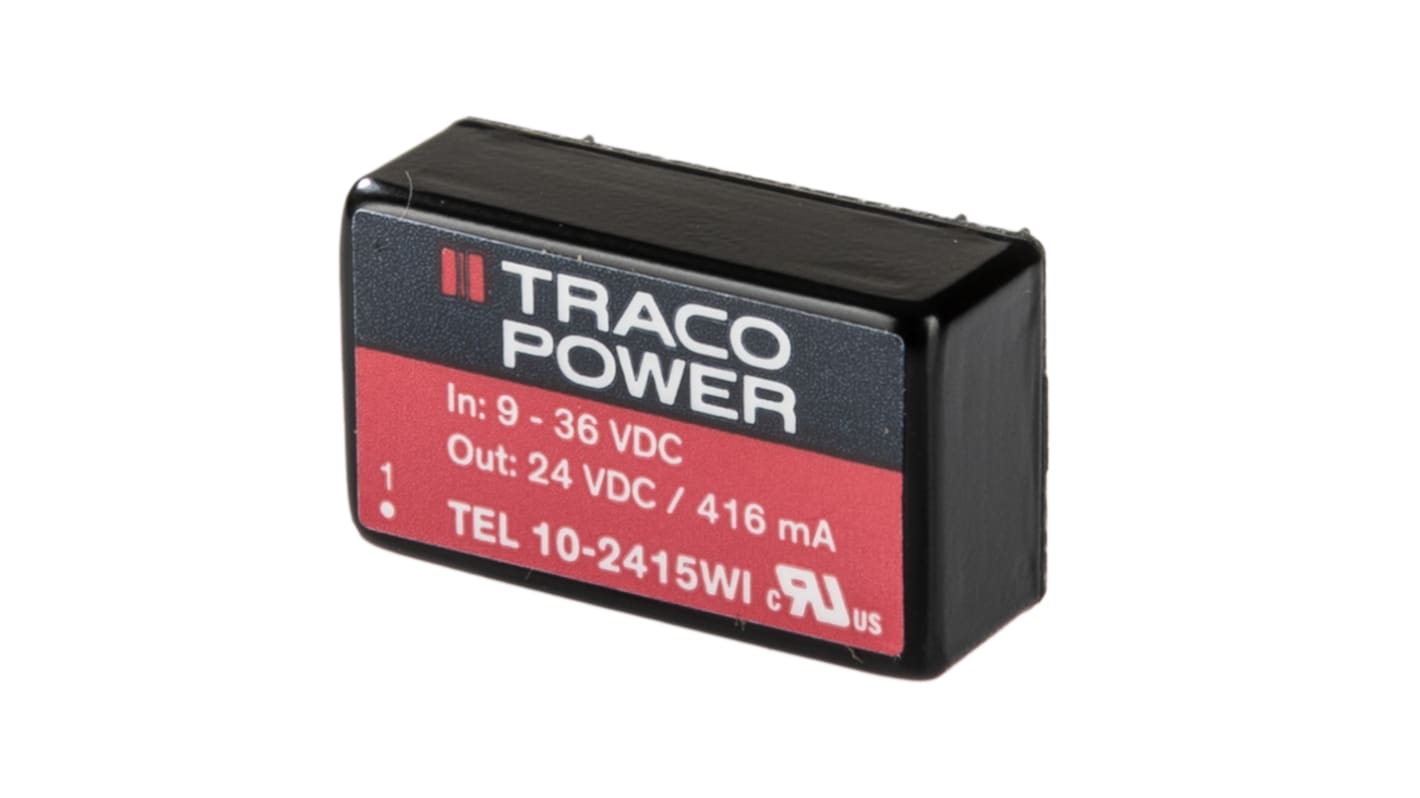

Traco Power DC-DC Converter, 9 to 36V DC Voltage Input Range, 88% Efficiency - TEL 10WI Series - TEL 10-2415WI


Need a power transformation solution that can juggle a wide range of inputs? Pick this DC-DC converter from Traco Power. It's a reliable way to change supplies between 9 and 36V DC into a balanced 24V DC supply. As the unit runs at 88% efficiency with a 50% load, little energy is wasted as heat. Thanks to an internal input filter, this device offers EN 55032 Class A resistance to electromagnetic and radio frequency interferences, so you can trust it to run reliably. Its rugged DIP-16 format ensures glitch-free performance in temperatures between -40°C and +88°C.

Features & Benefits


• Through-hole mounting style to get installation done in a jiffy

• 0.01% load regulation for steady power outputs even when inputs fluctuate

• Isolation between incoming and outgoing feeds for improved electrical safety

• Weighing in at only 6.5g, this unit adds minimal strain to your PCB

Applications


• Industrial electronics

• Testing and measuring equipment

• IT networks

How much space does will DC-DC converter use on my PCB?


This is a small device with dimensions of 23.8 (L) x 13.7 (W) x 8mm (D), so it slots neatly onto a crowded PCB.
