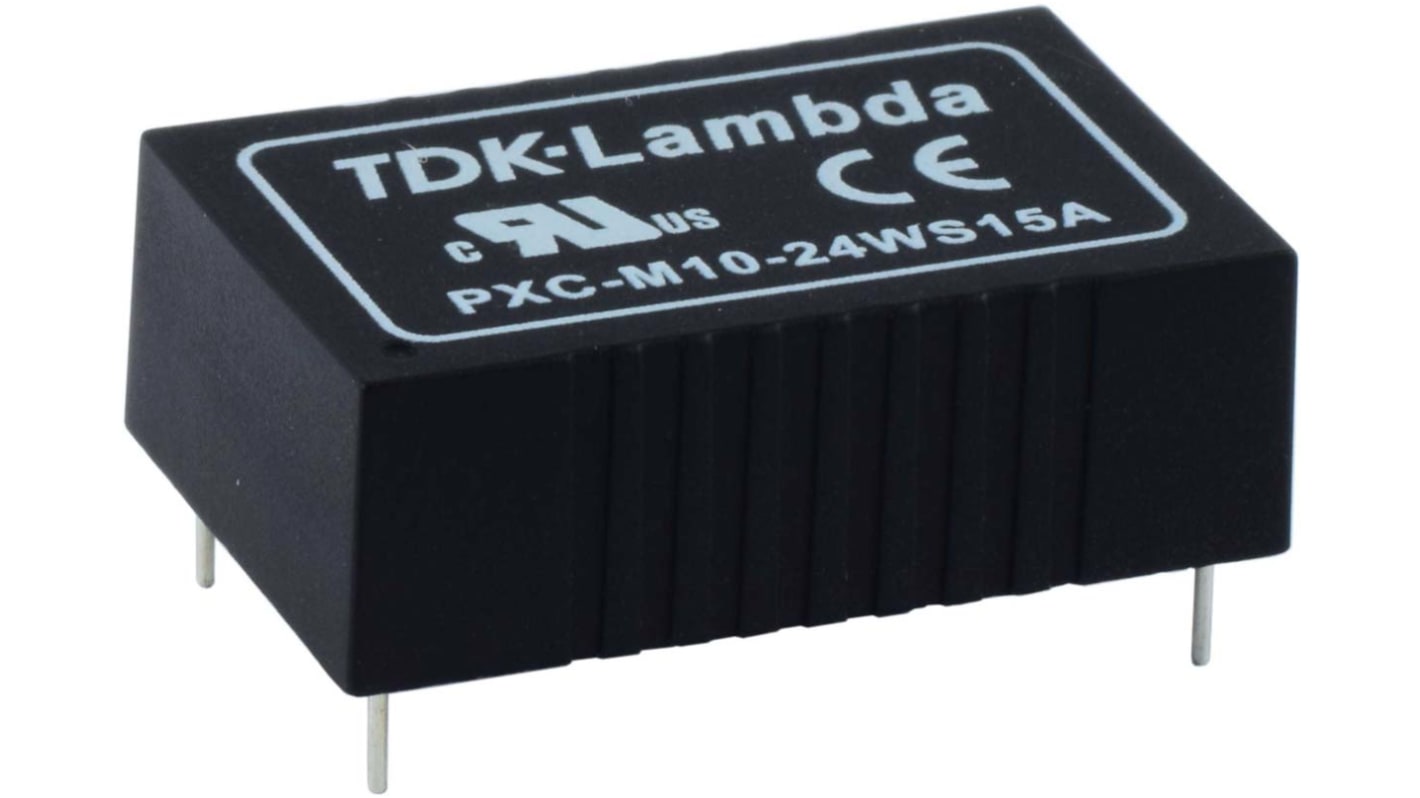

TDK-Lambda PXC-M10W DC-DC Converter, 24V dc/ 416mA Output, 18 → 75 V dc Input, 10W, PCB Mount, +77°C Max Temp

View this category
Bulk discount available

Subtotal (1 tube of 10 units)*

£518.49

(exc. VAT)

£622.19

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 10 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s)
Per Tube
Per unit*
1 - 4£518.49£51.849
5 - 9£502.94£50.294
10 - 24£487.40£48.74
25 - 49£471.83£47.183
50 +£456.28£45.628

*price indicative

RS Stock No.:
173-9172
Mfr. Part No.:
PXC-M10-48WS24
Brand:
TDK-Lambda
Find similar products by selecting one or more attributes.
Select all

Brand

TDK-Lambda

Output Voltage

24V dc

Input Voltage Range

18 → 75 V dc

Power Rating

10W

Input Voltage Nominal

48 V dc

Output Current

416mA

Mounting Type

PCB Mount

Isolated

Yes

Number of Outputs

1

Output Voltage Adjustment Range

-10/+20%

Isolation Voltage

5kV ac

Width

20.3mm

Depth

10.2mm

Length

31.8mm

Series

PXC-M10W

Railway Approved

No

Maximum Temperature

+77°C

Minimum Temperature

-40°C

Efficiency

88.5%

Medical Approved

Yes

Standards Met

60601-1 Approval, ANSI/AAMI ES60601-1, CE Mark, Class A and FCC part 18, Easier System Approval, EN55011, EN55022, EN60601-1, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, IEC60601-1, MIL-STD-810F
