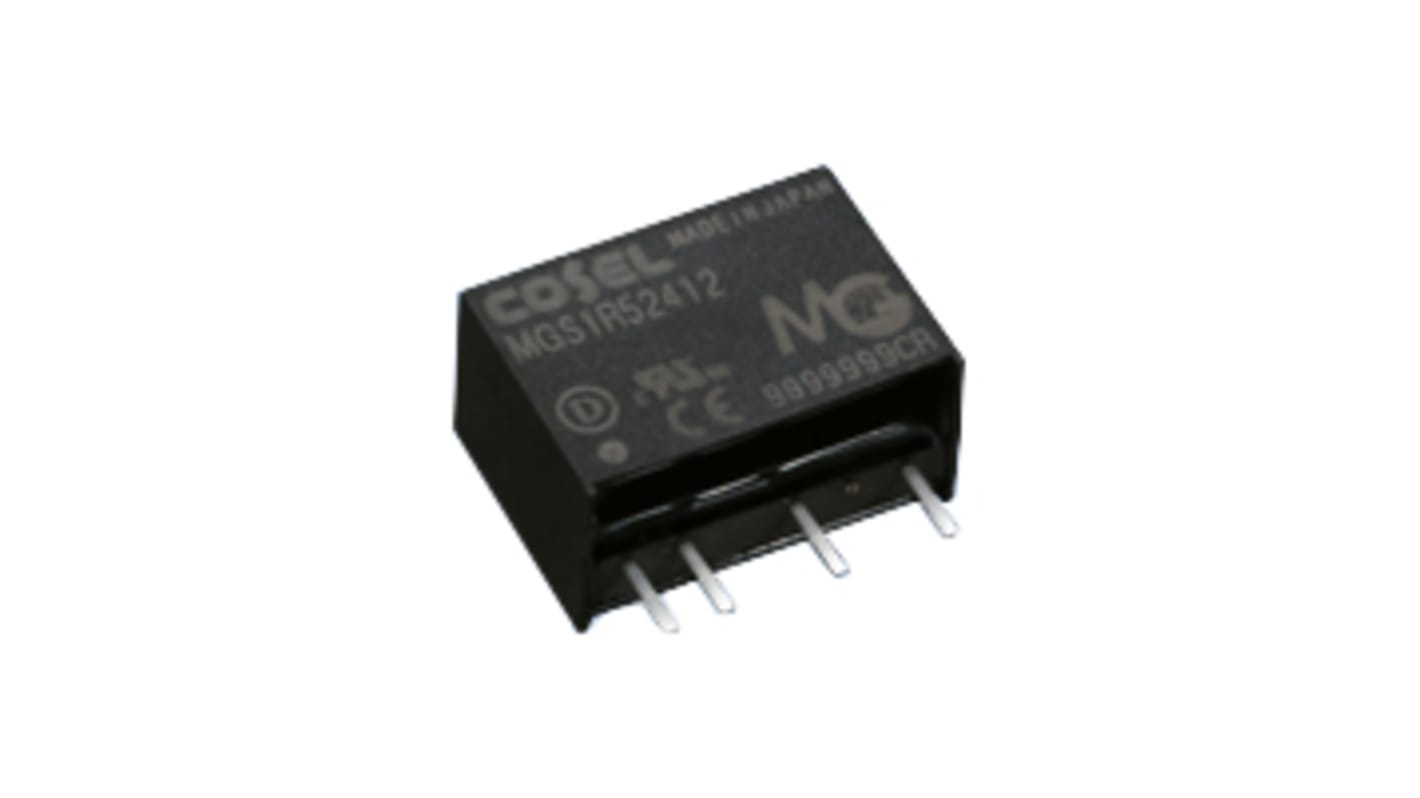

Cosel MGF DC/DC Converter, 5V dc/ 300 mA, 36V dc Input, 9V Input 1.5 W, PCB, 85 °C Max Temp -40 °C Min Temp, 4-Pin SIP-6
- RS Stock No.:
- 171-4792
- Mfr. Part No.:
- MGFS1R52405
- Brand:
- Cosel
Bulk discount available
View bulk pricing optionsSubtotal (10 units, in tubes of 10)*
£118.56
(exc. VAT)
£142.27
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 25 March 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £118.56 | £11.856 |
| 5 - 9 | £115.01 | £11.501 |
| 10 - 24 | £112.64 | £11.264 |
| 25 - 49 | £110.26 | £11.026 |
| 50 + | £107.90 | £10.79 |
*price indicative
- RS Stock No.:
- 171-4792
- Mfr. Part No.:
- MGFS1R52405
- Brand:
- Cosel
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Cosel | |
| Product Type | DC/DC Converter | |
| Output Voltage 1 | 5V dc | |
| Minimum Input Voltage | 9V | |
| Maximum Input Voltage | 36V dc | |
| Output Current 1 | 300mA | |
| Output Current 2 | 0.3A | |
| Mount Type | PCB | |
| Number of Outputs | 1 | |
| Ripple and Noise | 200mV Pk-Pk | |
| Output Voltage Adjustment Range | 4.90 to 5.21 V | |
| Number of Pins | 4 | |
| Isolation Voltage | 1kV dc | |
| Maximum Output Power | 1.5W | |
| Package Type | SIP-6 | |
| Series | MGF | |
| Width | 8.5mm | |
| Standards/Approvals | CE, EN 62368-1, EN62368-1, cUL, UL62368-1, CSA, UKCA, UL60950-1, C-UL, RoHS | |
| Weight | 4g | |
| Length | 17mm | |
| Depth | 12mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Efficiency | 80% | |
| Select all | ||
|---|---|---|
Brand Cosel | ||
Product Type DC/DC Converter | ||
Output Voltage 1 5V dc | ||
Minimum Input Voltage 9V | ||
Maximum Input Voltage 36V dc | ||
Output Current 1 300mA | ||
Output Current 2 0.3A | ||
Mount Type PCB | ||
Number of Outputs 1 | ||
Ripple and Noise 200mV Pk-Pk | ||
Output Voltage Adjustment Range 4.90 to 5.21 V | ||
Number of Pins 4 | ||
Isolation Voltage 1kV dc | ||
Maximum Output Power 1.5W | ||
Package Type SIP-6 | ||
Series MGF | ||
Width 8.5mm | ||
Standards/Approvals CE, EN 62368-1, EN62368-1, cUL, UL62368-1, CSA, UKCA, UL60950-1, C-UL, RoHS | ||
Weight 4g | ||
Length 17mm | ||
Depth 12mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Efficiency 80% | ||
- COO (Country of Origin):
- JP
The Cosel DC-DC converter offers reliable PCB mount functionality, providing an efficient voltage conversion solution tailored for Compact installations.
Wide input voltage range of DC18 to 36V, ensuring versatility in various applications
High efficiency of 78%, optimising energy consumption and performance
Overcurrent protection integrated, enhancing operational safety and reliability
Compact dimensions of 17.0X12.0X8.5mm, suitable for space-constrained designs
