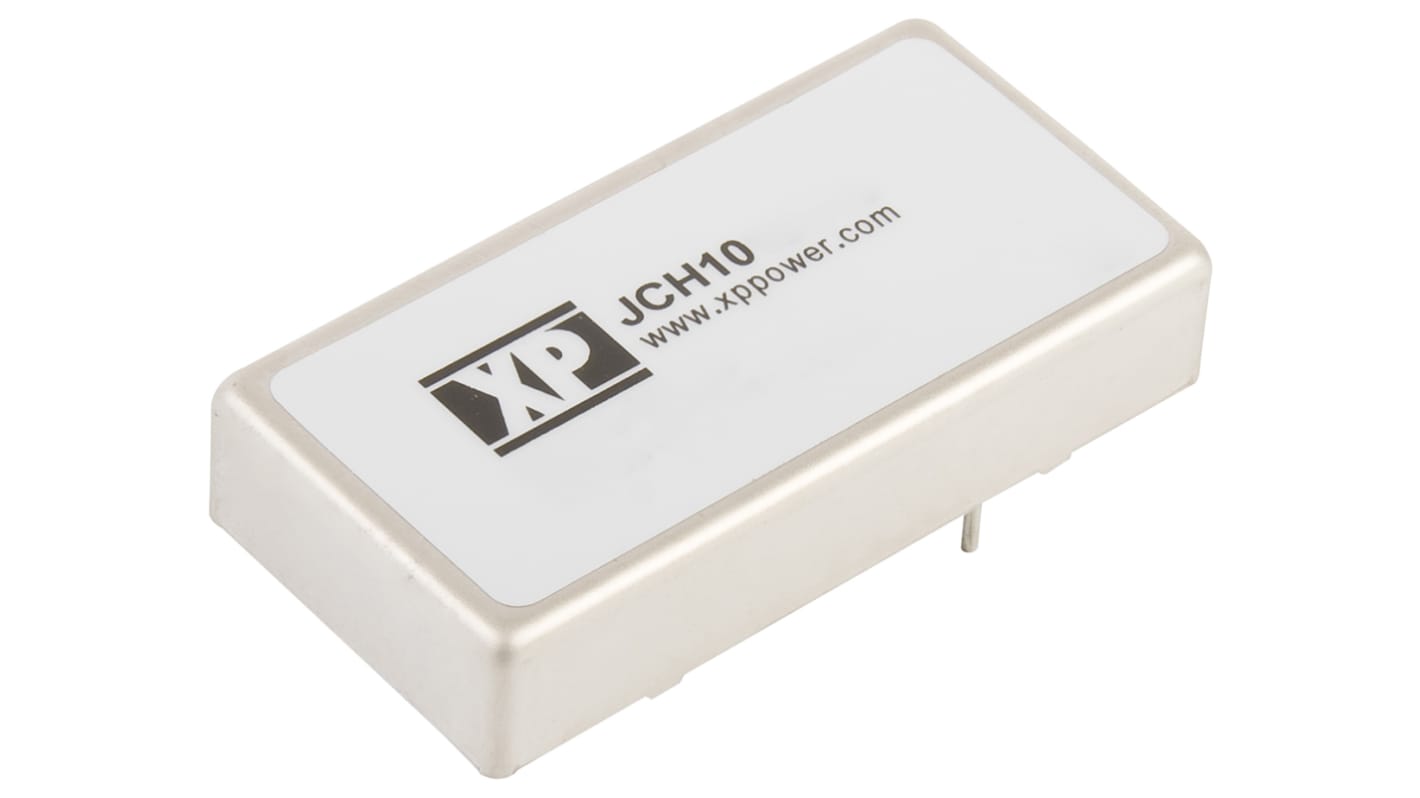

XP Power JCH DC-DC Converter, ±12V dc/ ±416mA Output, 9 → 18 V dc Input, 10W, Through Hole, +100°C Max Temp
- RS Stock No.:
- 167-2837
- Mfr. Part No.:
- JCH1012D12
- Brand:
- XP Power
Available to back order for despatch when stock is available
Price 1 Tube of 10
£210.80
(exc. VAT)
£252.96
(inc. VAT)
Tube(s) | Per Tube | Per unit* |
---|---|---|
1 - 4 | £210.80 | £21.08 |
5 - 9 | £204.48 | £20.448 |
10 - 24 | £198.15 | £19.815 |
25 - 49 | £191.83 | £19.183 |
50 + | £185.50 | £18.55 |
*price indicative
- RS Stock No.:
- 167-2837
- Mfr. Part No.:
- JCH1012D12
- Brand:
- XP Power
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
XP Power - JCH Series of 10 W Isolated DC-DC Converters
The JCH series from XP Power offers a highly reliable range of single and dual output, 10 W, isolated DC-DC converters. This compact range attributes 1500 VDC in isolation, a 2:1 input range and continuous short circuit protection. The series is completely convection-cooled in an industry standard package and has a high efficiency of up to 86%.
10 W, isolated DC-DC converters
Compact, industry standard package
2:1 input range
1500 VDC in isolation
Single and dual output
High efficiency up to 86%
Board mount
-40 °C to +100 °C Operating temperature
Convection-cooled
Compact, industry standard package
2:1 input range
1500 VDC in isolation
Single and dual output
High efficiency up to 86%
Board mount
-40 °C to +100 °C Operating temperature
Convection-cooled
XP Power - Isolated DC-DC Converters
Specifications
Attribute | Value |
---|---|
Output Voltage | ±12V dc |
Input Voltage Range | 9 → 18 V dc |
Power Rating | 10W |
Input Voltage Nominal | 12 V dc |
Output Current | ±416mA |
Mounting Type | Through Hole |
Isolated | Yes |
Number of Outputs | 2 |
Output Voltage Adjustment Range | ±11.76 V dc, ±12.24V dc |
Isolation Voltage | 1.5kV dc |
Depth | 10.16mm |
Width | 25.4mm |
Length | 50.8mm |
Series | JCH |
Load Regulation | ±1% |
Maximum Temperature | +100°C |
Efficiency | 84% |
Minimum Temperature | -40°C |
