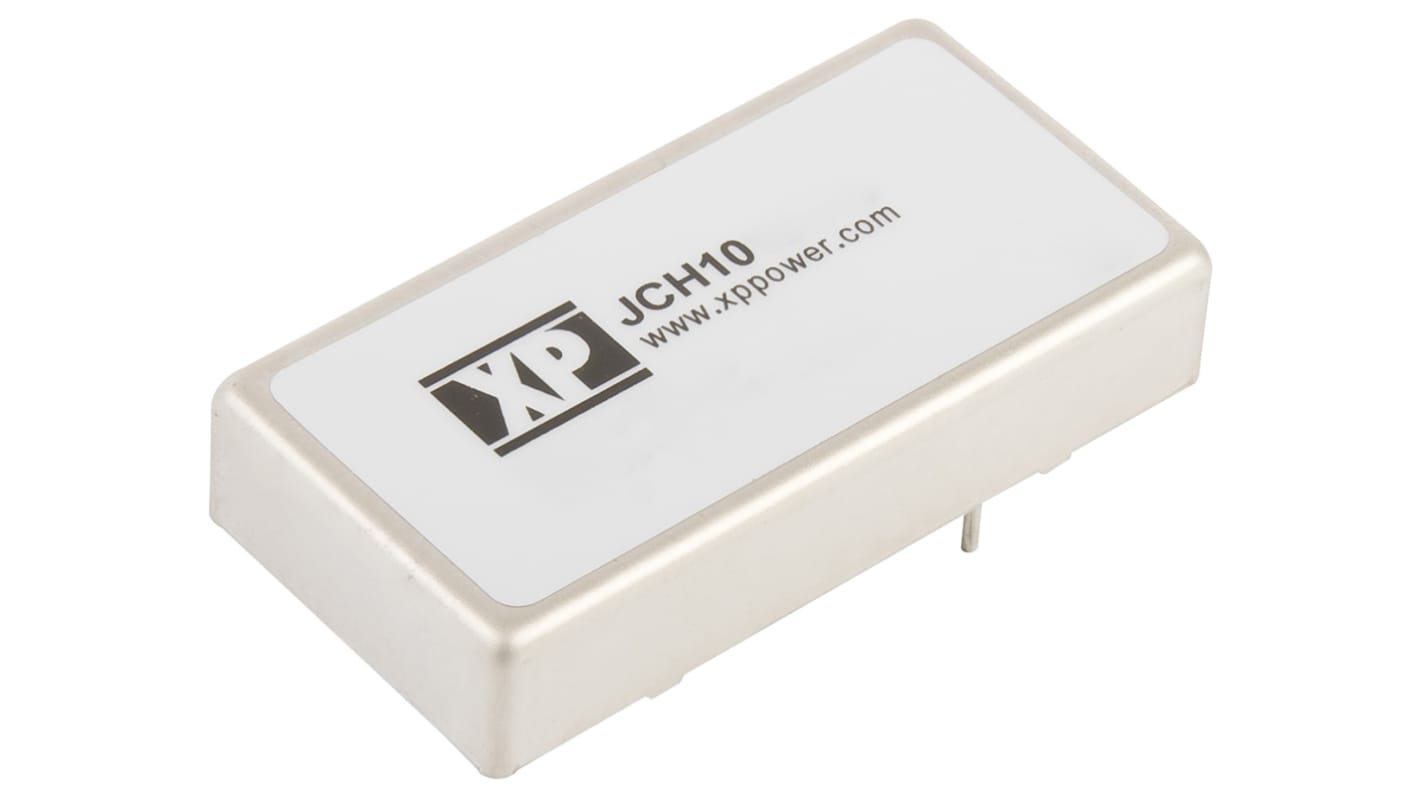

XP Power JCH DC-DC Converter, ±12V dc/ ±416mA Output, 18 → 36 V dc Input, 10W, Through Hole, +100°C Max Temp

View all DC-DC Converters
Currently unavailable
Sorry, we don't know when this will be back in stock.
RS Stock No.:
167-2804
Mfr. Part No.:
JCH1024D12
Brand:
XP Power
Find similar products by selecting one or more attributes.
Select all

Brand

XP Power

Output Voltage

±12V dc

Input Voltage Range

18 → 36 V dc

Power Rating

10W

Input Voltage Nominal

24 V dc

Output Current

±416mA

Mounting Type

Through Hole

Isolated

Yes

Number of Outputs

2

Output Voltage Adjustment Range

±11.76 V dc, ±12.24V dc

Isolation Voltage

1.5kV dc

Depth

10.16mm

Length

50.8mm

Width

25.4mm

Series

JCH

Load Regulation

±1%

Efficiency

84%

Minimum Temperature

-40°C

Maximum Temperature

+100°C

COO (Country of Origin):
TW

XP Power - JCH Series of 10 W Isolated DC-DC Converters


The JCH series from XP Power offers a highly reliable range of single and dual output, 10 W, isolated DC-DC converters. This compact range attributes 1500 VDC in isolation, a 2:1 input range and continuous short circuit protection. The series is completely convection-cooled in an industry standard package and has a high efficiency of up to 86%.

10 W, isolated DC-DC converters
Compact, industry standard package
2:1 input range
1500 VDC in isolation
Single and dual output
High efficiency up to 86%
Board mount
-40 °C to +100 °C Operating temperature
Convection-cooled


XP Power - Isolated DC-DC Converters
