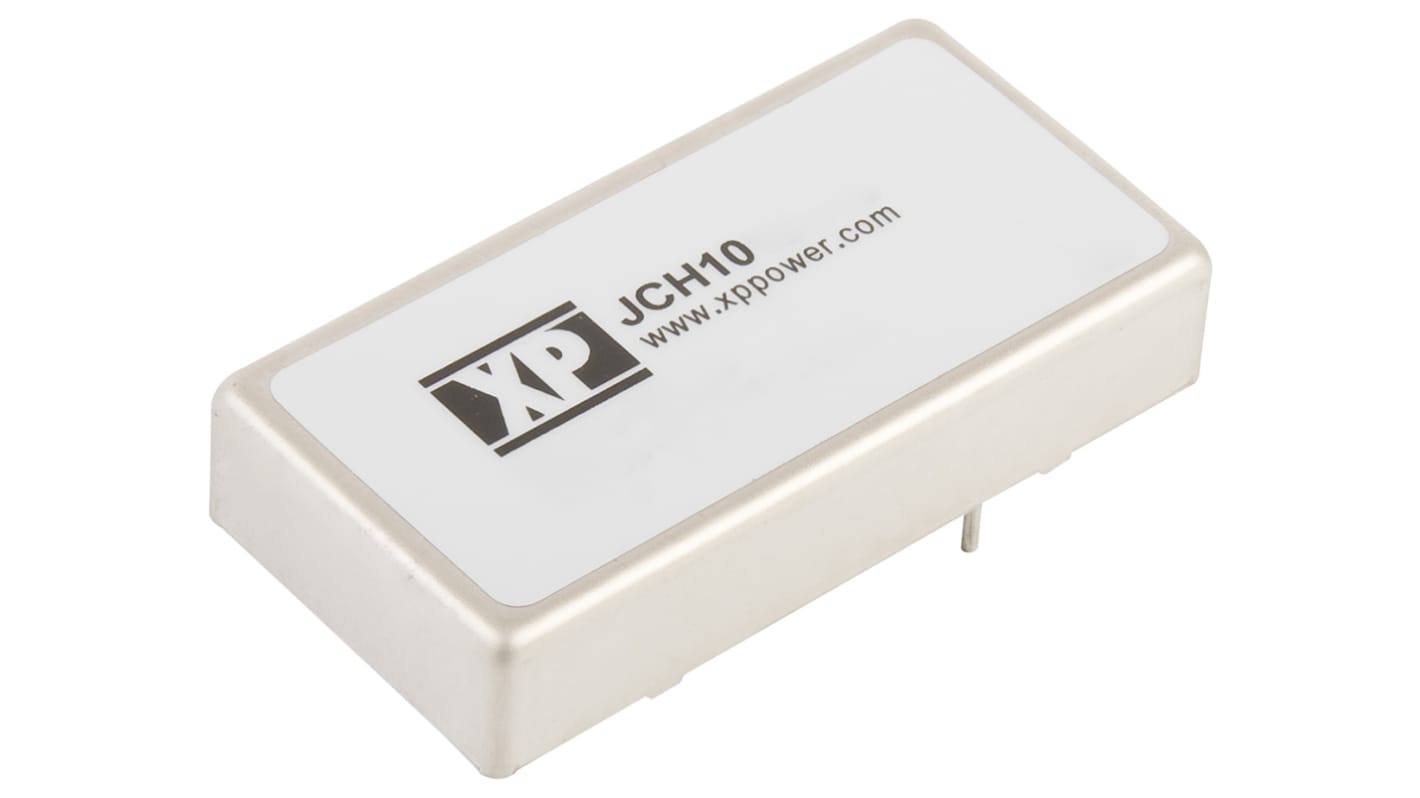

XP Power JCH DC-DC Converter, 5V dc/ 2A Output, 36 → 72 V dc Input, 10W, Through Hole, +100°C Max Temp -40°C Min
- RS Stock No.:
- 122-8206
- Mfr. Part No.:
- JCH1048S05
- Brand:
- XP Power
Bulk discount available
Subtotal (1 unit)*
£21.85
(exc. VAT)
£26.22
(inc. VAT)
Stock information currently inaccessible
Units | Per unit |
|---|---|
| 1 - 4 | £21.85 |
| 5 - 9 | £21.19 |
| 10 - 24 | £20.54 |
| 25 - 49 | £19.88 |
| 50 + | £19.22 |
*price indicative
- RS Stock No.:
- 122-8206
- Mfr. Part No.:
- JCH1048S05
- Brand:
- XP Power
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Output Voltage | 5V dc | |
| Input Voltage Range | 36 → 72 V dc | |
| Power Rating | 10W | |
| Input Voltage Nominal | 48 V dc | |
| Output Current | 2A | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Output Voltage Adjustment Range | ±1% | |
| Isolation Voltage | 1.5kV dc | |
| Length | 50.8mm | |
| Width | 25.4mm | |
| Depth | 10.16mm | |
| Series | JCH | |
| Load Regulation | ±0.5% | |
| Efficiency | 83% | |
| Minimum Temperature | -40°C | |
| Maximum Temperature | +100°C | |
Select all | ||
|---|---|---|
Brand XP Power | ||
Output Voltage 5V dc | ||
Input Voltage Range 36 → 72 V dc | ||
Power Rating 10W | ||
Input Voltage Nominal 48 V dc | ||
Output Current 2A | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Output Voltage Adjustment Range ±1% | ||
Isolation Voltage 1.5kV dc | ||
Length 50.8mm | ||
Width 25.4mm | ||
Depth 10.16mm | ||
Series JCH | ||
Load Regulation ±0.5% | ||
Efficiency 83% | ||
Minimum Temperature -40°C | ||
Maximum Temperature +100°C | ||
