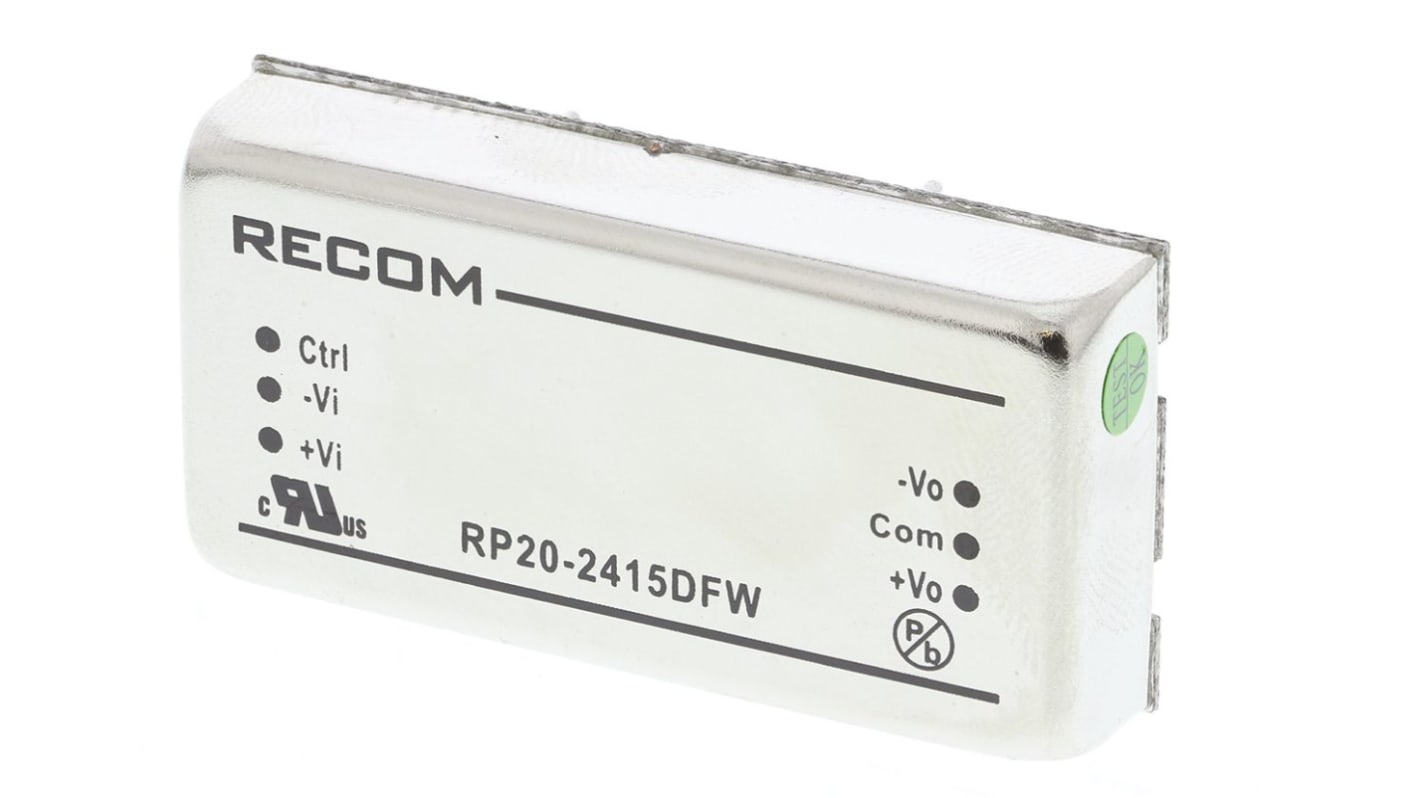

Recom RP20 FW DC/DC Converter, 15V dc, -15 V dc/ 667 mA, 24V dc Input, 9V Input 20 W, Through Hole, 105 °C Max Temp -40

View all DC-DC Converters
Bulk discount available

Subtotal (1 tube of 9 units)*

£640.91

(exc. VAT)

£769.09

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 13 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Tube(s)
Per Tube
Per unit*
1 - 4£640.91£71.212
5 - 9£621.68£69.076
10 - 24£602.45£66.939
25 - 49£583.22£64.802
50 +£564.00£62.667

*price indicative

RS Stock No.:
166-9078
Mfr. Part No.:
RP20-2415DFW
Brand:
Recom
Find similar products by selecting one or more attributes.
Select all

Brand

Recom

Product Type

DC/DC Converter

Output Voltage 1

15, -15V dc

Minimum Input Voltage

9V

Maximum Input Voltage

24V dc

Output Current 1

667mA

Output Current 2

667mA

Mount Type

Through Hole

MTBF

2350000h

Number of Outputs

2

Output Voltage Adjustment Range

9/36 V

Ripple and Noise

75mV Pk-Pk

Number of Pins

6

Isolation Voltage

1.6kV dc

Package Type

Tube

Maximum Output Power

20W

Length

25.4mm

Series

RP20 FW

Width

10.2mm

Depth

10.2mm

Weight

27g

Standards/Approvals

UR, RoHS

Minimum Operating Temperature

-40°C

Efficiency

86%

Maximum Operating Temperature

105°C

COO (Country of Origin):
TW

Recom 20W Single/Dual Output Regulated Isolated DC-DC Converter - RP20-FW Series


High power density

Ultra-wide 4:1 input voltage range

Regulated outputs

1.6kV input / output isolation

Pi input filter, meets EN 55022 Class A/B with external filter

Remote On/Off Control

Under voltage, over voltage (single), over load and short circuit protection

Shielded metal case with insulated baseplate

Industry standard pin-out

Note

Operating temperature is without de-rating.
