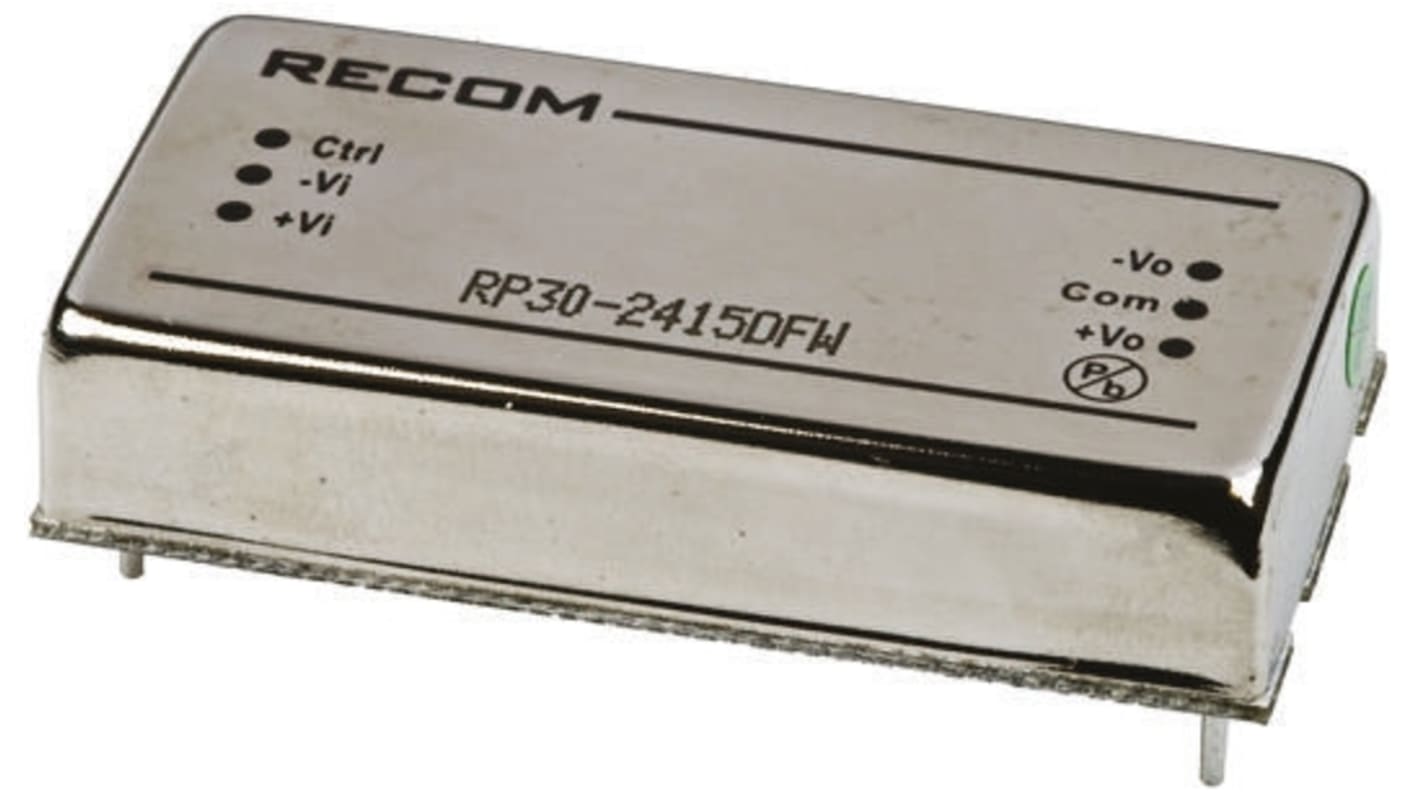

Recom RP30-FW DC-DC Converter, ±15V dc/ ±1A Output, 9 → 36 V dc Input, 30W, Through Hole, +85°C Max Temp -40°C
- RS Stock No.:
- 166-8756
- Mfr. Part No.:
- RP30-2415DFW
- Brand:
- Recom
Available to back order for despatch 12/09/2024
Price 1 Tube of 9
£776.84
(exc. VAT)
£932.21
(inc. VAT)
Tube(s) | Per Tube | Per unit* |
---|---|---|
1 - 4 | £776.84 | £86.316 |
5 - 9 | £753.54 | £83.727 |
10 - 24 | £730.23 | £81.137 |
25 - 49 | £706.93 | £78.548 |
50 + | £683.62 | £75.958 |
*price indicative
- RS Stock No.:
- 166-8756
- Mfr. Part No.:
- RP30-2415DFW
- Brand:
- Recom
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Recom 30W Single/Dual Output Regulated Isolated DC-DC Converter - RP30-FW Series
4:1 wide input voltage range
Regulated outputs
1.6kVdc isolation
Fixed operating frequency
Six-sided continuous shield
Standard 2x1 package
High efficiency
Overload, over voltage and short circuit protection
Regulated outputs
1.6kVdc isolation
Fixed operating frequency
Six-sided continuous shield
Standard 2x1 package
High efficiency
Overload, over voltage and short circuit protection
Note
Operating temperature range is with derating.
MBTF to BELLCORE TR-NWT-000332.
MBTF to BELLCORE TR-NWT-000332.
Standards
UL60950-1
Approvals
UL Recognised
Specifications
Attribute | Value |
---|---|
Output Voltage | ±15V dc |
Input Voltage Range | 9 → 36 V dc |
Power Rating | 30W |
Input Voltage Nominal | 24 V dc |
Output Current | ±1A |
Mounting Type | Through Hole |
Isolated | Yes |
Number of Outputs | 2 |
Isolation Voltage | 1.6kV dc |
Depth | 10.2mm |
Length | 50.8mm |
Series | RP30-FW |
Minimum Temperature | -40°C |
Maximum Temperature | +85°C |
