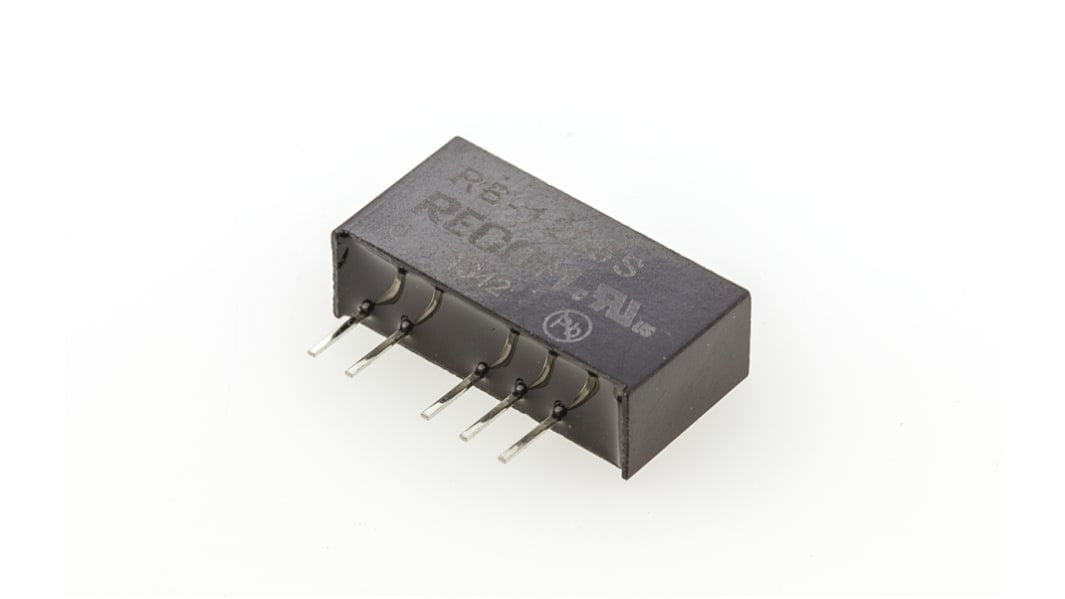

Recom RB DC-DC Converter, 5V dc/ 200mA Output, 10.8 → 13.2 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C
- RS Stock No.:
- 166-8833
- Mfr. Part No.:
- RB-1205S
- Brand:
- Recom
Available to back order for despatch when stock is available
Price 1 Tube of 25
£131.70
(exc. VAT)
£158.04
(inc. VAT)
Tube(s) | Per Tube | Per unit* |
---|---|---|
1 - 4 | £131.70 | £5.268 |
5 - 9 | £127.75 | £5.11 |
10 - 24 | £123.80 | £4.952 |
25 - 49 | £119.85 | £4.794 |
50 + | £115.90 | £4.636 |
*price indicative
- RS Stock No.:
- 166-8833
- Mfr. Part No.:
- RB-1205S
- Brand:
- Recom
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Recom 1W SIP Single/Dual Output Unregulated Isolated DC-DC Converter - RE/RB Series
Single & dual output options
1kVdc isolation
UL94V-0 package material
SIP7 package with industry standard pin-outs
1kVdc isolation
UL94V-0 package material
SIP7 package with industry standard pin-outs
Note
Operating temperature is without derating.
Specifications
Attribute | Value |
---|---|
Output Voltage | 5V dc |
Input Voltage Range | 10.8 → 13.2 V dc |
Power Rating | 1W |
Input Voltage Nominal | 12 V dc |
Output Current | 200mA |
Mounting Type | Through Hole |
Isolated | Yes |
Number of Outputs | 1 |
Package | SIP |
Isolation Voltage | 500V ac |
Depth | 10.2mm |
Length | 19.6mm |
Series | RB |
Minimum Temperature | -40°C |
Maximum Temperature | +85°C |
