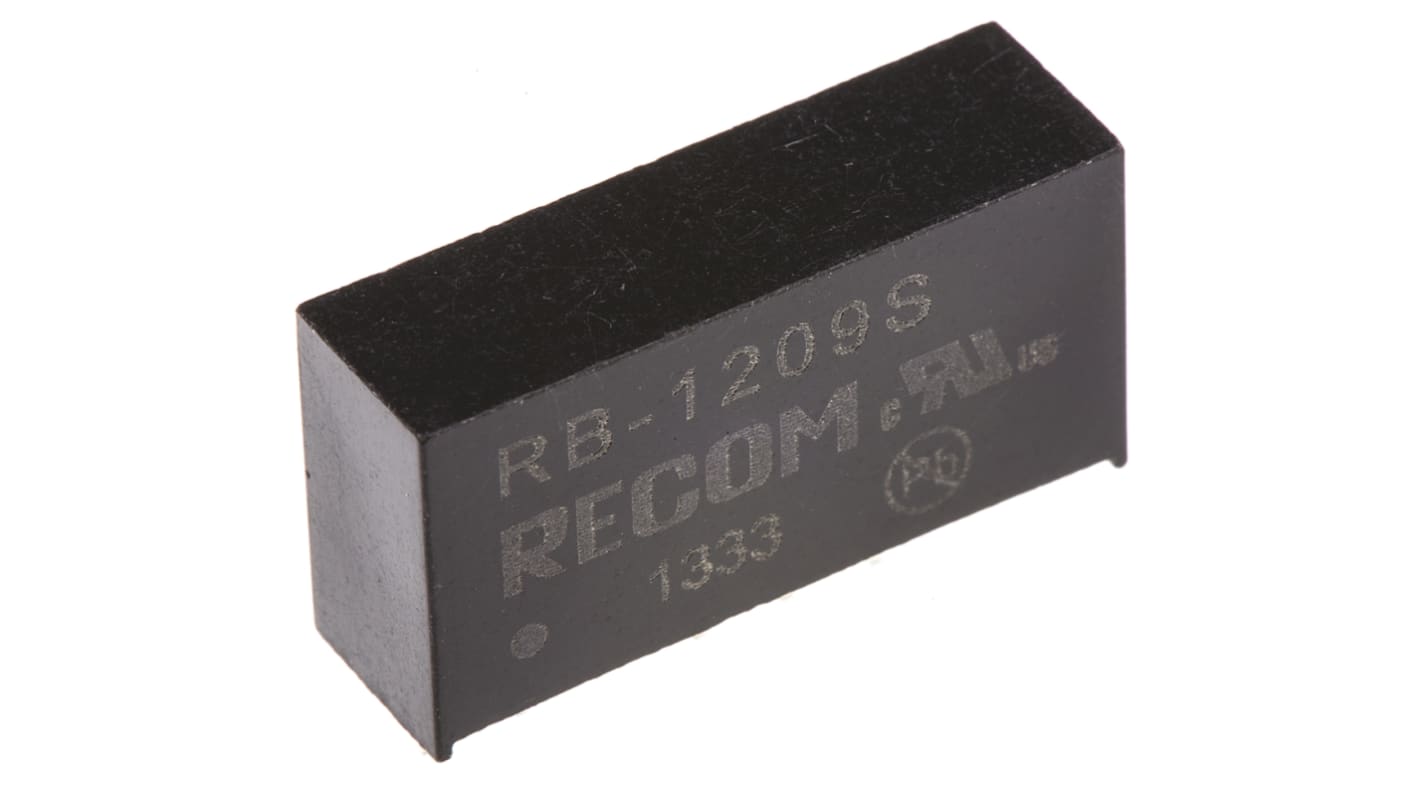

Recom RB DC/DC Converter, 9V dc/ 111 mA, 12V dc Input, 0V ac Input 1 W, Through Hole, 85 °C Max Temp -40 °C Min Temp,
- RS Stock No.:
- 166-8831
- Mfr. Part No.:
- RB-1209S
- Brand:
- Recom
Bulk discount available
Subtotal (1 tube of 25 units)*
£135.67
(exc. VAT)
£162.80
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 28 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £135.67 | £5.427 |
| 5 - 9 | £131.60 | £5.264 |
| 10 - 24 | £127.53 | £5.101 |
| 25 - 49 | £123.46 | £4.938 |
| 50 + | £119.39 | £4.776 |
*price indicative
- RS Stock No.:
- 166-8831
- Mfr. Part No.:
- RB-1209S
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Output Voltage 1 | 9V dc | |
| Product Type | DC/DC Converter | |
| Minimum Input Voltage | 0V ac | |
| Maximum Input Voltage | 12V dc | |
| Output Current 1 | 111mA | |
| Output Current 2 | 111mA | |
| Mount Type | Through Hole | |
| MTBF | 151000h | |
| Number of Outputs | 1 | |
| Output Voltage Adjustment Range | 0/12 V | |
| Ripple and Noise | 75mV Pk-Pk | |
| Isolation Voltage | 500V ac | |
| Number of Pins | 7 | |
| Package Type | SIP | |
| Maximum Output Power | 1W | |
| Depth | 10.2mm | |
| Weight | 2.2g | |
| Series | RB | |
| Width | 10.2mm | |
| Standards/Approvals | CSA, IEC, UL | |
| Length | 19.6mm | |
| Maximum Operating Temperature | 85°C | |
| Minimum Operating Temperature | -40°C | |
| Efficiency | 78% | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Output Voltage 1 9V dc | ||
Product Type DC/DC Converter | ||
Minimum Input Voltage 0V ac | ||
Maximum Input Voltage 12V dc | ||
Output Current 1 111mA | ||
Output Current 2 111mA | ||
Mount Type Through Hole | ||
MTBF 151000h | ||
Number of Outputs 1 | ||
Output Voltage Adjustment Range 0/12 V | ||
Ripple and Noise 75mV Pk-Pk | ||
Isolation Voltage 500V ac | ||
Number of Pins 7 | ||
Package Type SIP | ||
Maximum Output Power 1W | ||
Depth 10.2mm | ||
Weight 2.2g | ||
Series RB | ||
Width 10.2mm | ||
Standards/Approvals CSA, IEC, UL | ||
Length 19.6mm | ||
Maximum Operating Temperature 85°C | ||
Minimum Operating Temperature -40°C | ||
Efficiency 78% | ||
Recom 1W SIP Single/Dual Output Unregulated Isolated DC-DC Converter - RE/RB Series
Single & dual output options
1kVdc isolation
UL94V-0 package material
SIP7 package with industry standard pin-outs
Note
Operating temperature is without derating.
