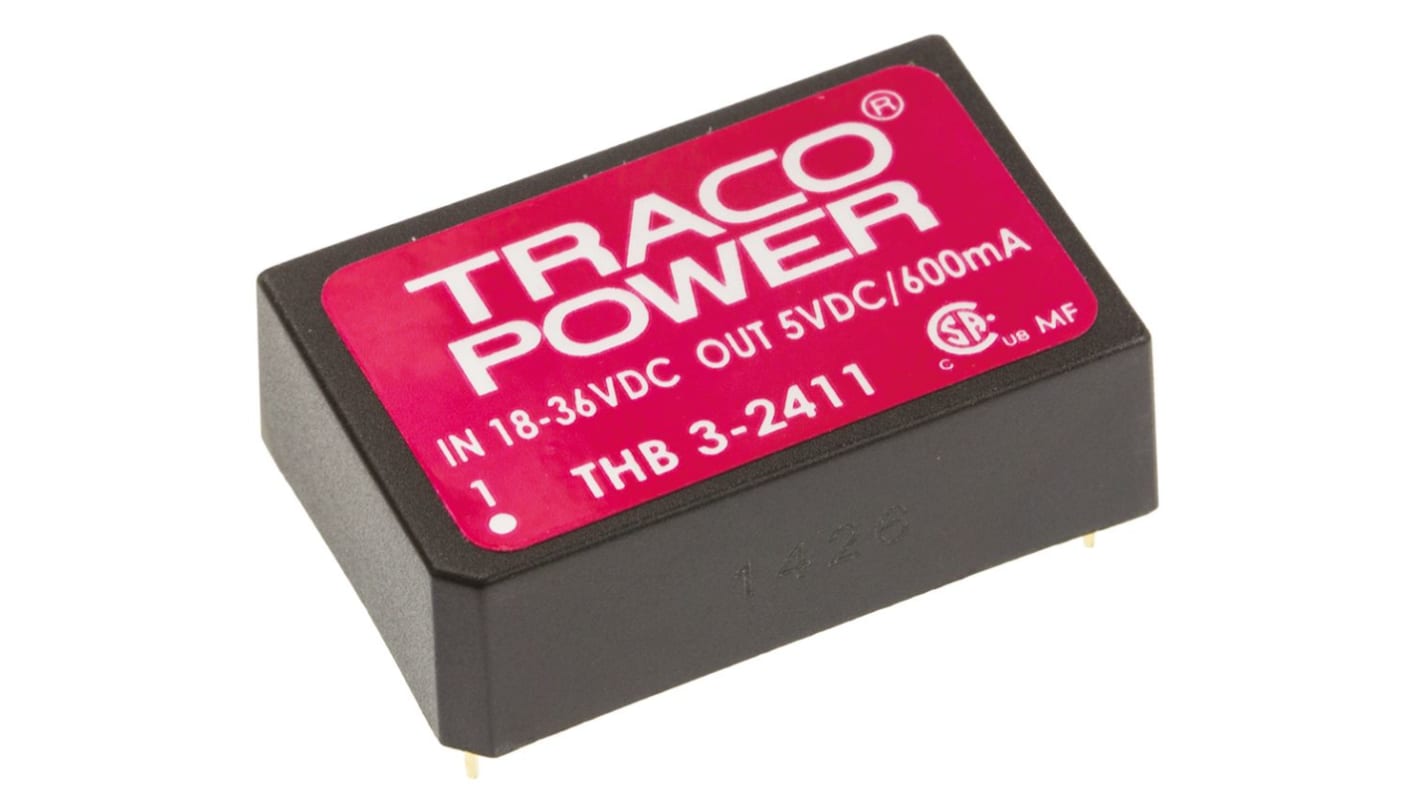

TRACOPOWER THB 3 DC/DC Converter, 5V dc/ 600 mA, 36V dc Input, 18V Input 3 W, Through Hole, 85 °C Max Temp -40 °C Min

View all DC-DC Converters
Bulk discount available

Subtotal (1 tube of 10 units)*

£336.49

(exc. VAT)

£403.79

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Tube(s)
Per Tube
Per unit*
1 - 4£336.49£33.649
5 - 9£326.40£32.64
10 - 24£316.30£31.63
25 - 49£302.84£30.284
50 +£289.39£28.939

*price indicative

RS Stock No.:
166-5500
Mfr. Part No.:
THB 3-2411
Brand:
TRACOPOWER
Find similar products by selecting one or more attributes.
Select all

Brand

TRACOPOWER

Output Voltage 1

5V dc

Product Type

DC/DC Converter

Maximum Input Voltage

36V dc

Minimum Input Voltage

18V

Output Current 1

600mA

Mount Type

Through Hole

Input Ratio

2:1

MTBF

1000000h

Number of Outputs

1

Output Voltage Adjustment Range

-1 to 1 %

Number of Pins

7

Isolation Voltage

4kV ac

Package Type

DIP-24

Maximum Output Power

3W

Width

20.3mm

Series

THB 3

Depth

10.5mm

Standards/Approvals

No

Length

31.8mm

Efficiency

78%

Maximum Operating Temperature

85°C

Minimum Operating Temperature

-40°C

COO (Country of Origin):
TW

Traco Power DC-DC Converter, 4kV DC Isolation, 78% Efficiency - THB 3 Series - THB 3-2411


Keen to track down a DC-DC converter that's Serious about boosting safety? This one from Traco Power's your answer. It takes an input ranging between 18 and 36V DC and steps it down to a carefully regulated 5V DC that's just what you need to charge battery-supplied equipment. As the unit comes with both supplementary and reinforced insulation, you can Trust it's extra safe for demanding applications like transportation. Isolation to 4kV DC and continuous short-circuit cover take protections even further, shielding you and any connected kit from the harmful effects of surge voltages or current faults.

Features & Benefits


• Built-in EMI filter on inputs means you can expect reliable EMC performance

• 0.5% line regulation and 1% load regulation give you close control of input and output values

• Works without a hitch in an operating temperature range from -40°C to +85°C

Applications


• Instrumentation

• Medical devices

• Process control and automation

How efficient is this converter?


This DC-DC converter boasts an efficiency rating of 78%. That means it wastes little energy as heat and can rely on natural convection to keep it cool. As a result, you won't need to fit a fan or a heatsink.
