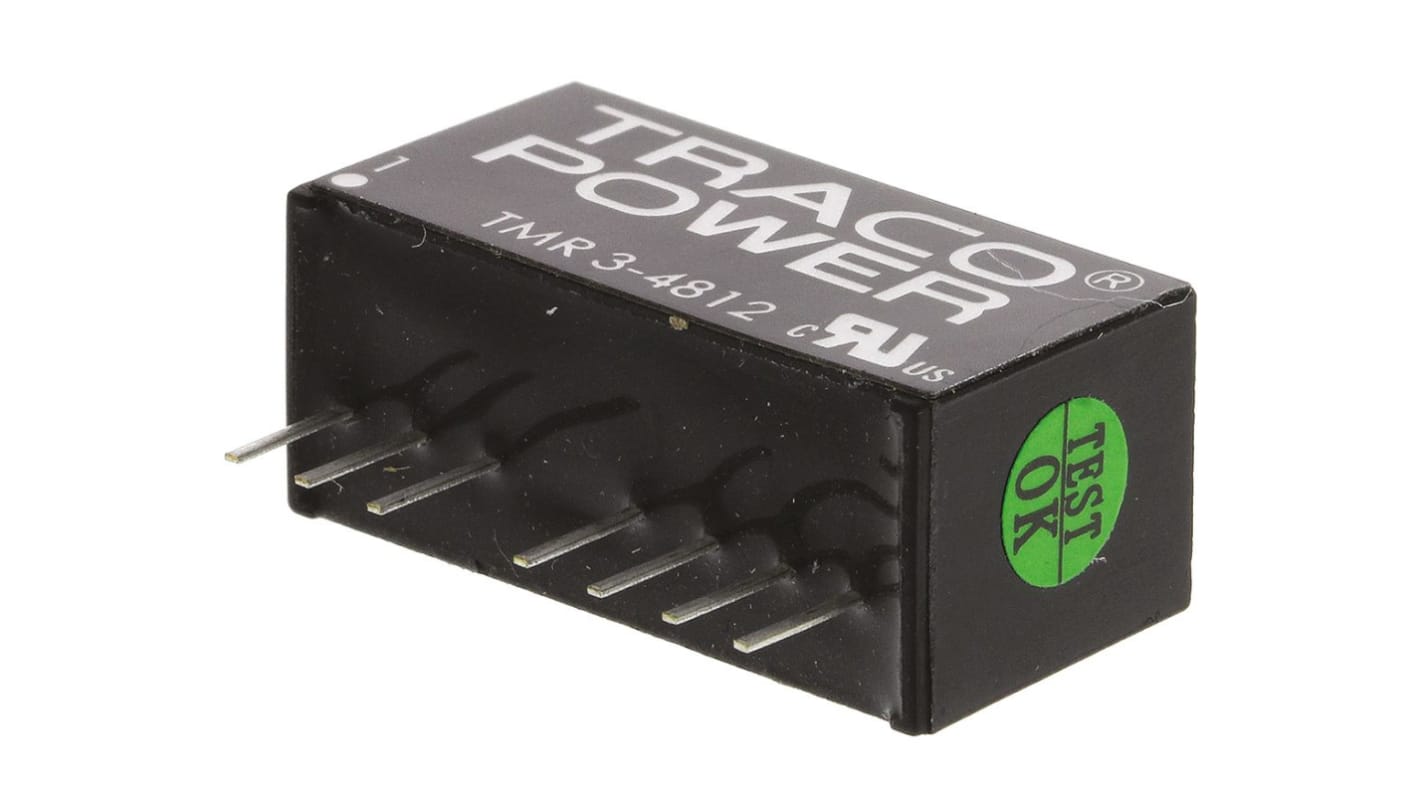

TRACOPOWER TMR 3 DC-DC Converter, 12V dc/ 250mA Output, 36 → 75 V dc Input, 3W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 166-5390
- Mfr. Part No.:
- TMR 3-4812
- Brand:
- TRACOPOWER
Available to back order for despatch 15/10/2024
Added
Price 1 Tube of 10
£171.60
(exc. VAT)
£205.92
(inc. VAT)
| Tube(s) | Per Tube | Per unit* |
| 1 - 4 | £171.60 | £17.16 |
| 5 - 9 | £166.45 | £16.645 |
| 10 - 24 | £161.30 | £16.13 |
| 25 - 49 | £154.44 | £15.444 |
| 50 + | £147.58 | £14.758 |
| *price indicative | ||
- RS Stock No.:
- 166-5390
- Mfr. Part No.:
- TMR 3-4812
- Brand:
- TRACOPOWER
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Traco 3W SIP Single/Dual Output Regulated Isolated DC-DC Converter - TMR 3 Series
The TMR-3 series is a family of 3W single/dual output DC/DC converters with a compact SIP-8 package, regulated output and a wide 2:1 input voltage range. These Traco Power 3W single/dual output DC/DC converters are highly efficient allowing a -40 to +85°C operating temperature range. The compact size of these single/dual output DC/DC converters make them ideal for use in applications such as communication equipment, instrumentation and industrial electronics.
Wide 2:1 input voltage range
Regulated outputs
1500 and 3000 V input / output isolation
Remote On/Off Control
Continuous short circuit protection
UL94V-0 package material
SIP-8 package
Regulated outputs
1500 and 3000 V input / output isolation
Remote On/Off Control
Continuous short circuit protection
UL94V-0 package material
SIP-8 package
Standards
IEC/EN 60950-1, UL 60950-1
Approvals
UL/cUL
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 12V dc |
| Input Voltage Range | 36 → 75 V dc |
| Power Rating | 3W |
| Input Voltage Nominal | 48 V dc |
| Output Current | 250mA |
| Mounting Type | Through Hole |
| Isolated | Yes |
| Number of Outputs | 1 |
| Package | SIP 8 |
| Isolation Voltage | 1.5kV dc |
| Depth | 11.1mm |
| Width | 9.2mm |
| Length | 21.8mm |
| Series | TMR 3 |
| Load Regulation | ±0.5% |
| Maximum Temperature | +85°C |
| Efficiency | 81% |
| Minimum Temperature | -40°C |
