Recom R24P DC/DC Converter, 6V dc/ 167 mA, 26.4V dc Input, 21.6V Input 1 W, Through Hole, 90 °C Max Temp -40 °C Min
- RS Stock No.:
- 165-4977
- Mfr. Part No.:
- R24P06S
- Brand:
- Recom
Bulk discount available
View bulk pricing optionsSubtotal (1 tube of 25 units)*
£338.74
(exc. VAT)
£406.49
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 08 March 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £338.74 | £13.55 |
| 5 - 9 | £328.58 | £13.143 |
| 10 - 24 | £318.42 | £12.737 |
| 25 - 49 | £308.26 | £12.33 |
| 50 + | £298.09 | £11.924 |
*price indicative
- RS Stock No.:
- 165-4977
- Mfr. Part No.:
- R24P06S
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Output Voltage 1 | 6V dc | |
| Product Type | DC/DC Converter | |
| Maximum Input Voltage | 26.4V dc | |
| Minimum Input Voltage | 21.6V | |
| Output Current 1 | 167mA | |
| Mount Type | Through Hole | |
| Number of Outputs | 1 | |
| MTBF | 20000000h | |
| Number of Pins | 4 | |
| Isolation Voltage | 6.4kV dc | |
| Maximum Output Power | 1W | |
| Package Type | SIP-7 | |
| Depth | 12.5mm | |
| Length | 19.5mm | |
| Width | 9.8mm | |
| Standards/Approvals | No | |
| Series | R24P | |
| Maximum Operating Temperature | 90°C | |
| Minimum Operating Temperature | -40°C | |
| Efficiency | 80% | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Output Voltage 1 6V dc | ||
Product Type DC/DC Converter | ||
Maximum Input Voltage 26.4V dc | ||
Minimum Input Voltage 21.6V | ||
Output Current 1 167mA | ||
Mount Type Through Hole | ||
Number of Outputs 1 | ||
MTBF 20000000h | ||
Number of Pins 4 | ||
Isolation Voltage 6.4kV dc | ||
Maximum Output Power 1W | ||
Package Type SIP-7 | ||
Depth 12.5mm | ||
Length 19.5mm | ||
Width 9.8mm | ||
Standards/Approvals No | ||
Series R24P | ||
Maximum Operating Temperature 90°C | ||
Minimum Operating Temperature -40°C | ||
Efficiency 80% | ||
- COO (Country of Origin):
- TW

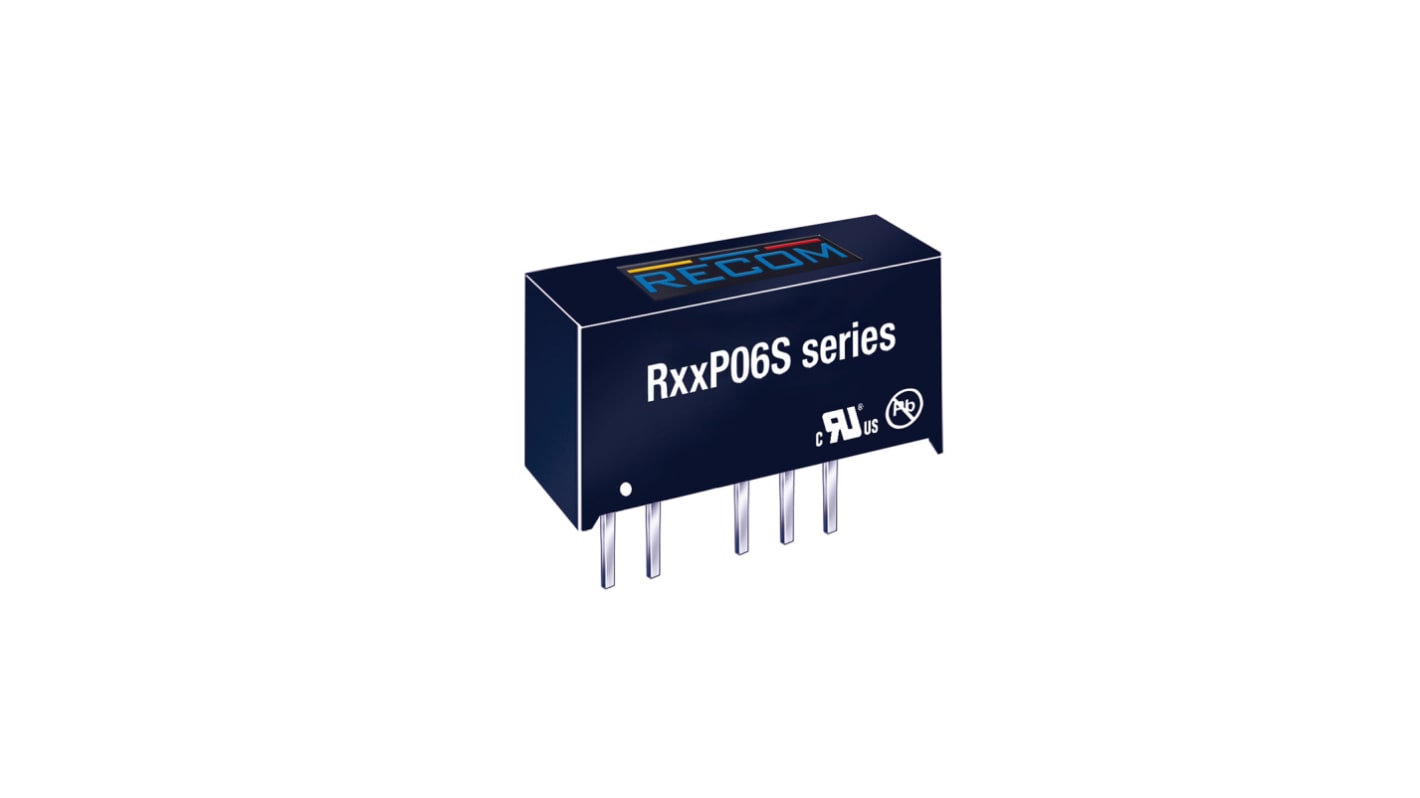

High slew rate GaN transistor drivers require an isolated 6V supply with high isolation voltage and low isolation capacitance. The RxxP06S series have been specially designed to fulfill this demanding requirement with 6400VDC/sec isolation and <10pF isolation capacitance. The internal transformer uses a pot-core to physically separate the input and output windings, yet the converter still fits into an industry standard case. Input voltage options of 5, 12, 15 or 24V are available.
6V Output for GaN driver Applications
Pot-Core Transformer with separated windings
High 6.4kVDC/sec Isolation in Compact size
Low isolation capacitance (10pF max.)
