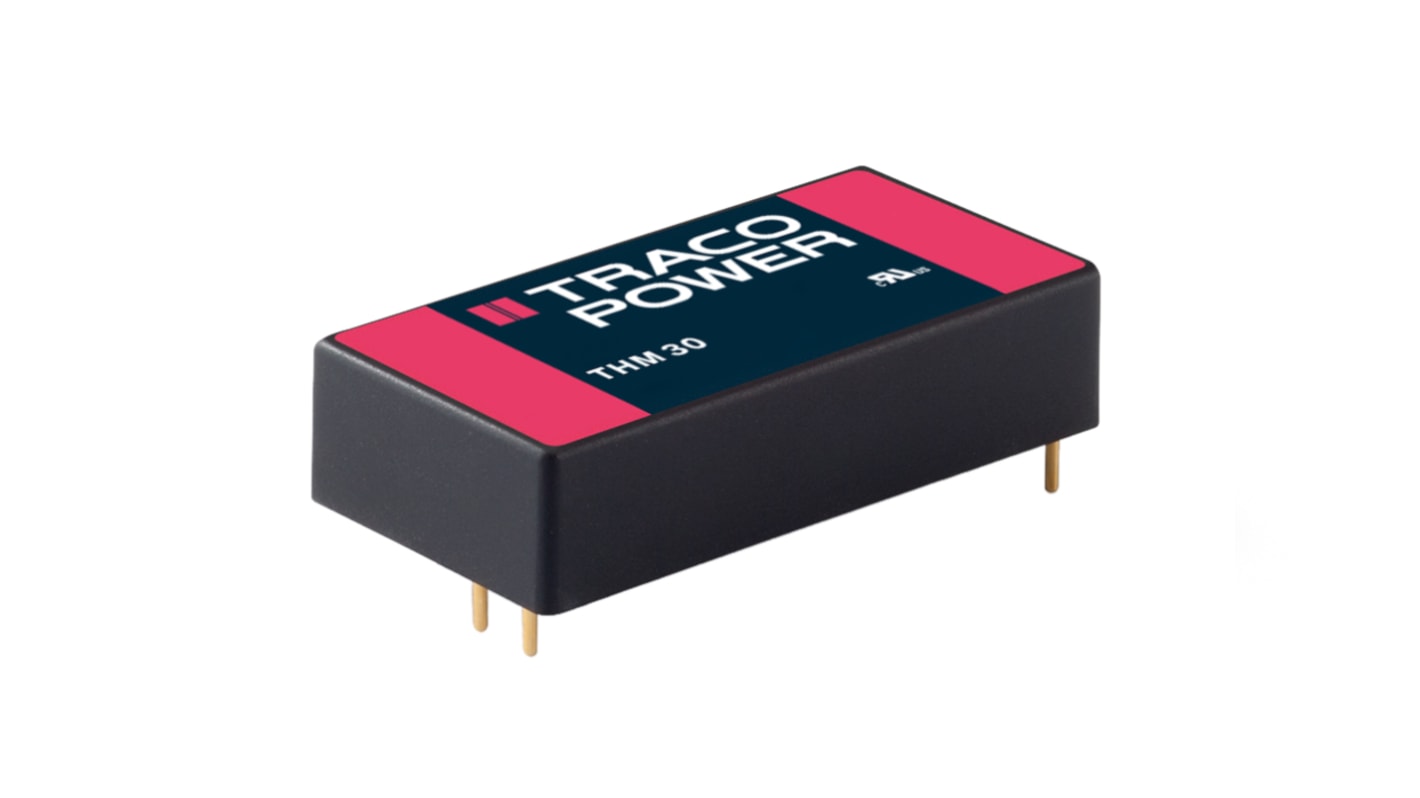

TRACOPOWER THM 30 DC/DC Converter, 24V dc/ 1.25 A, 36V dc Input, 18V Input 30 W, Through Hole, 80 °C Max Temp -40 °C Min

View all DC-DC Converters
Bulk discount available

Subtotal (1 tube of 10 units)*

£743.74

(exc. VAT)

£892.49

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 2 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Tube(s)
Per Tube
Per unit*
1 - 4£743.74£74.374
5 - 9£721.42£72.142
10 - 24£699.11£69.911
25 - 49£669.37£66.937
50 +£639.62£63.962

*price indicative

RS Stock No.:
165-1202
Mfr. Part No.:
THM 30-2415
Brand:
TRACOPOWER
Find similar products by selecting one or more attributes.
Select all

Brand

TRACOPOWER

Output Voltage 1

24V dc

Product Type

DC/DC Converter

Minimum Input Voltage

18V

Maximum Input Voltage

36V dc

Output Current 1

1.25A

Mount Type

Through Hole

Input Ratio

2:1

Number of Outputs

1

MTBF

1137000h

Output Voltage Adjustment Range

20 %

Isolation Voltage

5kV ac

Number of Pins

6

Package Type

Plastic Case

Maximum Output Power

30W

Length

50.8mm

Depth

10.2mm

Series

THM 30

Width

25.4mm

Standards/Approvals

No

Maximum Operating Temperature

80°C

Efficiency

90%

Minimum Operating Temperature

-40°C

COO (Country of Origin):
TW

TRACOPOWER THM 30 Series DC-DC Converter, 24V Voltage Rating, 1.25A Output Current - THM 30-2415


This isolated DC-DC converter provides an efficient solution with a nominal output voltage of 24V DC. The Compact dimensions of 50.8mm x 25.4mm x 10.2mm ensure easy integration into your design. With a power rating of 30W and a wide input voltage range of 18 to 36V DC, this converter is engineered for various demanding applications.

Features & Benefits


• High efficiency of up to 90% reduces energy waste

• Low leakage current under 2.5 00B5 (μ) A enhances safety

• Supports voltage adjustment from -10% to +20% for flexibility

• Broad operating temperature of -40°C to +80°C withstands extreme conditions

• Compliant with multiple industry standards for Trust in performance

Applications


• Ideal for automation systems needing reliable power conversion

• Suitable for control and measurement devices in high-stakes environments

• Utilised in transportation ensuring robust operation

• Perfect for IGBT drivers in demanding electronic setups

What protection features are included to enhance durability?


This model incorporates continuous short circuit protection with automatic recovery, ensuring it remains operational under fault conditions. Overvoltage protection is also built in, further enhancing reliability.

How does this converter ensure safety in medical applications?


It meets IEC/EN/ES 60601-1 3rd edition standards and features two means of patient protection (2 x MOPP), which is critical for medical-grade applications. The design includes a risk management file following ISO 14971, providing comprehensive safety assurance.

What is the maximum altitude at which operation is supported?


The operating altitude for this converter can reach up to 5000m, allowing it to be used in various high-altitude applications without performance degradation.

How adaptable is the voltage output for various applications?


The output voltage can be adjusted from -10% to +20%, enabling fine-tuning to meet diverse operational requirements across different applications.

Can this converter be mounted easily in tight spaces?


Yes, it features a through-hole mounting type, facilitating straightforward and secure installation on PCB layouts even in Compact environments.
