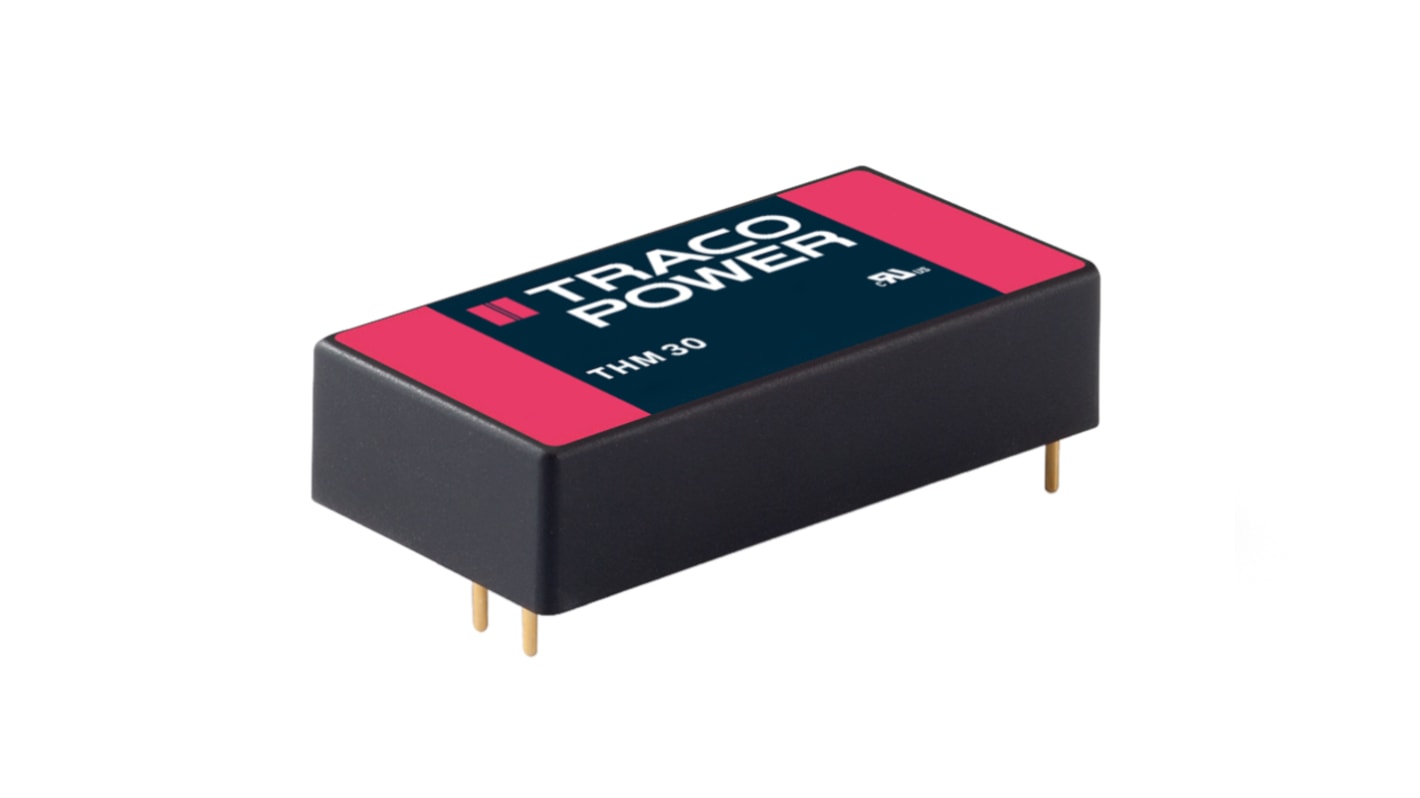

TRACOPOWER THM 30 DC-DC Converter, 12V dc/ 2.5A Output, 18 → 36 V dc Input, 30W, PCB Mount, +80°C Max Temp -40°C

RS Stock No.:: 165-1200
Mfr. Part No.:: THM 30-2412
Brand:: TRACOPOWER

TRACOPOWER THM 30 DC-DC Converter, 12V dc/ 2.5A Output, 18 → 36 V dc Input, 30W, PCB Mount, +80°C Max Temp -40°C

Bulk discount available

Subtotal (1 tube of 10 units)*

£736.48

(exc. VAT)

£883.78

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

Shipping from 19 February 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Tube(s)	Per Tube	Per unit*
1 - 4	£736.48	£73.648
5 - 9	£714.39	£71.439
10 - 24	£692.28	£69.228
25 - 49	£662.84	£66.284
50 +	£633.38	£63.338

*price indicative

RS Stock No.:: 165-1200
Mfr. Part No.:: THM 30-2412
Brand:: TRACOPOWER

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	TRACOPOWER
	Output Voltage	12V dc
	Input Voltage Range	18 → 36 V dc
	Power Rating	30W
	Input Voltage Nominal	24 V dc
	Output Current	2.5A
	Mounting Type	PCB Mount
	Isolated	Yes
	Number of Outputs	1
	Output Voltage Adjustment Range	±10%
	Package	2 x 1 in
	Isolation Voltage	5kV ac
	Width	25.4mm
	Depth	10.2mm
	Length	50.8mm
	Series	THM 30
	Load Regulation	0.002
	Standards Met	ANSI/AAMI ES 60601-1, CB Scheme IEC 60601-1, cULus Recognised, EMC, EN 55011, EN 55032, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, ES60601-1, IEC 60601-1-2, IEC/EN 60601-1, MIL-STD-810F
	Maximum Temperature	+80°C
	Efficiency	89%
	Minimum Temperature	-40°C
	Medical Approved	Yes

	Select all
	Brand TRACOPOWER
	Output Voltage 12V dc
	Input Voltage Range 18 → 36 V dc
	Power Rating 30W
	Input Voltage Nominal 24 V dc
	Output Current 2.5A
	Mounting Type PCB Mount
	Isolated Yes
	Number of Outputs 1
	Output Voltage Adjustment Range ±10%
	Package 2 x 1 in
	Isolation Voltage 5kV ac
	Width 25.4mm
	Depth 10.2mm
	Length 50.8mm
	Series THM 30
	Load Regulation 0.002
	Standards Met ANSI/AAMI ES 60601-1, CB Scheme IEC 60601-1, cULus Recognised, EMC, EN 55011, EN 55032, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, ES60601-1, IEC 60601-1-2, IEC/EN 60601-1, MIL-STD-810F
	Maximum Temperature +80°C
	Efficiency 89%
	Minimum Temperature -40°C
	Medical Approved Yes

COO (Country of Origin):: TW

TRACOPOWER THM 30 Series DC-DC Converter, 12V DC Output Voltage, 30W Power Rating - THM 30-2412

This isolated DC-DC converter delivers an efficient power conversion solution for various applications. It accommodates a wide input voltage range of 18 to 36V, making it appropriate for industrial and medical settings. Its robust performance is designed to maintain stability in challenging environments, which is essential in automation and electronic systems.

Features & Benefits

• Operation efficiency of up to 90%
• Low leakage current for enhanced safety in medical applications
• Operating temperature range of -40 to +80°C
• Single output voltage adjustable by ±10%
• Reinforced insulation rated at 5000V AC
• Compliance with multiple international safety standards

Applications

• Medical equipment requiring high reliability
• Transportation systems that need stable power
• Control and measurement devices for precise functioning
• IGBT drivers necessitating robust power solutions

What input current should be expected at no load?

For 12V input models, the typical no-load current is about 11mA.

How does the converter perform at high altitudes?

This unit functions effectively up to altitudes of 5000m, maintaining performance stability.

What protections does it offer against output faults?

The device features automatic recovery for short circuits and includes overvoltage protection.
