Recom REM3 DC-DC Converter, 5V dc/ 600mA Output, 5.5 → 9 V dc Input, 3W, Through Hole, +105°C Max Temp -40°C Min
- RS Stock No.:
- 162-2763
- Mfr. Part No.:
- REM3-0505S/A
- Brand:
- Recom
Available to back order for despatch 02/08/2024
Price 1 Tube of 7
£376.17
(exc. VAT)
£451.40
(inc. VAT)
Tube(s) | Per Tube | Per unit* |
1 - 4 | £376.17 | £53.739 |
5 - 9 | £364.88 | £52.126 |
10 - 24 | £353.60 | £50.514 |
25 - 49 | £342.31 | £48.901 |
50 + | £331.03 | £47.29 |
*price indicative |
- RS Stock No.:
- 162-2763
- Mfr. Part No.:
- REM3-0505S/A
- Brand:
- Recom
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

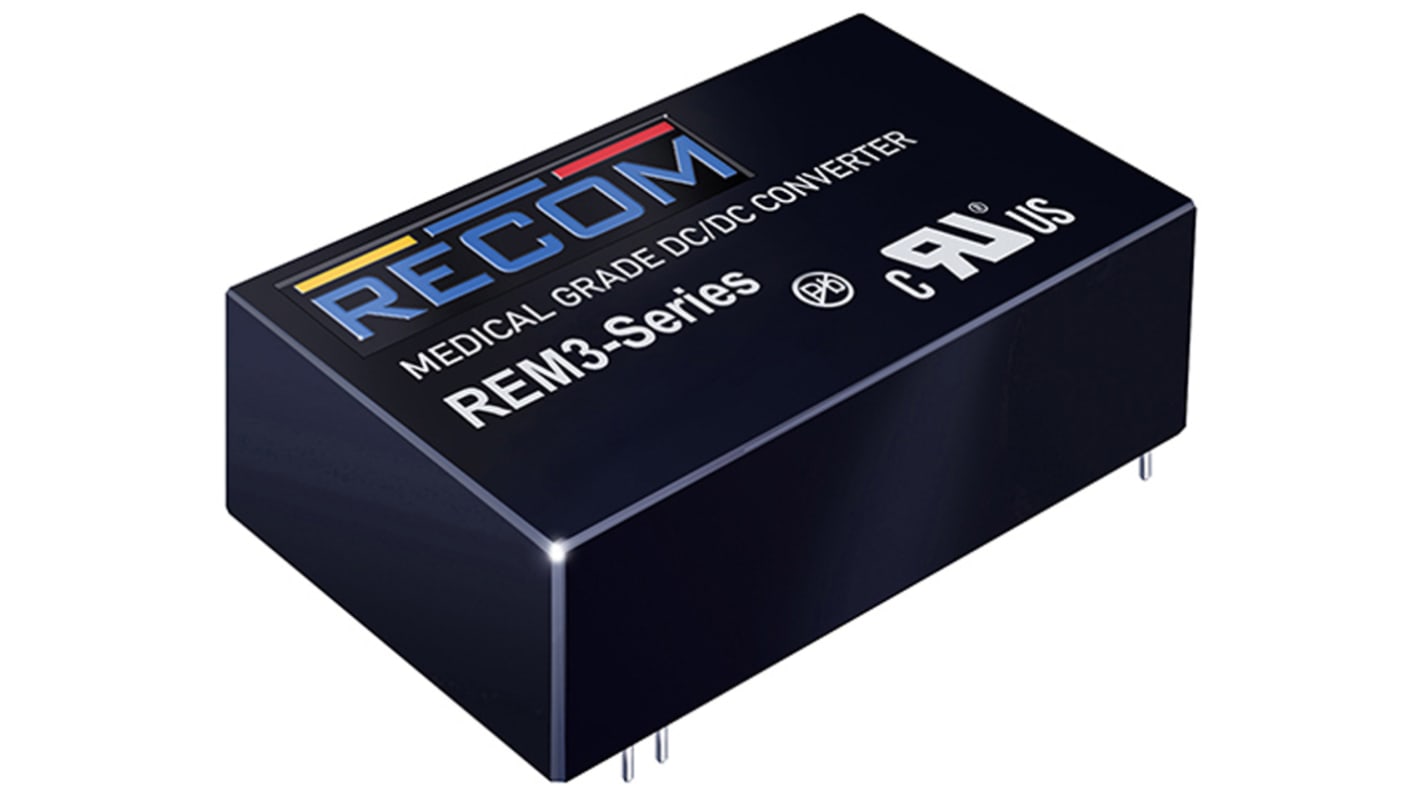

Recom 3W DIP Single/Dual Output Regulated Isolated Medical DC-DC Converter - REM3 Series
The Recom REM3 is a series of medical grade, regulated DC/DC converters, featuring reinforced 5kVAC/1 minute isolation, low 2μA leakage and are 60601-1 3rd Ed. certified for 250VAC continuous working. The compact DIP24 package of these DC-DC converters offers tightly regulated single and dual outputs, even under no-load conditions. The outputs of the REM3 Series of converters are short circuit and overload protected. The DC-DC converters are fully certified to CB, IEC/EN and ANSI/AAMI standards and carry the CE and UL marks.
Reinforced Insulation for 250VAC Working Voltage
Clearance and Creepage Distance: 8mm
5kVAC I/P to O/P 2MOPP Isolation
2μA Patient Leakage Current
Industry Standard Pinout
2:1 and 4:1 Wide Input Range
Clearance and Creepage Distance: 8mm
5kVAC I/P to O/P 2MOPP Isolation
2μA Patient Leakage Current
Industry Standard Pinout
2:1 and 4:1 Wide Input Range
Standards
UL-60950-1, EN-55011, EN-55022, IEC/EN-60950-1, IEC/EN-60601-1
Approvals
CB, IEC/EN, ANSI/AAMI, CE and UL
Specifications
Attribute | Value |
---|---|
Output Voltage | 5V dc |
Input Voltage Range | 5.5 → 9 V dc |
Power Rating | 3W |
Input Voltage Nominal | 5 V dc |
Output Current | 600mA |
Mounting Type | Through Hole |
Isolated | Yes |
Number of Outputs | 1 |
Output Voltage Adjustment Range | ±10% |
Package | DIP 24 |
Isolation Voltage | 5kV ac |
Width | 20.3mm |
Length | 31.8mm |
Depth | 10.4mm |
Series | REM3 |
Load Regulation | ±0.2% |
Maximum Temperature | +105°C |
Minimum Temperature | -40°C |
Standards Met | ANSI/AAMI ES60601-1 Standard, ANSI/AAMI File Number E314885-A6, CAN/CSA Medical C22.2 No. 60601-1:08 Standard, CAN/CSA Medical File Number E314885, CB Medical File Number E314885-A6, CB Medical IEC-60601-1 Standard, CE Certified, Conducted Immunity EN6100 |
Efficiency | 84 %, 84.5 % |
