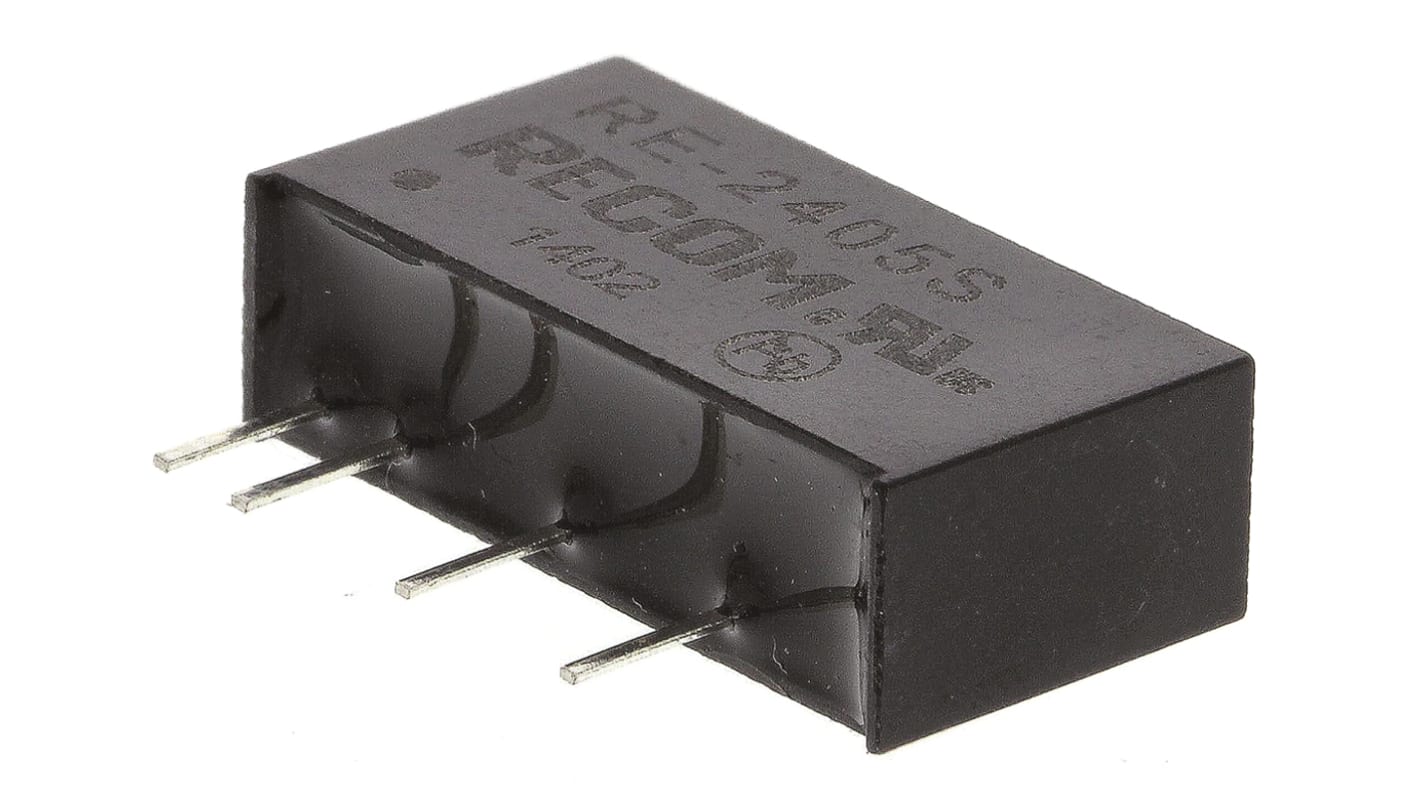

Recom RE DC/DC Converter, 5V dc/ 200 mA, 26.4V dc Input, 21.6V Input 1 W, Through Hole, 85 °C Max Temp -40 °C Min Temp,
- RS Stock No.:
- 162-2667
- Mfr. Part No.:
- RE-2405S
- Brand:
- Recom
Bulk discount available
Subtotal (1 tube of 25 units)*
£151.08
(exc. VAT)
£181.30
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 1 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £151.08 | £6.043 |
| 5 - 9 | £146.54 | £5.862 |
| 10 - 24 | £142.01 | £5.68 |
| 25 - 49 | £137.48 | £5.499 |
| 50 + | £132.95 | £5.318 |
*price indicative
- RS Stock No.:
- 162-2667
- Mfr. Part No.:
- RE-2405S
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Output Voltage 1 | 5V dc | |
| Product Type | DC/DC Converter | |
| Minimum Input Voltage | 21.6V | |
| Maximum Input Voltage | 26.4V dc | |
| Output Current 1 | 200mA | |
| Mount Type | Through Hole | |
| Number of Outputs | 1 | |
| MTBF | 992h | |
| Number of Pins | 7 | |
| Isolation Voltage | 1kV dc | |
| Package Type | SIP | |
| Maximum Output Power | 1W | |
| Depth | 10.2mm | |
| Width | 6mm | |
| Standards/Approvals | No | |
| Length | 19.6mm | |
| Series | RE | |
| Minimum Operating Temperature | -40°C | |
| Efficiency | 80% | |
| Maximum Operating Temperature | 85°C | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Output Voltage 1 5V dc | ||
Product Type DC/DC Converter | ||
Minimum Input Voltage 21.6V | ||
Maximum Input Voltage 26.4V dc | ||
Output Current 1 200mA | ||
Mount Type Through Hole | ||
Number of Outputs 1 | ||
MTBF 992h | ||
Number of Pins 7 | ||
Isolation Voltage 1kV dc | ||
Package Type SIP | ||
Maximum Output Power 1W | ||
Depth 10.2mm | ||
Width 6mm | ||
Standards/Approvals No | ||
Length 19.6mm | ||
Series RE | ||
Minimum Operating Temperature -40°C | ||
Efficiency 80% | ||
Maximum Operating Temperature 85°C | ||
- COO (Country of Origin):
- TW
RECOM DC-DC Converter, 2.2g Weight, 95% Maximum Relative Humidity - RE Series - RE-2405S
Looking for a device to deliver effective power distribution in your electrical setup? This DC-DC converter from RECOM does the job. It offers 80% efficiency when at full load, so rest assured waste is kept to a minimum. Your circuitry is protected from hazardous surges as the unit has inbuilt 1kV DC isolation, reducing unexpected downtimes. For a consistent performance, you can rely on a ±5% output voltage accuracy. The converter's through-hole mounting creates a secure and permanent connection that adds stability even in high-impact settings.
Features & Benefits
• MTBF of 992,000 hours offers longevity
• Self-extinguishing housing means burning stops inside 10 seconds if there's a fire
• Compact dimensions of 19.6 (L) x 6 (W) x 10.2mm (D) for use in confined spaces
• Input voltage range between 21.6 and 26.4V DC provides versatility
• 200mA output current suits heavy-duty applications
Applications
• Mechanical workshops
• Consumer electronics
• Medical equipment
What's the operating temperature range of this DC-DC converter?
It operates in a broad temperature range between -40°C and +85°C for use in harsh industrial conditions.
