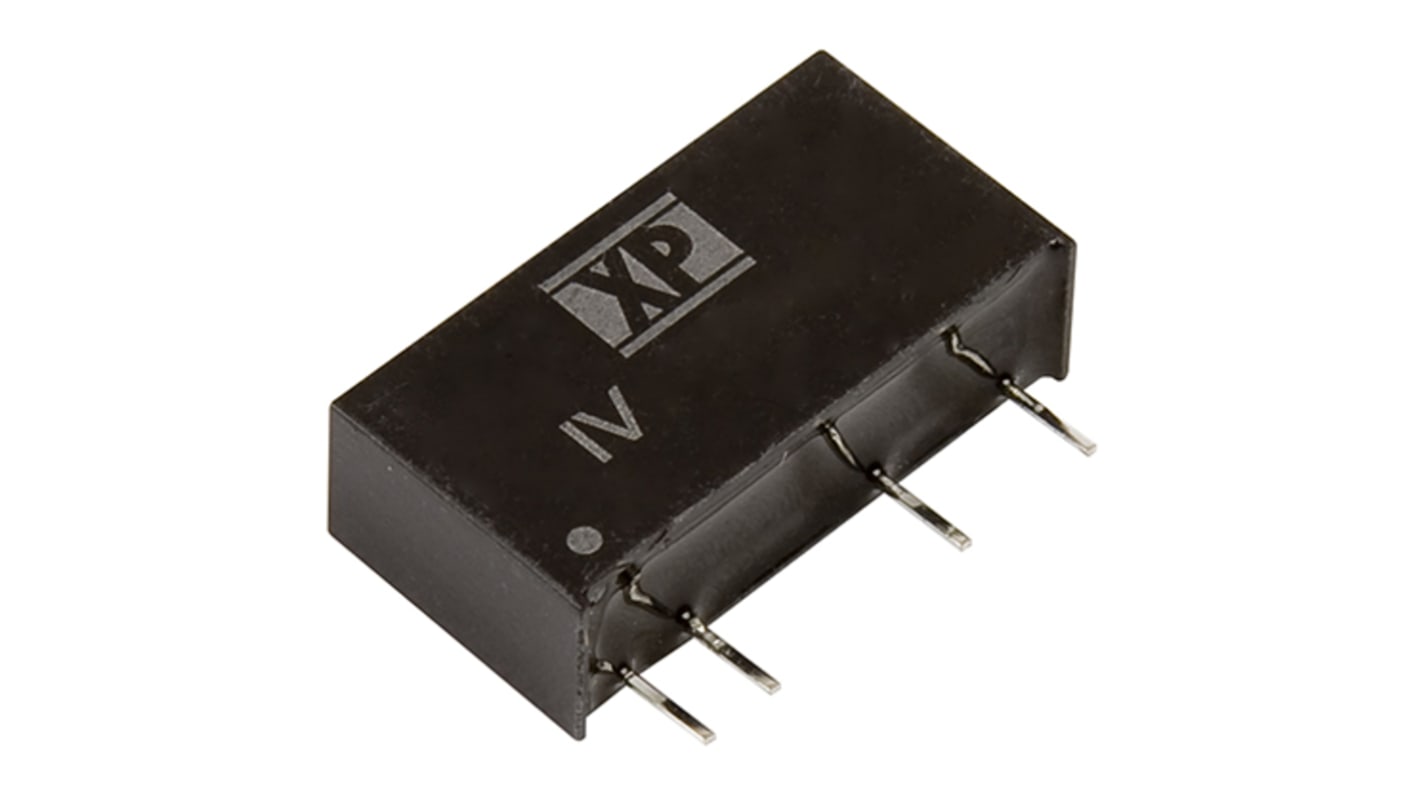

XP Power IV DC-DC Converter, 15V dc/ 66mA Output, 4.5 → 5.5 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C
- RS Stock No.:
- 161-9150
- Mfr. Part No.:
- IV0515SA
- Brand:
- XP Power
Bulk discount available
Subtotal (1 tube of 20 units)*
£123.80
(exc. VAT)
£148.56
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £123.80 | £6.19 |
| 5 - 9 | £120.08 | £6.004 |
| 10 - 24 | £116.37 | £5.818 |
| 25 - 49 | £112.65 | £5.632 |
| 50 + | £108.94 | £5.447 |
*price indicative
- RS Stock No.:
- 161-9150
- Mfr. Part No.:
- IV0515SA
- Brand:
- XP Power
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Output Voltage | 15V dc | |
| Input Voltage Range | 4.5 → 5.5 V dc | |
| Power Rating | 1W | |
| Input Voltage Nominal | 5 V dc | |
| Output Current | 66mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | SIP | |
| Isolation Voltage | 3kV dc | |
| Length | 19.5mm | |
| Width | 6mm | |
| Depth | 10mm | |
| Series | IV | |
| Load Regulation | ±10% | |
| Minimum Temperature | -40°C | |
| Efficiency | 76% | |
| Maximum Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand XP Power | ||
Output Voltage 15V dc | ||
Input Voltage Range 4.5 → 5.5 V dc | ||
Power Rating 1W | ||
Input Voltage Nominal 5 V dc | ||
Output Current 66mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package SIP | ||
Isolation Voltage 3kV dc | ||
Length 19.5mm | ||
Width 6mm | ||
Depth 10mm | ||
Series IV | ||
Load Regulation ±10% | ||
Minimum Temperature -40°C | ||
Efficiency 76% | ||
Maximum Temperature +85°C | ||
