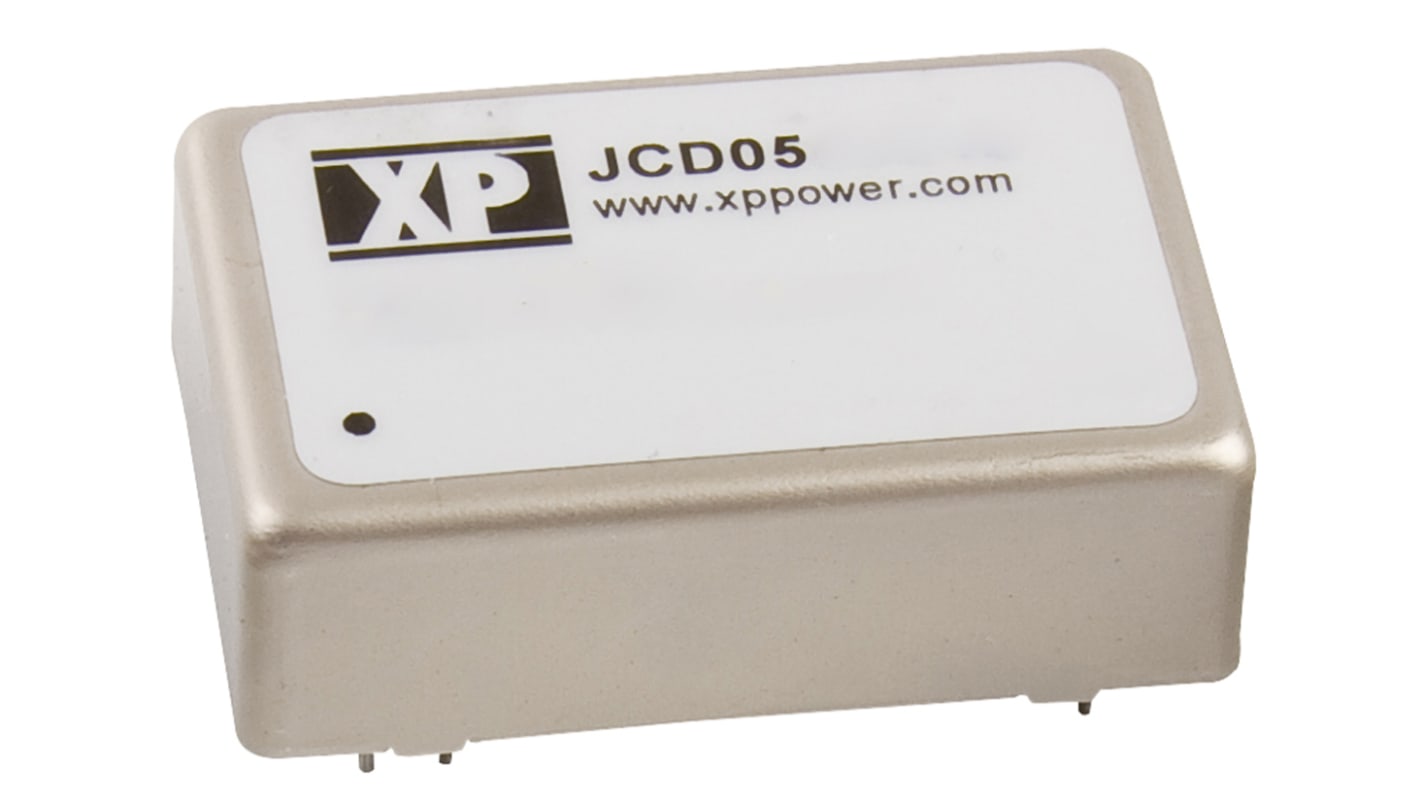

XP Power JCD DC-DC Converter, ±24V dc/ ±100mA Output, 18 → 36 V dc Input, 5W, Through Hole, +100°C Max Temp
- RS Stock No.:
- 161-8904
- Mfr. Part No.:
- JCD0524D24
- Brand:
- XP Power
Available to back order for despatch 20/09/2024
Price 1 Tube of 10
£147.78
(exc. VAT)
£177.34
(inc. VAT)
| Tube(s) | Per Tube | Per unit* |
| 1 - 4 | £147.78 | £14.778 |
| 5 - 9 | £143.35 | £14.335 |
| 10 - 24 | £138.91 | £13.891 |
| 25 - 49 | £134.48 | £13.448 |
| 50 + | £130.05 | £13.005 |
| *price indicative | ||
- RS Stock No.:
- 161-8904
- Mfr. Part No.:
- JCD0524D24
- Brand:
- XP Power
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
XP Power - JCD Series of 4 W to 6 W Isolated DC-DC Converters
The JCD series from XP Power offers a highly reliable range of single and dual output, 4 W to 6 W, isolated DC-DC converters. The range attributes 1600 VDC in isolation, continuous short circuit protection and a high efficiency of up to 85%. The series also has a 2:1 input range and is available in a compact, industry standard package.
4 W to 6 W, isolated DC-DC converters
Compact, industry standard package
2:1 input range
1600 VDC in isolation
Single and dual output
High efficiency up to 85%
Continuous short circuit protection
Board mount
-40 °C to +100 °C Operating temperature
Compact, industry standard package
2:1 input range
1600 VDC in isolation
Single and dual output
High efficiency up to 85%
Continuous short circuit protection
Board mount
-40 °C to +100 °C Operating temperature
XP Power - Isolated DC-DC Converters
Specifications
Attribute | Value |
|---|---|
| Output Voltage | ±24V dc |
| Input Voltage Range | 18 → 36 V dc |
| Power Rating | 5W |
| Input Voltage Nominal | 24 V dc |
| Output Current | ±100mA |
| Mounting Type | Through Hole |
| Isolated | Yes |
| Number of Outputs | 2 |
| Output Voltage Adjustment Range | ±23.76 V dc, ±24.24V dc |
| Package | DIP 24 |
| Isolation Voltage | 1.6kV dc |
| Depth | 10.4mm |
| Width | 20.32mm |
| Length | 31.75mm |
| Series | JCD |
| Load Regulation | ±0.5% |
| Maximum Temperature | +100°C |
| Standards Met | EN 55022, EN 61000-4-2, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-STD-217F |
| Minimum Temperature | -40°C |
