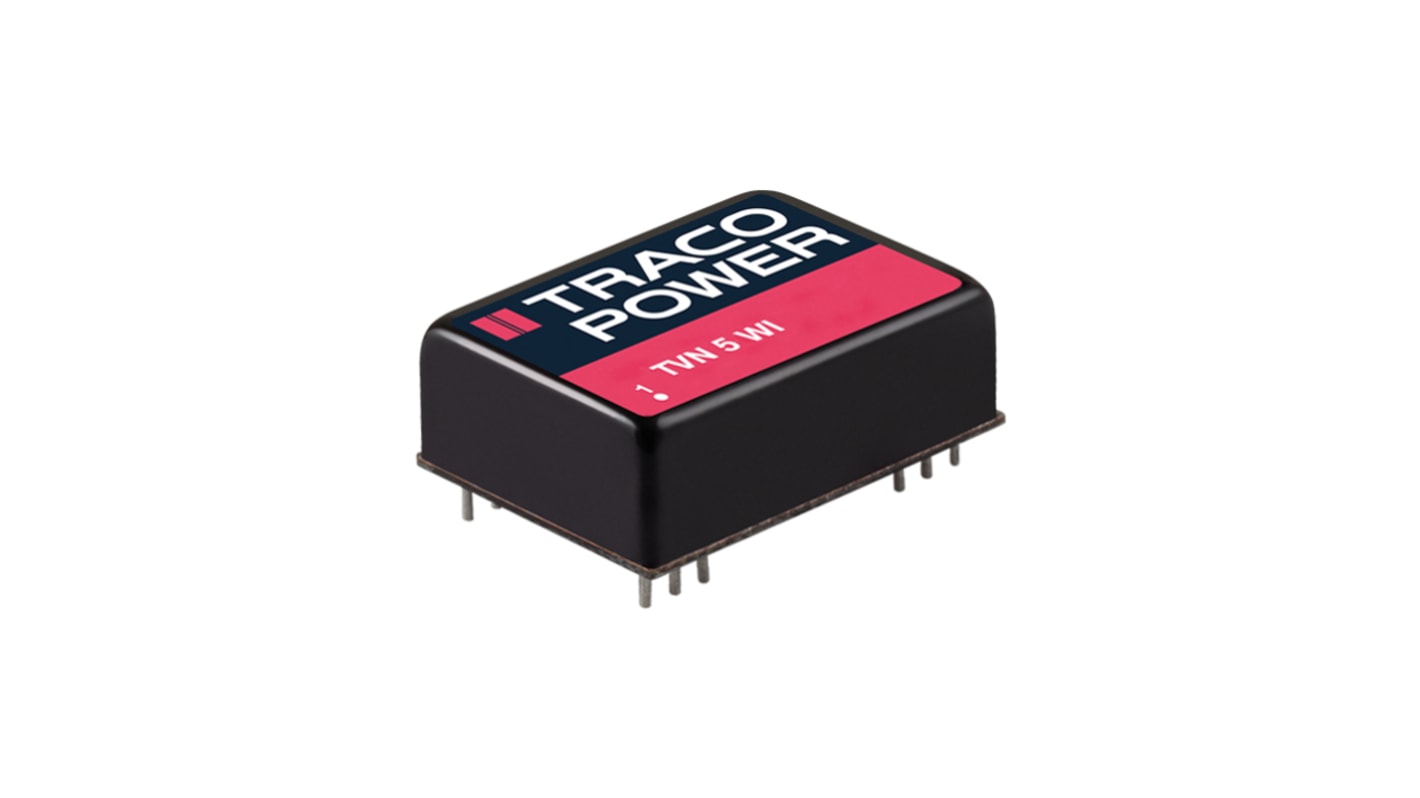

TRACOPOWER TVN 5WI DC/DC Converter, 24V dc/ 104 mA, 75V dc Input, 18V Input 5 W, Through Hole, 90 °C Max Temp -40 °C Min
- RS Stock No.:
- 146-5979
- Mfr. Part No.:
- TVN 5-4825WI
- Brand:
- TRACOPOWER
Subtotal (1 tube of 10 units)*
£414.65
(exc. VAT)
£497.58
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 02 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 + | £414.65 | £41.465 |
*price indicative
- RS Stock No.:
- 146-5979
- Mfr. Part No.:
- TVN 5-4825WI
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Product Type | DC/DC Converter | |
| Output Voltage 1 | 24V dc | |
| Maximum Input Voltage | 75V dc | |
| Minimum Input Voltage | 18V | |
| Output Current 1 | 104mA | |
| Output Current 2 | 104mA | |
| Mount Type | Through Hole | |
| Output Voltage 2 | -24V dc | |
| Number of Outputs | 2 | |
| MTBF | 4400000h | |
| Output Voltage Adjustment Range | ±21.6 V dc, ±26.4 V dc | |
| Number of Pins | 12 | |
| Isolation Voltage | 1.6kV dc | |
| Maximum Output Power | 5W | |
| Package Type | DIP | |
| Series | TVN 5WI | |
| Depth | 10.2mm | |
| Standards/Approvals | No | |
| Length | 32mm | |
| Width | 20mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 90°C | |
| Efficiency | 87% | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Product Type DC/DC Converter | ||
Output Voltage 1 24V dc | ||
Maximum Input Voltage 75V dc | ||
Minimum Input Voltage 18V | ||
Output Current 1 104mA | ||
Output Current 2 104mA | ||
Mount Type Through Hole | ||
Output Voltage 2 -24V dc | ||
Number of Outputs 2 | ||
MTBF 4400000h | ||
Output Voltage Adjustment Range ±21.6 V dc, ±26.4 V dc | ||
Number of Pins 12 | ||
Isolation Voltage 1.6kV dc | ||
Maximum Output Power 5W | ||
Package Type DIP | ||
Series TVN 5WI | ||
Depth 10.2mm | ||
Standards/Approvals No | ||
Length 32mm | ||
Width 20mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 90°C | ||
Efficiency 87% | ||
The TVN 5WI series is a ultra low ripple and noise 5 Watt dc/dc converter featuring wide 4:1 input voltage ranges in a DIP-24 package. Standard features include remote On/Off, over voltage protection, under voltage lockout and short circuit protection. High efficiency across load range and low input current characteristics at no load make these converters the ideal solution for many operations which require low ripple and noise characteristics.
I/O isolation 5000 VACrms rated for 250 VACrms working voltage
Certification according to IEC/EN/ES 60601-1 3rd edition for 2xMOPP
Risk management process according to ISO 14971 including risk management file
Extended operating temperature range –40°C to 85°C.
EMC compliance to IEC 60601-1-2 4th edition and EN55032 class A
