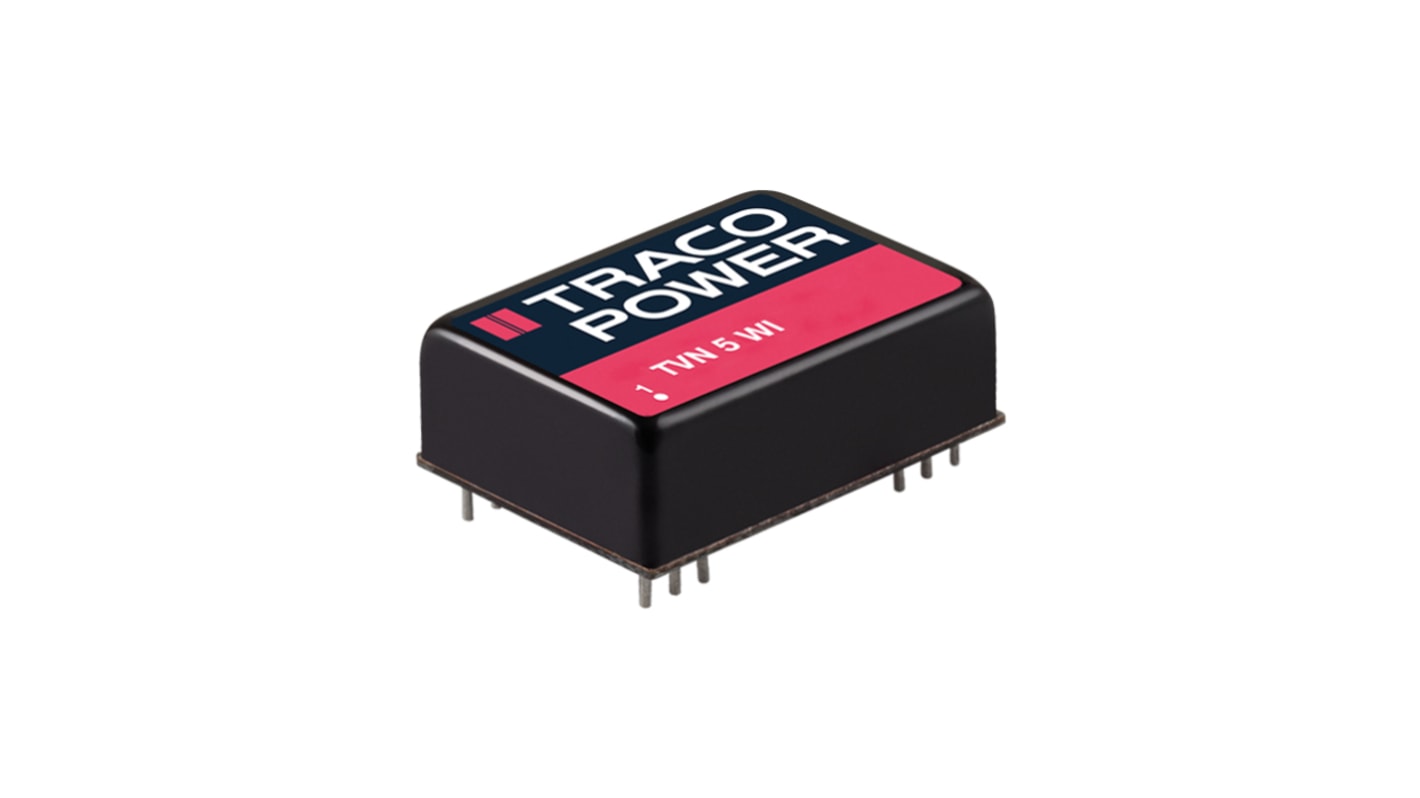

TRACOPOWER TVN 5WI DC/DC Converter, 5V dc/ 500 mA, 75V dc Input, 18V Input 5 W, Through Hole, 90 °C Max Temp -40 °C Min
- RS Stock No.:
- 146-5976
- Mfr. Part No.:
- TVN 5-4821WI
- Brand:
- TRACOPOWER
Bulk discount available
View bulk pricing optionsSubtotal (1 tube of 10 units)*
£523.49
(exc. VAT)
£628.19
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 09 February 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £523.49 | £52.349 |
| 5 - 9 | £507.78 | £50.778 |
| 10 - 24 | £492.08 | £49.208 |
| 25 - 49 | £471.14 | £47.114 |
| 50 + | £450.20 | £45.02 |
*price indicative
- RS Stock No.:
- 146-5976
- Mfr. Part No.:
- TVN 5-4821WI
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage 1 | 5V dc | |
| Product Type | DC/DC Converter | |
| Minimum Input Voltage | 18V | |
| Maximum Input Voltage | 75V dc | |
| Output Current 1 | 500mA | |
| Output Current 2 | 500mA | |
| Output Voltage 2 | -5V dc | |
| Mount Type | Through Hole | |
| MTBF | 4400000h | |
| Number of Outputs | 2 | |
| Output Voltage Adjustment Range | ±4.5 V dc, ±5.5 V dc | |
| Number of Pins | 12 | |
| Isolation Voltage | 1.6kV dc | |
| Maximum Output Power | 5W | |
| Package Type | DIP | |
| Length | 32mm | |
| Depth | 10.2mm | |
| Width | 20mm | |
| Standards/Approvals | No | |
| Series | TVN 5WI | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 90°C | |
| Efficiency | 83% | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 1 5V dc | ||
Product Type DC/DC Converter | ||
Minimum Input Voltage 18V | ||
Maximum Input Voltage 75V dc | ||
Output Current 1 500mA | ||
Output Current 2 500mA | ||
Output Voltage 2 -5V dc | ||
Mount Type Through Hole | ||
MTBF 4400000h | ||
Number of Outputs 2 | ||
Output Voltage Adjustment Range ±4.5 V dc, ±5.5 V dc | ||
Number of Pins 12 | ||
Isolation Voltage 1.6kV dc | ||
Maximum Output Power 5W | ||
Package Type DIP | ||
Length 32mm | ||
Depth 10.2mm | ||
Width 20mm | ||
Standards/Approvals No | ||
Series TVN 5WI | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 90°C | ||
Efficiency 83% | ||
- COO (Country of Origin):
- TW
The TVN 5WI series is a ultra low ripple and noise 5 Watt dc/dc converter featuring wide 4:1 input voltage ranges in a DIP-24 package. Standard features include remote On/Off, over voltage protection, under voltage lockout and short circuit protection. High efficiency across load range and low input current characteristics at no load make these converters the ideal solution for many operations which require low ripple and noise characteristics.
I/O isolation 5000 VACrms rated for 250 VACrms working voltage
Certification according to IEC/EN/ES 60601-1 3rd edition for 2xMOPP
Risk management process according to ISO 14971 including risk management file
Extended operating temperature range –40°C to 85°C.
EMC compliance to IEC 60601-1-2 4th edition and EN55032 class A
