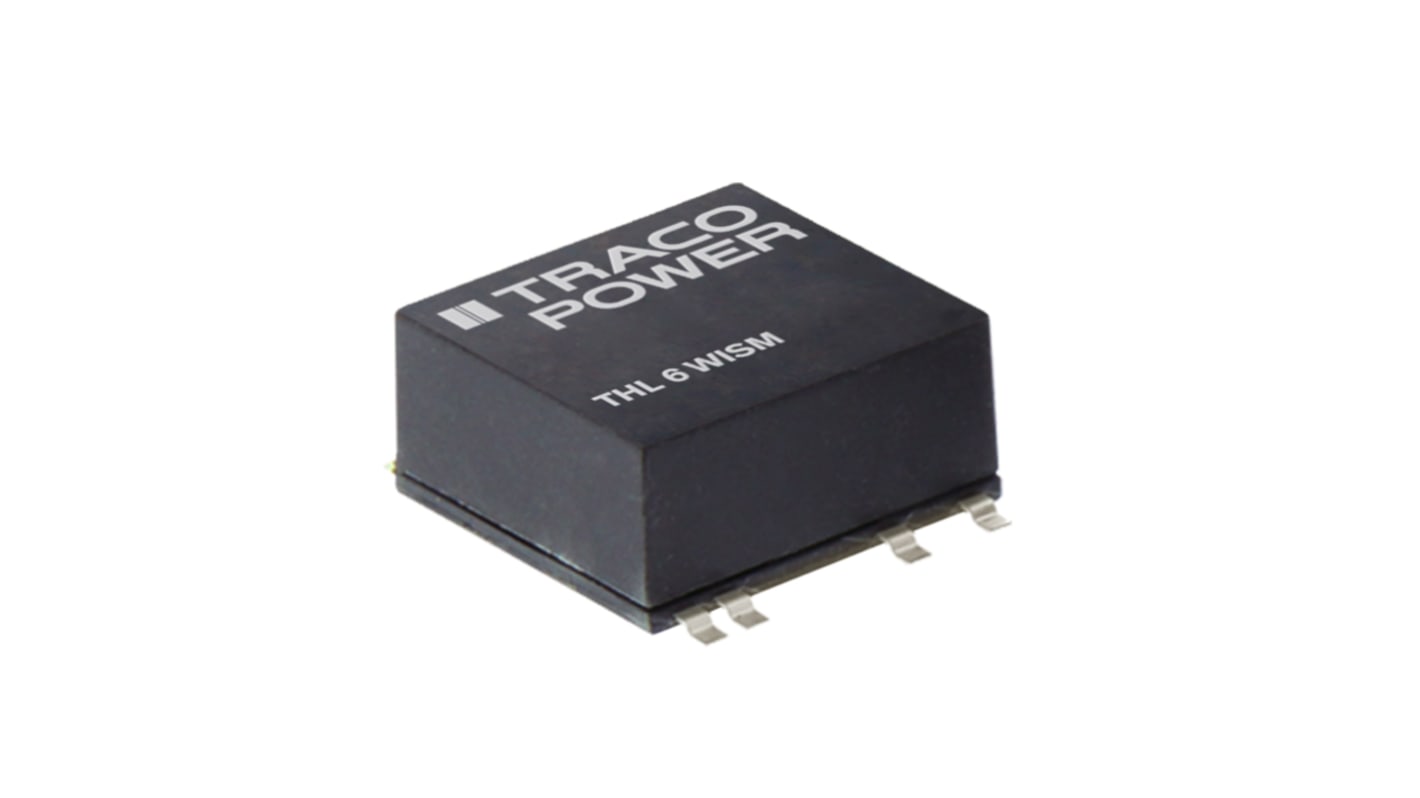

TRACOPOWER THL 6WISM DC-DC Converter, 3.3V dc/ 1.45A Output, 9 → 36 V dc Input, 6W, Surface Mount, +75°C Max

RS Stock No.:: 161-6563
Mfr. Part No.:: THL 6-2410WISM
Brand:: TRACOPOWER

TRACOPOWER THL 6WISM DC-DC Converter, 3.3V dc/ 1.45A Output, 9 → 36 V dc Input, 6W, Surface Mount, +75°C Max

Bulk discount available

Subtotal (1 tube of 10 units)**

£309.02

(exc. VAT)

£370.82

(inc. VAT)

1 In stock - FREE next working day delivery available*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Tube(s)	Per Tube	Per unit**
1 - 4	£309.02	£30.902
5 - 9	£299.75	£29.975
10 - 24	£290.48	£29.048
25 - 49	£278.11	£27.811
50 +	£265.76	£26.576

**price indicative

RS Stock No.:: 161-6563
Mfr. Part No.:: THL 6-2410WISM
Brand:: TRACOPOWER

Datasheet

Traco 6W SMD Single/Dual Output Regulated Isolated DC-DC Converter - THL 6WISM Series

THL 6WISM series SMD 6W DC/DC converters with fully regulated outputs. These SMD 3W DC/DC converters have an ultra wide 4:1 input voltage range and an internal filter that meets EN55022 Class A without external components. These DC/DC converters are ideal for use in data and telecom applications as well as in instrumentation and industrial electronics.

Compact SMD package
4:1 input voltage range
Fully regulated outputs
1500 Vdc I/O isolation
Short circuit protection
Remote On/Off control
Qualified for leadfree reflow solder process
EMC protection EN55022 level A, FCC part 15, level A without external components

Note

MTBF to MIL-HDBK-217F (25°C).
Load derating: 3% / K above +60°C

Standards

IEC 60950-1, UL 60950-1

TRACOPOWER THL 6WISM Series DC-DC Converter, 0.76 Efficiency, 1.5kV DC Isolation Voltage - THL 6-2410WISM

This DC-DC converter efficiently transforms a wide range of input voltages into a stable output. With its compact surface mount packaging and high output efficiency, it is well-suited for applications requiring dependable power conversion in constrained spaces. Its isolated design ensures necessary safety for sensitive electronic equipment, making it a vital component across various industrial and data communication sectors.

Features & Benefits

• Ultra-wide input voltage range enhances flexibility for various applications
• Fully regulated output guarantees consistent performance under different loads
• Isolated design increases safety for delicate electronics
• Compact SMD packaging saves space on PCBs
• Short circuit protection prevents damage and improves reliability
• High efficiency lowers energy consumption and thermal output

Applications

• Powering sensors and instrumentation devices
• Ideal for telecom equipment requiring stable voltage supply
• Suitable for compact power solutions in industrial electronics
• Utilised in automation systems for consistent performance
• Applicable in data processing units to maintain stable operations

What input voltage range can be used with this device?

It accepts input voltages from 9V DC to 36V DC.

How does the short circuit protection function?

It provides continuous protection with automatic recovery from faults.

Can I use it in a high-temperature environment?

Yes, it operates effectively within temperatures from -40°C to +75°C.

What is the significance of its isolated design?

The isolation enhances safety by preventing direct electrical contact between input and output.

Is it suitable for lead-free soldering processes?

Yes, it is qualified for lead-free reflow solder processes.

Attribute	Value
Output Voltage	3.3V dc
Input Voltage Range	9 → 36 V dc
Power Rating	6W
Input Voltage Nominal	24 V dc
Output Current	1.45A
Mounting Type	Surface Mount
Isolated	Yes
Number of Outputs	1
Package	SMD
Isolation Voltage	1.5kV dc
Depth	10.05mm
Length	22mm
Series	THL 6WISM
Load Regulation	±1.2%
Efficiency	76%
Minimum Temperature	-40°C
Maximum Temperature	+75°C
