TRACOPOWER THL 6WISM DC-DC Converter, ±5V dc/ ±600mA Output, 9 → 36 V dc Input, 6W, Surface Mount, +75°C Max

View all DC-DC Converters
Bulk discount available

Subtotal (1 tube of 10 units)*

£288.21

(exc. VAT)

£345.85

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 29 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s)
Per Tube
Per unit*
1 - 4£288.21£28.821
5 - 9£279.57£27.957
10 - 24£270.92£27.092
25 - 49£259.40£25.94
50 +£247.86£24.786

*price indicative

RS Stock No.:
166-5848
Mfr. Part No.:
THL 6-2421WISM
Brand:
TRACOPOWER
Find similar products by selecting one or more attributes.
Select all

Brand

TRACOPOWER

Output Voltage

±5V dc

Input Voltage Range

9 → 36 V dc

Power Rating

6W

Input Voltage Nominal

24 V dc

Output Current

±600mA

Mounting Type

Surface Mount

Isolated

Yes

Number of Outputs

2

Package

SMD

Isolation Voltage

1.5kV dc

Depth

10.05mm

Length

22mm

Series

THL 6WISM

Load Regulation

±1.2%

Efficiency

82%

Minimum Temperature

-40°C

Maximum Temperature

+75°C

COO (Country of Origin):
TW

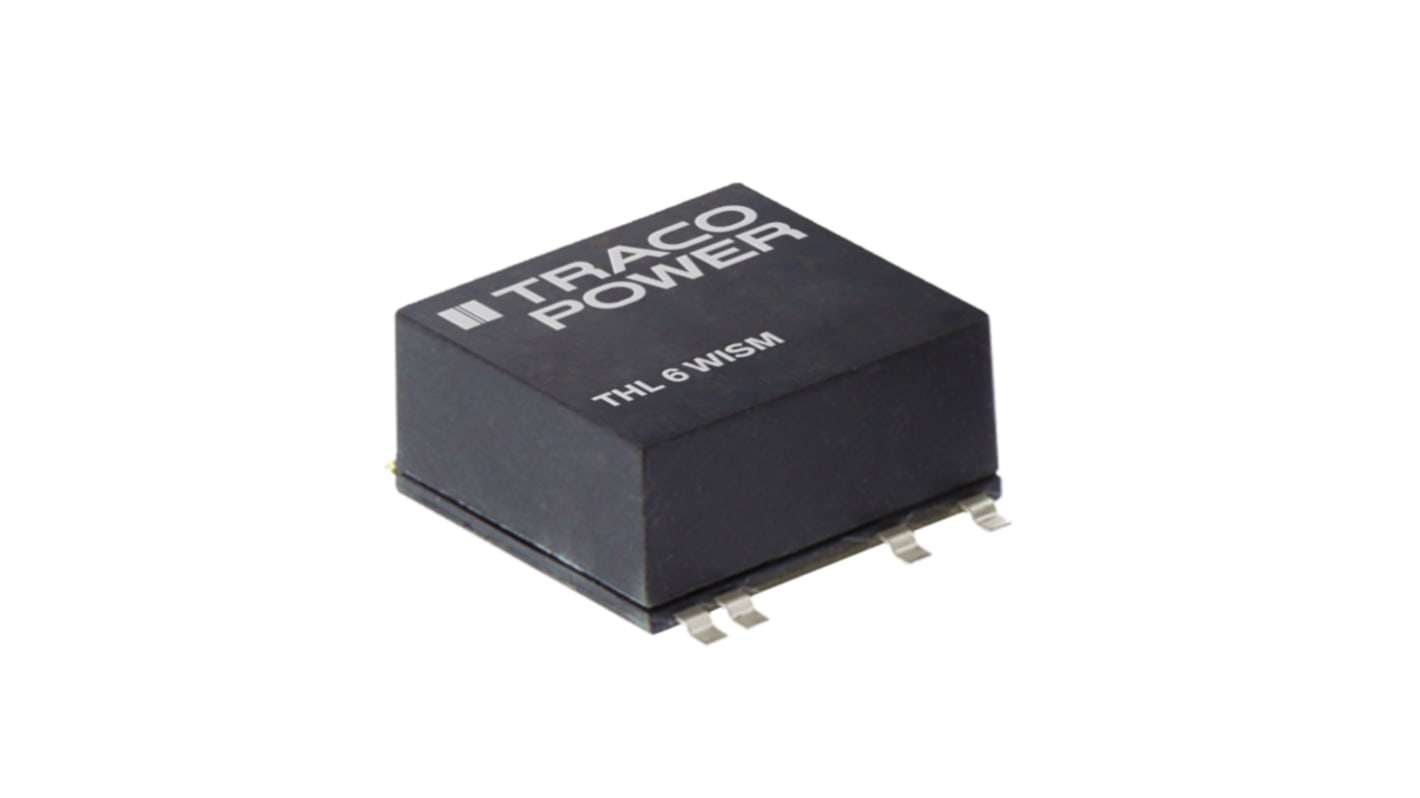

Traco 6W SMD Single/Dual Output Regulated Isolated DC-DC Converter - THL 6WISM Series


THL 6WISM series SMD 6W DC/DC converters with fully regulated outputs. These SMD 3W DC/DC converters have an ultra wide 4:1 input voltage range and an internal filter that meets EN55022 Class A without external components. These DC/DC converters are ideal for use in data and telecom applications as well as in instrumentation and industrial electronics.

Compact SMD package
4:1 input voltage range
Fully regulated outputs
1500 Vdc I/O isolation
Short circuit protection
Remote On/Off control
Qualified for leadfree reflow solder process
EMC protection EN55022 level A, FCC part 15, level A without external components

Note

MTBF to MIL-HDBK-217F (25°C).
Load derating: 3% / K above +60°C

Standards

IEC 60950-1, UL 60950-1
