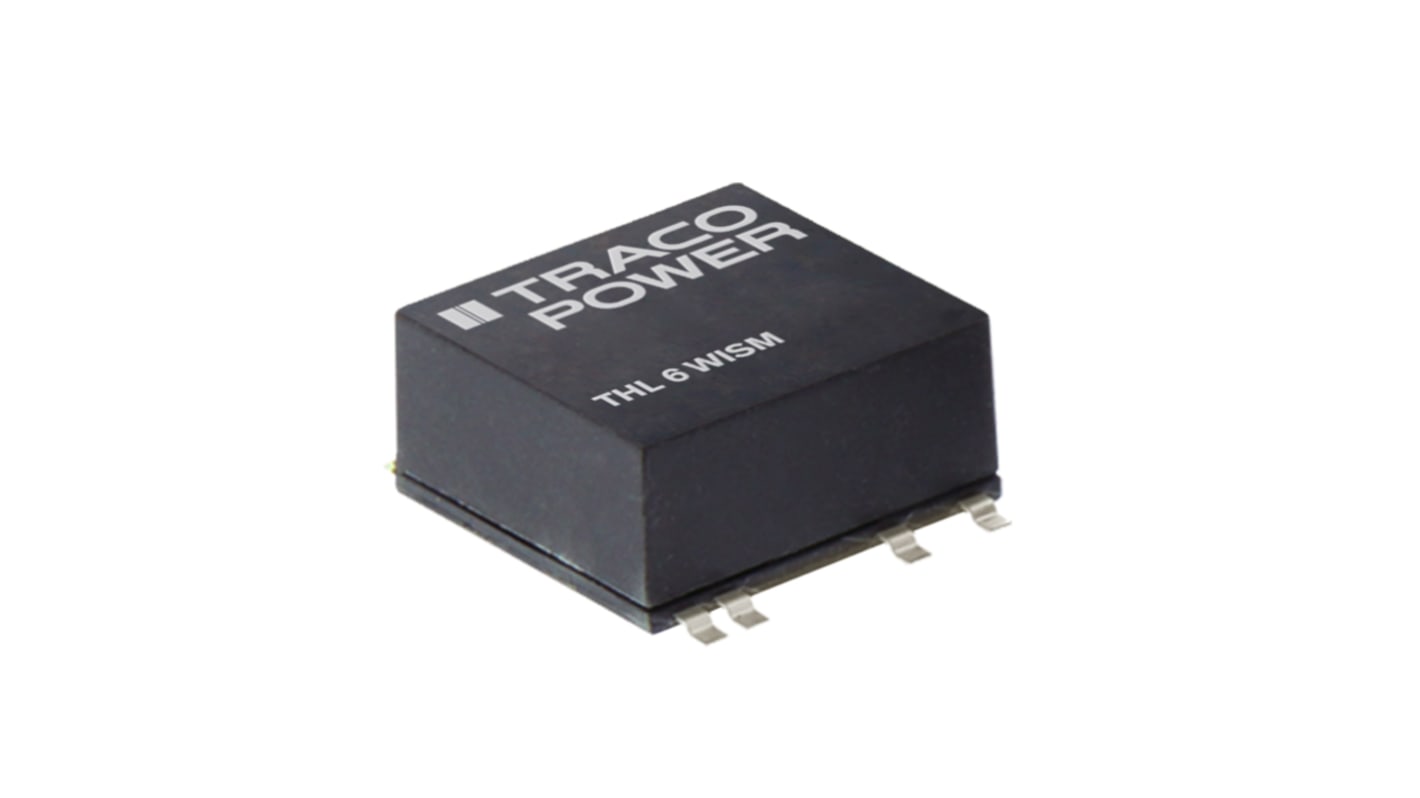

TRACOPOWER THL 6WISM DC-DC Converter, 24V dc/ 250mA Output, 9 → 36 V dc Input, 6W, Surface Mount, +75°C Max Temp
- RS Stock No.:
- 166-5846
- Mfr. Part No.:
- THL 6-2415WISM
- Brand:
- TRACOPOWER
5 In stock - FREE next working day delivery available
Price 1 Tube of 10
£262.64
(exc. VAT)
£315.17
(inc. VAT)
Tube(s) | Per Tube | Per unit* |
---|---|---|
1 - 4 | £262.64 | £26.264 |
5 - 9 | £254.76 | £25.476 |
10 - 24 | £246.88 | £24.688 |
25 - 49 | £236.38 | £23.638 |
50 + | £225.87 | £22.587 |
*price indicative
- RS Stock No.:
- 166-5846
- Mfr. Part No.:
- THL 6-2415WISM
- Brand:
- TRACOPOWER
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Traco 6W SMD Single/Dual Output Regulated Isolated DC-DC Converter - THL 6WISM Series
THL 6WISM series SMD 6W DC/DC converters with fully regulated outputs. These SMD 3W DC/DC converters have an ultra wide 4:1 input voltage range and an internal filter that meets EN55022 Class A without external components. These DC/DC converters are ideal for use in data and telecom applications as well as in instrumentation and industrial electronics.
Compact SMD package
4:1 input voltage range
Fully regulated outputs
1500 Vdc I/O isolation
Short circuit protection
Remote On/Off control
Qualified for leadfree reflow solder process
EMC protection EN55022 level A, FCC part 15, level A without external components
4:1 input voltage range
Fully regulated outputs
1500 Vdc I/O isolation
Short circuit protection
Remote On/Off control
Qualified for leadfree reflow solder process
EMC protection EN55022 level A, FCC part 15, level A without external components
Note
MTBF to MIL-HDBK-217F (25°C).
Load derating: 3% / K above +60°C
Load derating: 3% / K above +60°C
Standards
IEC 60950-1, UL 60950-1
Specifications
Attribute | Value |
---|---|
Output Voltage | 24V dc |
Input Voltage Range | 9 → 36 V dc |
Power Rating | 6W |
Input Voltage Nominal | 24 V dc |
Output Current | 250mA |
Mounting Type | Surface Mount |
Isolated | Yes |
Number of Outputs | 1 |
Package | SMD |
Isolation Voltage | 1.5kV dc |
Depth | 10.05mm |
Length | 22mm |
Series | THL 6WISM |
Load Regulation | ±1.2% |
Efficiency | 83% |
Minimum Temperature | -40°C |
Maximum Temperature | +75°C |
