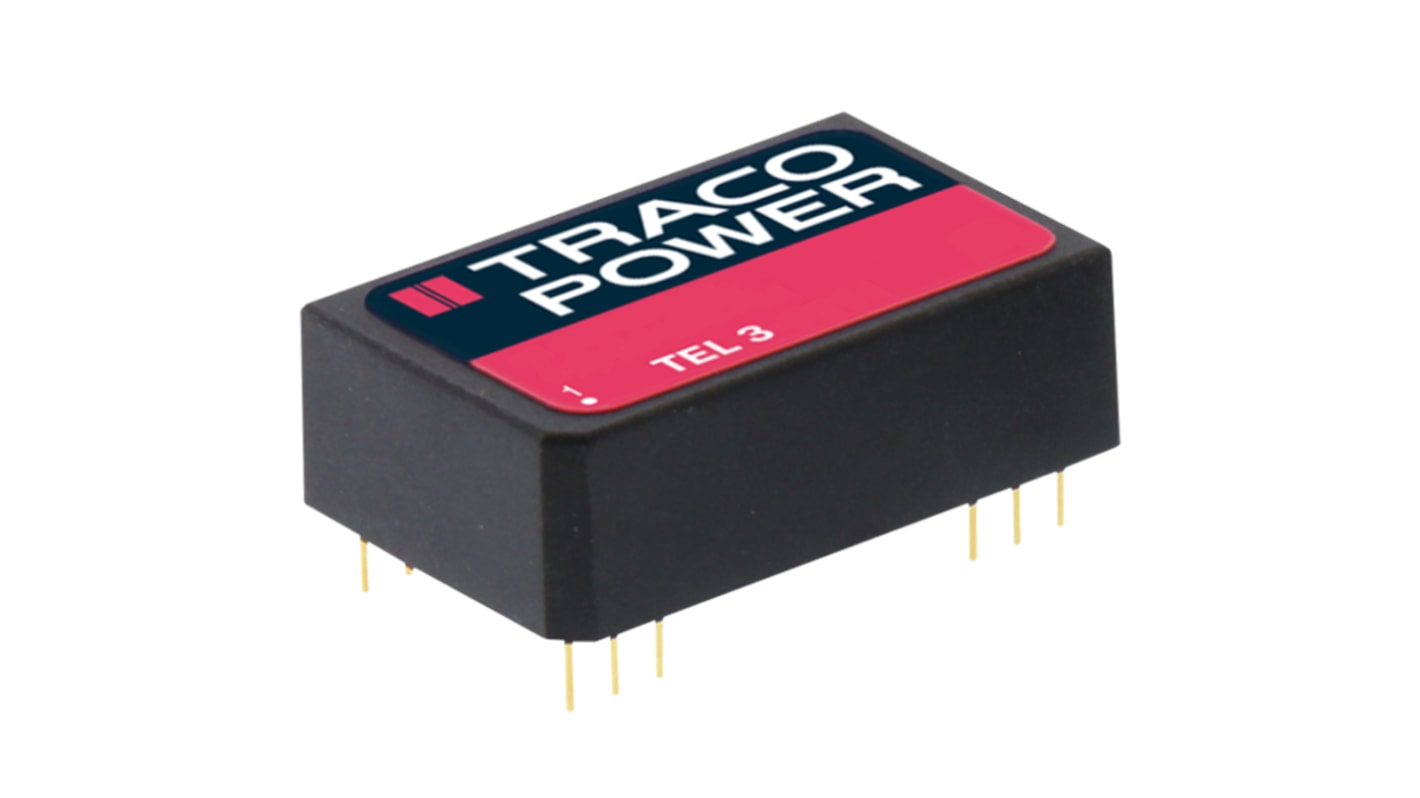

TRACOPOWER TEL 3 DC-DC Converter, 12V dc/ 250mA Output, 9 → 18 V dc Input, 3W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 161-6475
- Mfr. Part No.:
- TEL 3-1212
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£128.76
(exc. VAT)
£154.51
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship
- Plus 1 unit(s) shipping from 10 September 2025
- Plus 1 unit(s) shipping from 27 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £128.76 | £12.876 |
| 5 - 9 | £124.90 | £12.49 |
| 10 - 24 | £121.02 | £12.102 |
| 25 - 49 | £115.88 | £11.588 |
| 50 + | £110.72 | £11.072 |
*price indicative
- RS Stock No.:
- 161-6475
- Mfr. Part No.:
- TEL 3-1212
- Brand:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 12V dc | |
| Input Voltage Range | 9 → 18 V dc | |
| Power Rating | 3W | |
| Input Voltage Nominal | 12 V dc | |
| Output Current | 250mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | DIP 24 | |
| Isolation Voltage | 1.5kV dc | |
| Width | 20mm | |
| Depth | 10.2mm | |
| Length | 32mm | |
| Series | TEL 3 | |
| Load Regulation | ±0.5% | |
| Maximum Temperature | +85°C | |
| Efficiency | 80% | |
| Minimum Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 12V dc | ||
Input Voltage Range 9 → 18 V dc | ||
Power Rating 3W | ||
Input Voltage Nominal 12 V dc | ||
Output Current 250mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package DIP 24 | ||
Isolation Voltage 1.5kV dc | ||
Width 20mm | ||
Depth 10.2mm | ||
Length 32mm | ||
Series TEL 3 | ||
Load Regulation ±0.5% | ||
Maximum Temperature +85°C | ||
Efficiency 80% | ||
Minimum Temperature -40°C | ||
