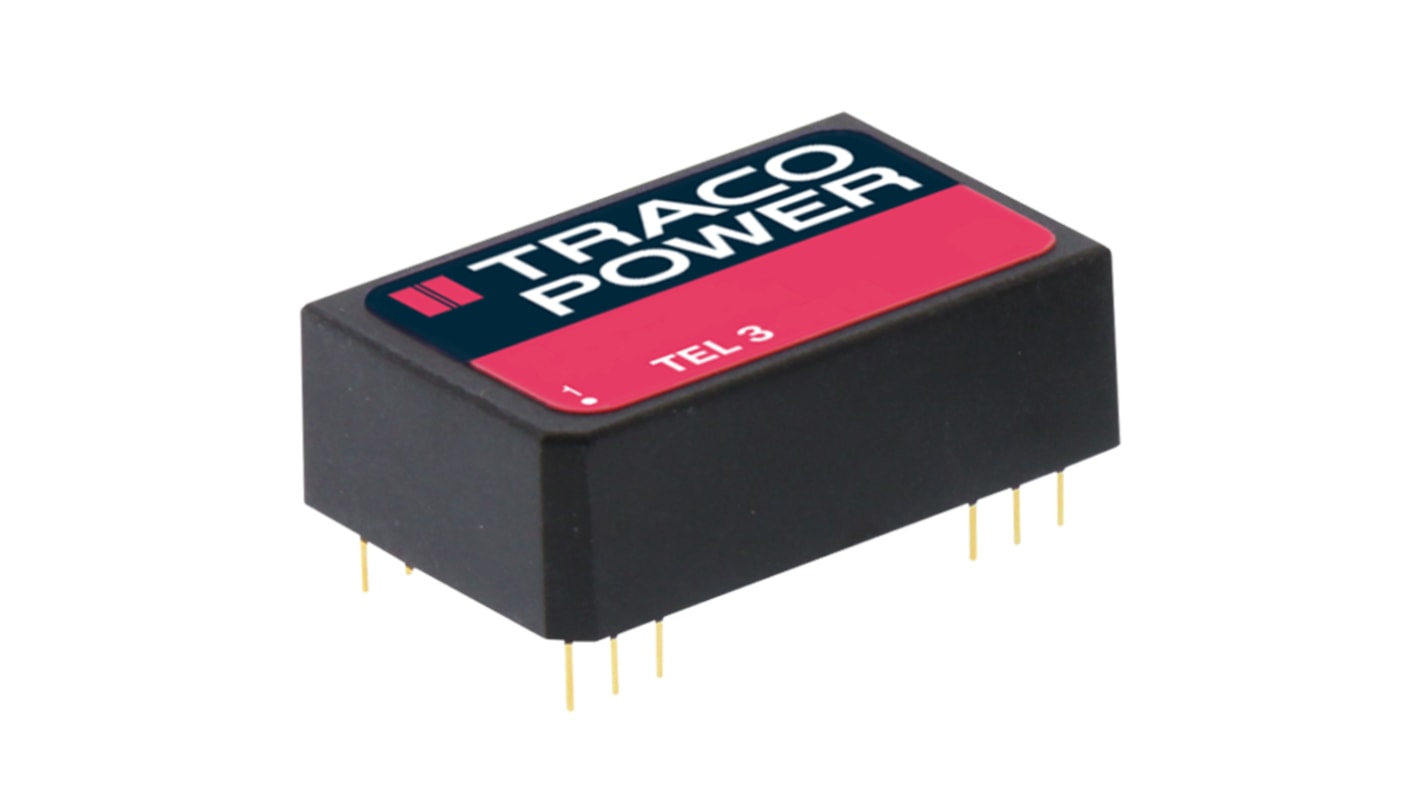

TRACOPOWER TEL 3 DC-DC Converter, ±15V dc/ ±100mA Output, 9 → 18 V dc Input, 3W, Through Hole, +85°C Max Temp

RS Stock No.:: 166-5407
Mfr. Part No.:: TEL 3-1223
Brand:: TRACOPOWER

TRACOPOWER TEL 3 DC-DC Converter, ±15V dc/ ±100mA Output, 9 → 18 V dc Input, 3W, Through Hole, +85°C Max Temp

Available to back order for despatch when stock is available

Price 1 Tube of 10

£132.50

(exc. VAT)

£159.00

(inc. VAT)

Tube(s)	Per Tube	Per unit*
1 - 4	£132.50	£13.25
5 - 9	£128.53	£12.853
10 - 24	£124.55	£12.455
25 - 49	£119.25	£11.925
50 +	£113.95	£11.395

*price indicative

RS Stock No.:: 166-5407
Mfr. Part No.:: TEL 3-1223
Brand:: TRACOPOWER

Technical Reference

Datasheet

Legislation and Compliance

COO (Country of Origin):: TW

Product Details

Traco 3W DIP Single/Dual Output Regulated Isolated DC-DC Converter - TEL-3 Series

The Traco Power TEL-3 series is a range of isolated, 3 Watt, DC-DC converters in a DIP-24 package. With their high efficiency these regulated converters allows operation temperature up to 71°C at full load and low output noise. The TEL-3 series feature wide input range and tightly regulated output voltage, which qualifies these DC-DC converters for many cost critical applications in industrial and consumer electronics.

Wide 2:1 and 3:1 input range
High efficiency up to 81%
DIL-24 plastic package
Indefinite short-circuit protection
I/O isolation 1500 VDC
Available with industry standard pinout (NP)
Operating temperature range –40°C to +85°C

Standards

UL 60950-1, IEC/EN 60950-1

Approvals

UL, cUL, EN, IEC, CSA File No. 226037

Specifications

Attribute	Value
Output Voltage	±15V dc
Input Voltage Range	9 → 18 V dc
Power Rating	3W
Input Voltage Nominal	12 V dc
Output Current	±100mA
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	2
Package	DIP 24
Isolation Voltage	1.5kV dc
Depth	10.2mm
Width	20mm
Length	32mm
Series	TEL 3
Load Regulation	±1%
Maximum Temperature	+85°C
Efficiency	80%
Minimum Temperature	-40°C
