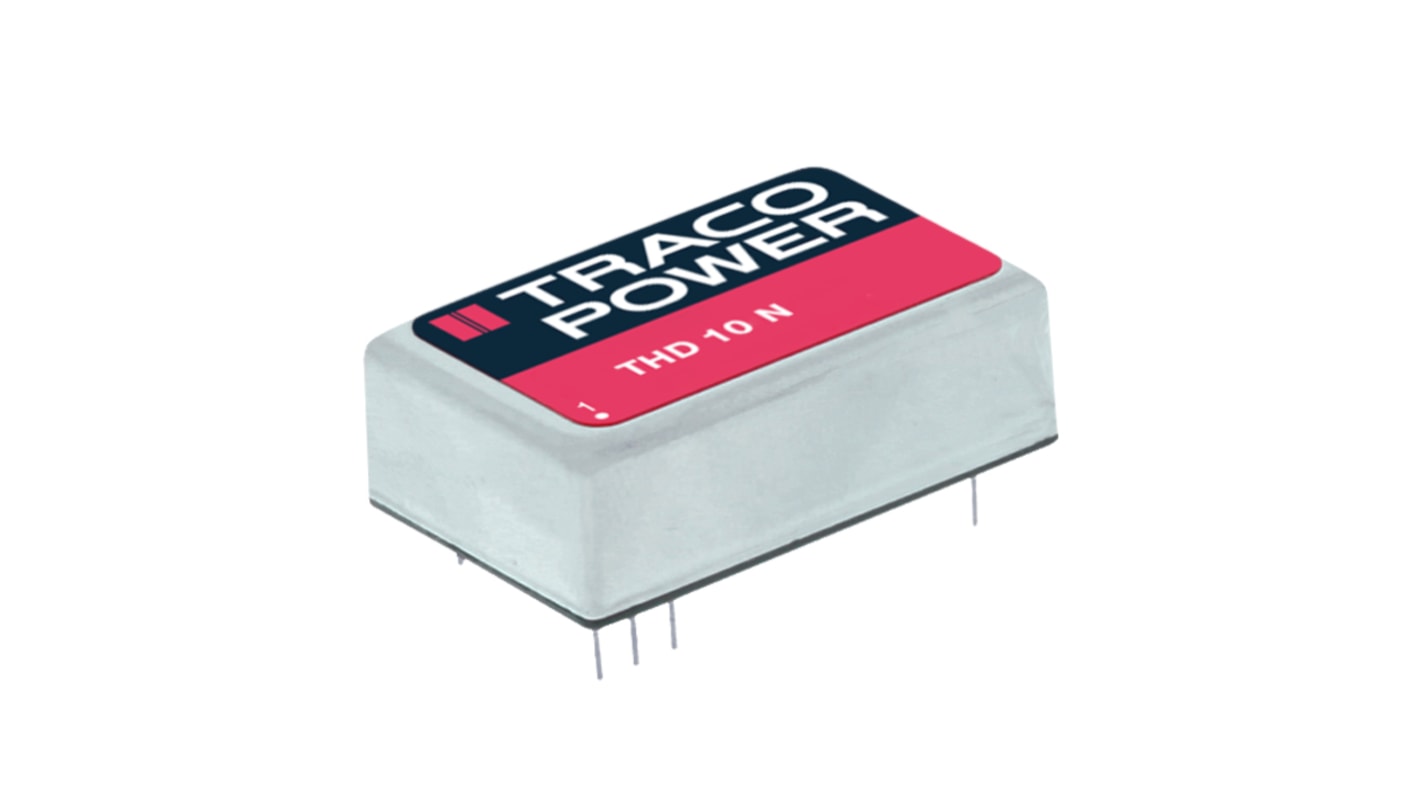

TRACOPOWER THD 10N DC-DC Converter, 12V dc/ 833mA Output, 18 → 36 V dc Input, 10W, Through Hole, +85°C Max Temp

RS Stock No.:: 161-6398
Mfr. Part No.:: THD 10-2412N
Brand:: TRACOPOWER

TRACOPOWER THD 10N DC-DC Converter, 12V dc/ 833mA Output, 18 → 36 V dc Input, 10W, Through Hole, +85°C Max Temp

Bulk discount available

Subtotal (1 tube of 10 units)*

£225.42

(exc. VAT)

£270.50

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

2 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Tube(s)	Per Tube	Per unit*
1 - 4	£225.42	£22.542
5 - 9	£218.65	£21.865
10 - 24	£211.89	£21.189
25 - 49	£202.87	£20.287
50 +	£193.85	£19.385

*price indicative

RS Stock No.:: 161-6398
Mfr. Part No.:: THD 10-2412N
Brand:: TRACOPOWER

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	TRACOPOWER
	Output Voltage	12V dc
	Input Voltage Range	18 → 36 V dc
	Power Rating	10W
	Input Voltage Nominal	24 V dc
	Output Current	833mA
	Mounting Type	Through Hole
	Isolated	Yes
	Number of Outputs	1
	Package	DIP 24
	Isolation Voltage	1.5kV dc
	Depth	10.2mm
	Length	31.8mm
	Width	20.3mm
	Series	THD 10N
	Load Regulation	0.012
	Standards Met	CSA US, CSA/UL 60950-1 Certified, IEC/EN 60950-1, RoHS Compliant, UL/cUL 60950-1
	Maximum Temperature	+85°C
	Minimum Temperature	-40°C
	Efficiency	87%

	Select all
	Brand TRACOPOWER
	Output Voltage 12V dc
	Input Voltage Range 18 → 36 V dc
	Power Rating 10W
	Input Voltage Nominal 24 V dc
	Output Current 833mA
	Mounting Type Through Hole
	Isolated Yes
	Number of Outputs 1
	Package DIP 24
	Isolation Voltage 1.5kV dc
	Depth 10.2mm
	Length 31.8mm
	Width 20.3mm
	Series THD 10N
	Load Regulation 0.012
	Standards Met CSA US, CSA/UL 60950-1 Certified, IEC/EN 60950-1, RoHS Compliant, UL/cUL 60950-1
	Maximum Temperature +85°C
	Minimum Temperature -40°C
	Efficiency 87%

Datasheet

COO (Country of Origin):: TW

TRACOPOWER THD 10N Series DC-DC Converter, 12V DC Output Voltage, 10W Power Rating - THD 10-2412N

This isolated DC-DC converter offers efficient power conversion in a compact design. Delivering 12V DC from an input voltage range of 18 to 36V DC, it is ideal for applications requiring reliable power transmission. The converter features a durable DIP 24 package, measuring 31.8mm in length, 20.3mm in width, and a depth of 10.2mm, making it suitable for various electronic projects.

Features & Benefits

• High efficiency rating of up to 89% conserves energy
• No minimum load required simplifies installation
• I/O isolation voltage of 1.5 kV DC enhances safety
• Overload protection prevents damage under excess load conditions
• Robust operating temperature range from -40°C to +85°C ensures reliability

Applications

• Utilised in automation systems for power management
• Integrates seamlessly into electronic circuit designs
• Commonly used in mechanical control systems for reliable voltage supply
• Ideal for telecommunications equipment requiring stable 12V output

What is the significance of the efficiency rating in this device?

The efficiency rating indicates how well the converter converts input power to output power, with a higher percentage leading to reduced heat generation and enhanced energy savings, making it suitable for continuous operation.

How does the isolation voltage affect its performance?

The isolation voltage of 1.5 kV DC ensures that there is a significant barrier between input and output, enhancing safety and protecting sensitive components from potential voltage spikes.

Can it handle varying load conditions effectively?

Yes, it is designed to manage load variations with a regulation capability of 1.2% maximum, providing stable output even with fluctuating demands.

What makes this converter a practical choice for electronic projects?

Its compact size, high efficiency, and no minimum load requirement make it a versatile option for various applications, allowing for easy integration into diverse electronic designs.
