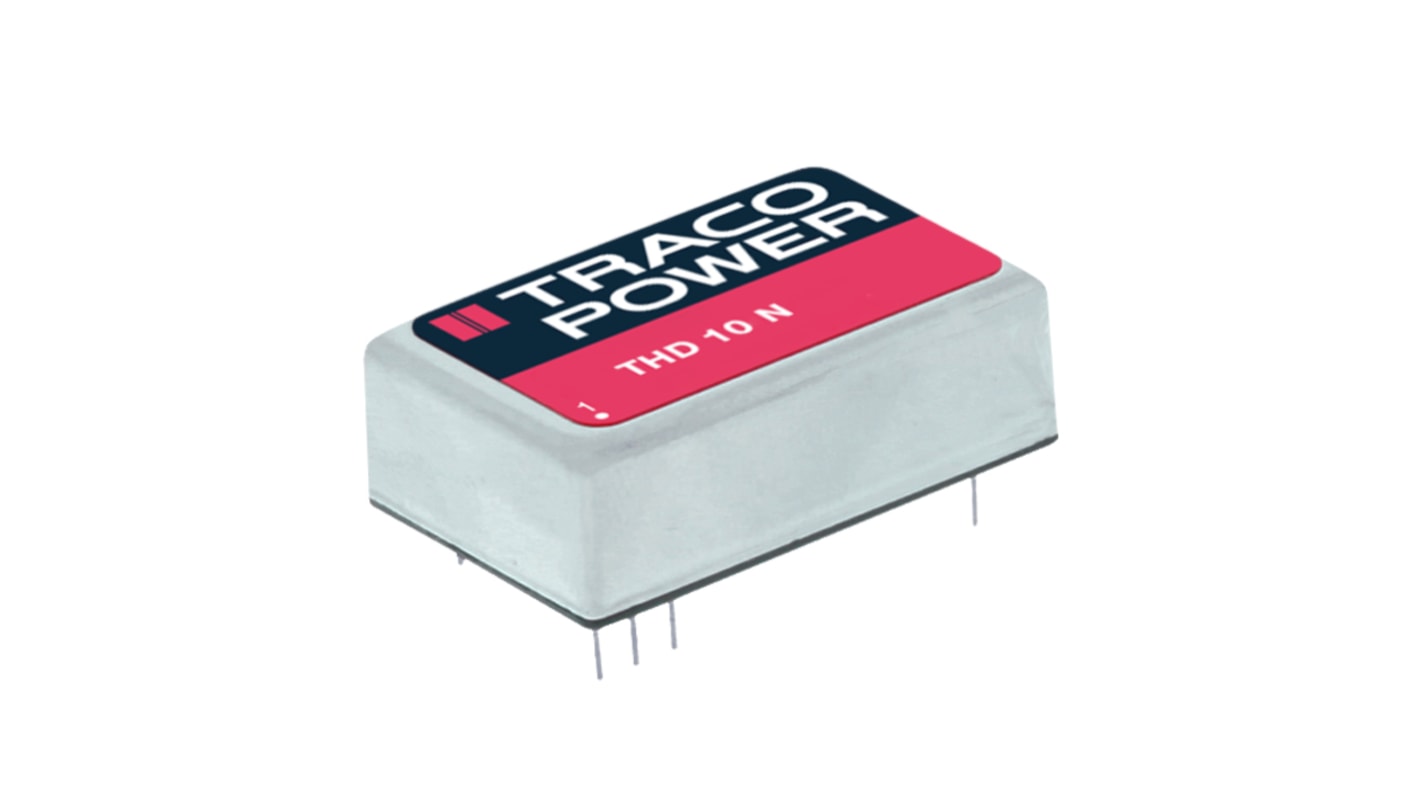

TRACOPOWER THD 10N DC-DC Converter, 12V dc/ 833mA Output, 36 → 75 V dc Input, 10W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 161-6399
- Mfr. Part No.:
- THD 10-4812N
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£225.52
(exc. VAT)
£270.62
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 11 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £225.52 | £22.552 |
| 5 - 9 | £218.75 | £21.875 |
| 10 - 24 | £211.98 | £21.198 |
| 25 - 49 | £202.96 | £20.296 |
| 50 + | £193.94 | £19.394 |
*price indicative
- RS Stock No.:
- 161-6399
- Mfr. Part No.:
- THD 10-4812N
- Brand:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 12V dc | |
| Input Voltage Range | 36 → 75 V dc | |
| Power Rating | 10W | |
| Input Voltage Nominal | 48 V dc | |
| Output Current | 833mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | DIP 24 | |
| Isolation Voltage | 1.5kV dc | |
| Depth | 10.2mm | |
| Width | 20.3mm | |
| Length | 31.8mm | |
| Series | THD 10N | |
| Load Regulation | 0.012 | |
| Minimum Temperature | -40°C | |
| Efficiency | 87% | |
| Standards Met | CSA US, CSA/UL 60950-1 Certified, IEC/EN 60950-1, RoHS Compliant, UL/cUL 60950-1 | |
| Maximum Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 12V dc | ||
Input Voltage Range 36 → 75 V dc | ||
Power Rating 10W | ||
Input Voltage Nominal 48 V dc | ||
Output Current 833mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package DIP 24 | ||
Isolation Voltage 1.5kV dc | ||
Depth 10.2mm | ||
Width 20.3mm | ||
Length 31.8mm | ||
Series THD 10N | ||
Load Regulation 0.012 | ||
Minimum Temperature -40°C | ||
Efficiency 87% | ||
Standards Met CSA US, CSA/UL 60950-1 Certified, IEC/EN 60950-1, RoHS Compliant, UL/cUL 60950-1 | ||
Maximum Temperature +85°C | ||
