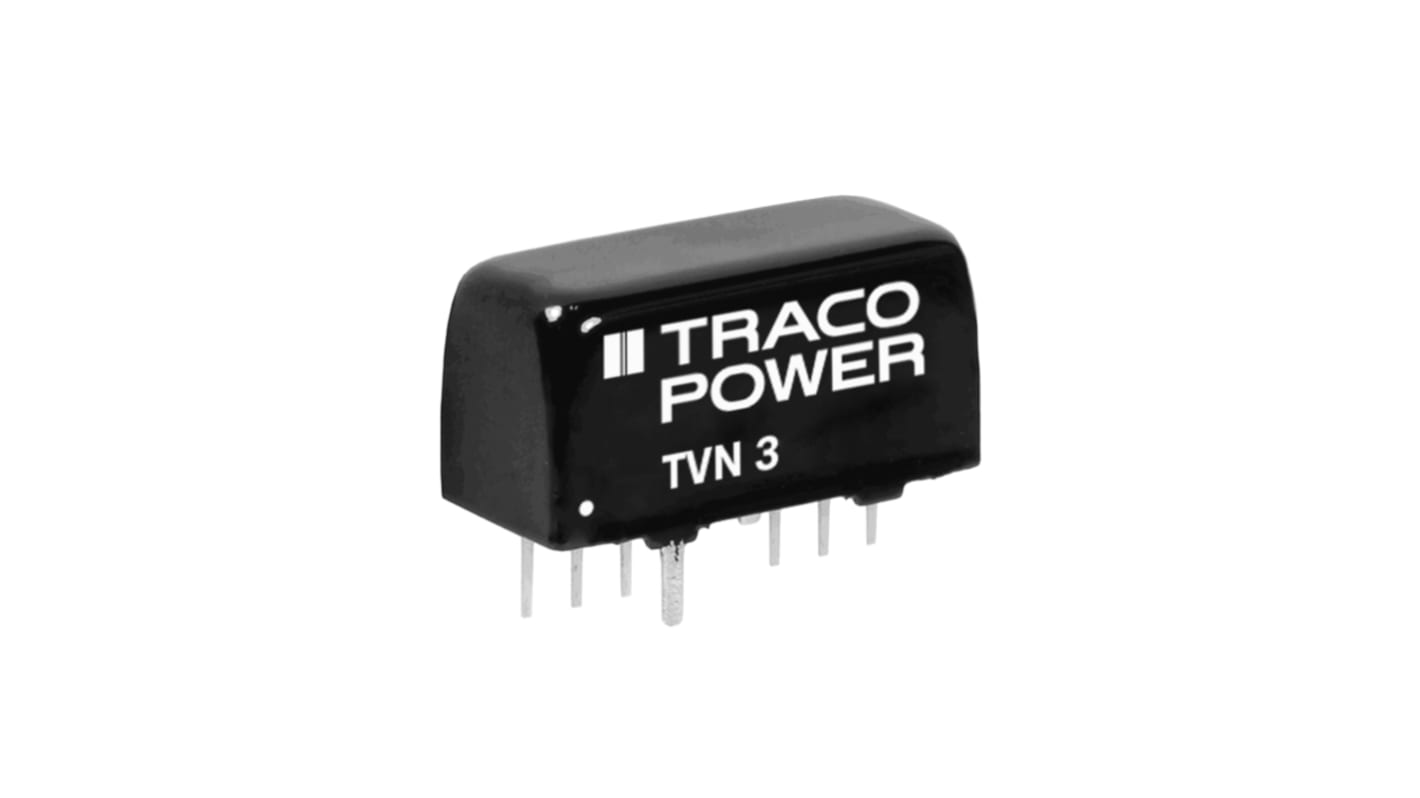

TRACOPOWER TVN 3 DC-DC Converter, 9V dc/ 333mA Output, 9 → 18 V dc Input, 3W, Through Hole, +75°C Max Temp -40°C
- RS Stock No.:
- 146-5923
- Mfr. Part No.:
- TVN 3-1219
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£316.45
(exc. VAT)
£379.74
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 14 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
---|---|---|
1 - 4 | £316.45 | £31.645 |
5 - 9 | £306.95 | £30.695 |
10 - 24 | £297.46 | £29.746 |
25 - 49 | £284.81 | £28.481 |
50 + | £272.15 | £27.215 |
*price indicative
- RS Stock No.:
- 146-5923
- Mfr. Part No.:
- TVN 3-1219
- Brand:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TRACOPOWER | |
Output Voltage | 9V dc | |
Input Voltage Range | 9 → 18 V dc | |
Power Rating | 3W | |
Input Voltage Nominal | 12 V dc | |
Output Current | 333mA | |
Mounting Type | Through Hole | |
Isolated | Yes | |
Number of Outputs | 1 | |
Package | SIP 8 | |
Isolation Voltage | 1.6kV dc | |
Depth | 11.2mm | |
Width | 9.6mm | |
Length | 21.8mm | |
Series | TVN 3 | |
Load Regulation | 0.01 | |
Standards Met | EN 55032, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, IEC/EN/UL 60950-1, MIL-STD-810F | |
Efficiency | 80% | |
Minimum Temperature | -40°C | |
Maximum Temperature | +75 °C, +90°C | |
Select all | ||
---|---|---|
Brand TRACOPOWER | ||
Output Voltage 9V dc | ||
Input Voltage Range 9 → 18 V dc | ||
Power Rating 3W | ||
Input Voltage Nominal 12 V dc | ||
Output Current 333mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package SIP 8 | ||
Isolation Voltage 1.6kV dc | ||
Depth 11.2mm | ||
Width 9.6mm | ||
Length 21.8mm | ||
Series TVN 3 | ||
Load Regulation 0.01 | ||
Standards Met EN 55032, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, IEC/EN/UL 60950-1, MIL-STD-810F | ||
Efficiency 80% | ||
Minimum Temperature -40°C | ||
Maximum Temperature +75 °C, +90°C | ||
