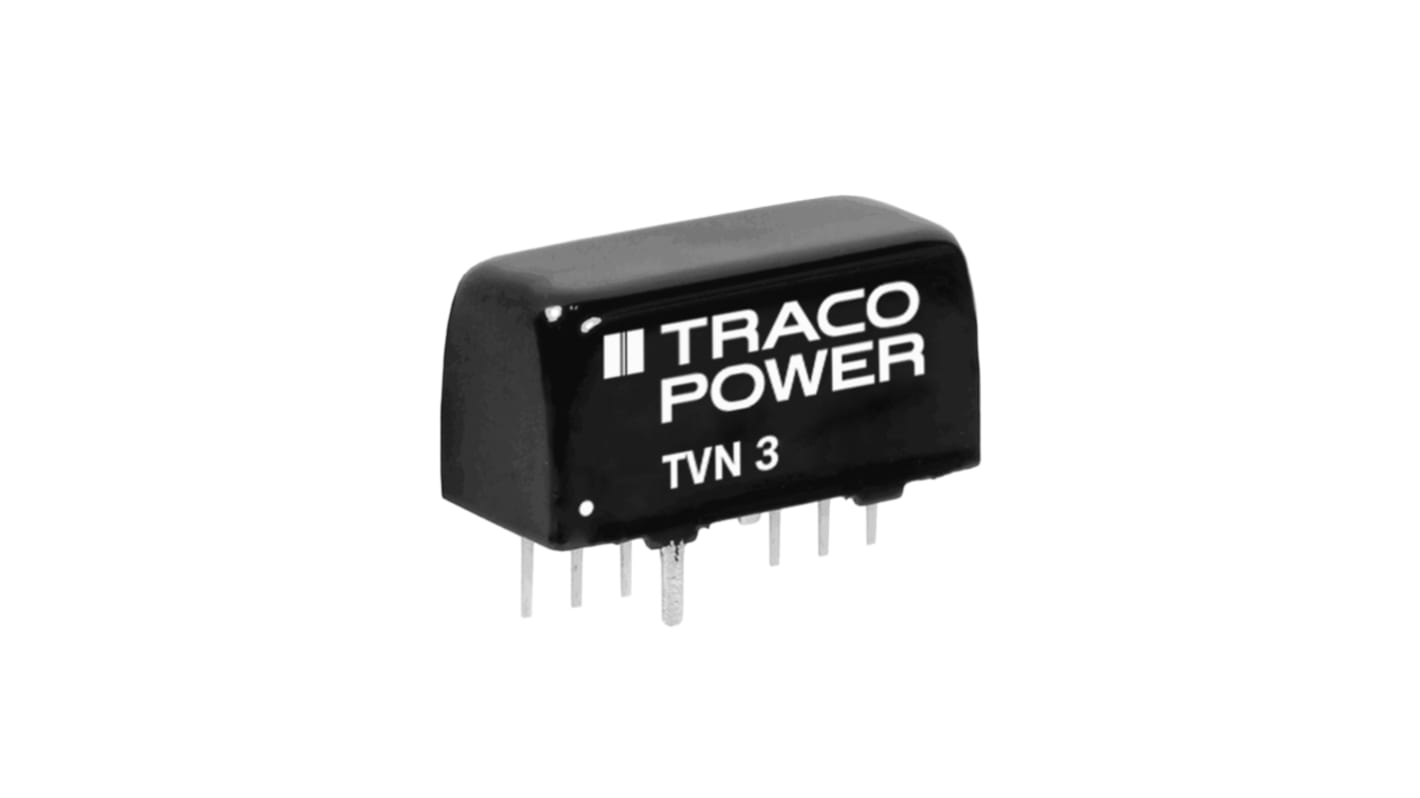

TRACOPOWER TVN 3 DC-DC Converter, 9V dc/ 333mA Output, 4.5 → 13.2 V dc Input, 3W, Through Hole, +75°C Max Temp

RS Stock No.:: 146-5914
Mfr. Part No.:: TVN 3-0919
Brand:: TRACOPOWER

TRACOPOWER TVN 3 DC-DC Converter, 9V dc/ 333mA Output, 4.5 → 13.2 V dc Input, 3W, Through Hole, +75°C Max Temp

Price 1 Tube of 10**

£282.18

(exc. VAT)

£338.62

(inc. VAT)

Available to back order for despatch 14/04/2025*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Tube(s)	Per Tube	Per unit**
1 +	£282.18	£28.218

**price indicative

RS Stock No.:: 146-5914
Mfr. Part No.:: TVN 3-0919
Brand:: TRACOPOWER

Datasheet
Industrial Power Solutions Catalogue
Selection Guide

Attribute	Value
Output Voltage	9V dc
Input Voltage Range	4.5 → 13.2 V dc
Power Rating	3W
Input Voltage Nominal	9 V dc
Output Current	333mA
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	1
Package	SIP 8
Isolation Voltage	1.6kV dc
Width	9.6mm
Depth	11.2mm
Length	21.8mm
Series	TVN 3
Load Regulation	0.01
Maximum Temperature	+75 °C, +90°C
Standards Met	EN 55032, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, IEC/EN/UL 60950-1, MIL-STD-810F
Efficiency	80%
Minimum Temperature	-40°C

TRACOPOWER TVN 3 DC-DC Converter, 9V dc/ 333mA Output, 4.5 → 13.2 V dc Input, 3W, Through Hole, +75°C Max Temp
