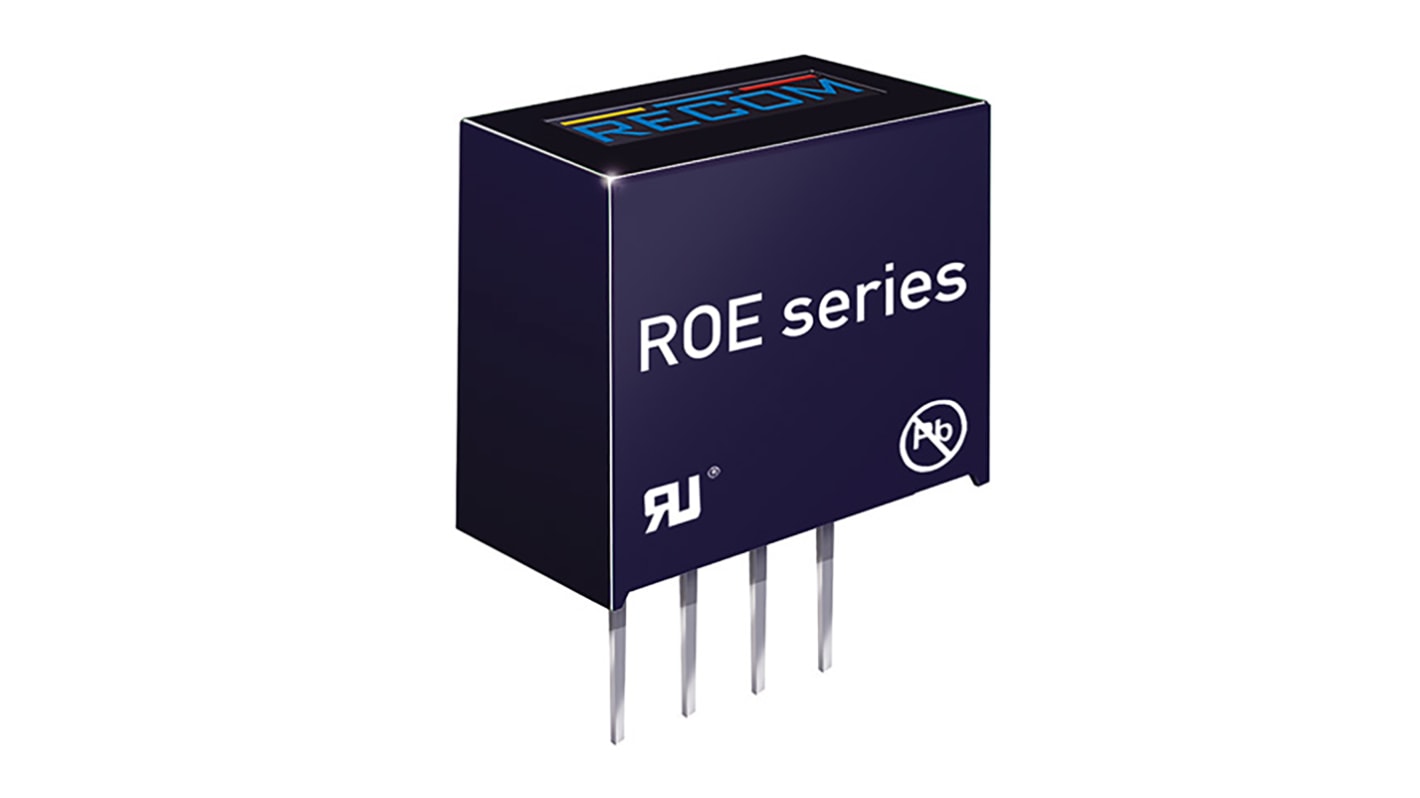

Recom ROE DC-DC Converter, 5V dc/ 200mA Output, 13.5 → 16.5 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C
- RS Stock No.:
- 139-2952
- Mfr. Part No.:
- ROE-1505S
- Brand:
- Recom
Bulk discount available
Subtotal (1 unit)*
£3.40
(exc. VAT)
£4.08
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
- Plus 42 unit(s) shipping from 23 July 2025
- Plus 42 unit(s) shipping from 20 August 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £3.40 |
| 5 - 9 | £3.30 |
| 10 - 24 | £3.19 |
| 25 - 49 | £3.09 |
| 50 + | £2.99 |
*price indicative
- RS Stock No.:
- 139-2952
- Mfr. Part No.:
- ROE-1505S
- Brand:
- Recom
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Output Voltage | 5V dc | |
| Input Voltage Range | 13.5 → 16.5 V dc | |
| Power Rating | 1W | |
| Input Voltage Nominal | 15 V dc | |
| Output Current | 200mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | SIP 4 | |
| Isolation Voltage | 1kV dc | |
| Depth | 10mm | |
| Width | 6mm | |
| Length | 11.5mm | |
| Series | ROE | |
| Load Regulation | 0.15 | |
| Standards Met | CSA C22.2 No. 60950-1-07, cULus E358085 Recognised, EMI EN 55022 Class A, EMI EN 55022 Class B, UL 60950-1 2nd Edition | |
| Maximum Temperature | +85°C | |
| Efficiency | 79% | |
| Minimum Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand Recom | ||
Output Voltage 5V dc | ||
Input Voltage Range 13.5 → 16.5 V dc | ||
Power Rating 1W | ||
Input Voltage Nominal 15 V dc | ||
Output Current 200mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package SIP 4 | ||
Isolation Voltage 1kV dc | ||
Depth 10mm | ||
Width 6mm | ||
Length 11.5mm | ||
Series ROE | ||
Load Regulation 0.15 | ||
Standards Met CSA C22.2 No. 60950-1-07, cULus E358085 Recognised, EMI EN 55022 Class A, EMI EN 55022 Class B, UL 60950-1 2nd Edition | ||
Maximum Temperature +85°C | ||
Efficiency 79% | ||
Minimum Temperature -40°C | ||
