Recom RSOE DC-DC Converter, 5V dc/ 200mA Output, 18 → 36 V dc Input, 1W, Through Hole, +80°C Max Temp -40°C Min

RS Stock No.:: 139-2942
Mfr. Part No.:: RSOE-2405S/H2
Brand:: Recom

Recom RSOE DC-DC Converter, 5V dc/ 200mA Output, 18 → 36 V dc Input, 1W, Through Hole, +80°C Max Temp -40°C Min

Bulk discount available

Subtotal (1 unit)*

£6.81

(exc. VAT)

£8.17

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

42 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	£6.81
5 - 9	£6.59
10 - 24	£6.40
25 - 49	£6.19
50 +	£5.98

*price indicative

RS Stock No.:: 139-2942
Mfr. Part No.:: RSOE-2405S/H2
Brand:: Recom

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Recom
	Output Voltage	5V dc
	Input Voltage Range	18 → 36 V dc
	Power Rating	1W
	Input Voltage Nominal	24 V dc
	Output Current	200mA
	Mounting Type	Through Hole
	Isolated	Yes
	Number of Outputs	1
	Package	SIP 8
	Isolation Voltage	2kV dc
	Width	9.2mm
	Depth	11.1mm
	Length	21.8mm
	Series	RSOE
	Load Regulation	±0.5%
	Maximum Temperature	+80°C
	Standards Met	C22.2 No. 60950-1-07, C22.2 No. 62368-1-14, CB, cULus E224736 Recognised, EN 55022/55024, IEC/EN 62368-1, UL 60950, UL 62368-1
	Minimum Temperature	-40°C
	Efficiency	80%

	Select all
	Brand Recom
	Output Voltage 5V dc
	Input Voltage Range 18 → 36 V dc
	Power Rating 1W
	Input Voltage Nominal 24 V dc
	Output Current 200mA
	Mounting Type Through Hole
	Isolated Yes
	Number of Outputs 1
	Package SIP 8
	Isolation Voltage 2kV dc
	Width 9.2mm
	Depth 11.1mm
	Length 21.8mm
	Series RSOE
	Load Regulation ±0.5%
	Maximum Temperature +80°C
	Standards Met C22.2 No. 60950-1-07, C22.2 No. 62368-1-14, CB, cULus E224736 Recognised, EN 55022/55024, IEC/EN 62368-1, UL 60950, UL 62368-1
	Minimum Temperature -40°C
	Efficiency 80%

RSOE Datasheet

COO (Country of Origin):: TW

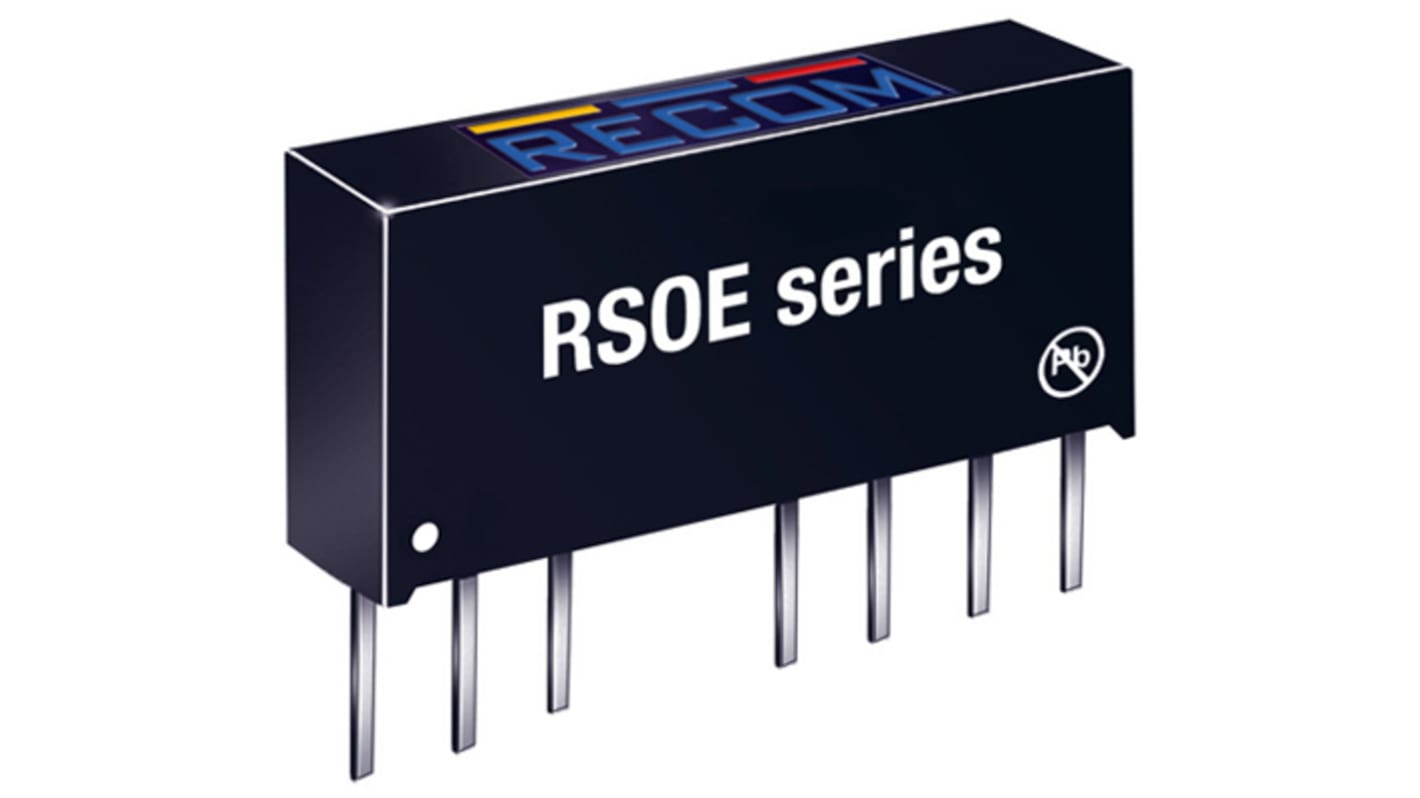

Recom RSOE Series 1W DC-DC Isolated Converter

The RSOE Series is a low cost isolated, regulated and short-circuit protected DC-DC converter designed for
industrial applications. A compact SIP8 case size, 2:1 input, 2k V dc isolation and a wide operating
temperature range of -40°C to +80°C without derating makes the RSOE series ideal for industrial,
transport and general-purpose on-board 5V power supplies. Industrial Class A EMC levels can be met
with a simple Pi-filter and the converters come with a three year warranty.

Features and Benefits

• 2:1 Wide Input Range
• 2kV dc/1 Second Isolation
• -40°C to +80°C Operating Temperature @ Full Load
• Industry Standard Pinout (SIP8)
• EN/UL62368, UL60950, CB Report (pending)
• Low Cost

• 3 year warranty

RECOM DC-DC Converter, 80% Efficiency, 2kV DC Isolation Voltage - RSOE Series - RSOE-2405S/H2

Make sure your battery doesn't run out of juice with this DC-DC converter from RECOM. It steps down your input to a regulated and reliable 5V DC output, so you can keep your onboard power supply up and running at all times. Industry-standard pin-outs make installation a breeze as there's less risk of incorrect wiring. Continuous short-circuit protection means power faults are stopped in their tracks, minimising the chance of equipment blow-outs or downstream damage. For convenience, simply flip the switch on the ON/OFF control to power up or turn off the converter.

Features & Benefits

• Auto-recovers after a short circuit so there's no need for manual intervention
• Safe non-conductive plastic housing for minimal risk of electric shocks
• Flame-retardant, meaning there's no chance of it catching alight in the event of a fire
• Vibration-resistant, making it suitable for use with heavy-duty applications

Applications

• Transportation industry
• Industrial power supplies
• Food and beverage production

What's the operating temperature range of this converter?

The unit has a broad operating temperature range between -40°C and +80°C, so you can be sure it's safe to use in harsh industrial environments.
