Recom REC6A DC/DC Converter, 5V dc/ 1.2 A, 36V dc Input, 18V Input 6 W, Through Hole, 65 °C Max Temp -40 °C Min Temp

View all DC-DC Converters
Bulk discount available

Subtotal (1 unit)*

£13.98

(exc. VAT)

£16.78

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 17 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 4£13.98
5 - 9£13.56
10 - 24£13.13
25 - 49£12.71
50 +£12.30

*price indicative

RS Stock No.:
139-3207
Mfr. Part No.:
REC6A-2405SW/H2
Brand:
Recom
Find similar products by selecting one or more attributes.
Select all

Brand

Recom

Output Voltage 1

5V dc

Product Type

DC/DC Converter

Maximum Input Voltage

36V dc

Minimum Input Voltage

18V

Output Current 1

1.2A

Mount Type

Through Hole

Input Ratio

2:1

MTBF

499000h

Number of Outputs

1

Isolation Voltage

2kV dc

Package Type

DIP-24

Maximum Output Power

6W

Standards/Approvals

No

Length

31.8mm

Depth

10.2mm

Width

20.3mm

Series

REC6A

Efficiency

80%

Maximum Operating Temperature

65°C

Minimum Operating Temperature

-40°C

COO (Country of Origin):
TW

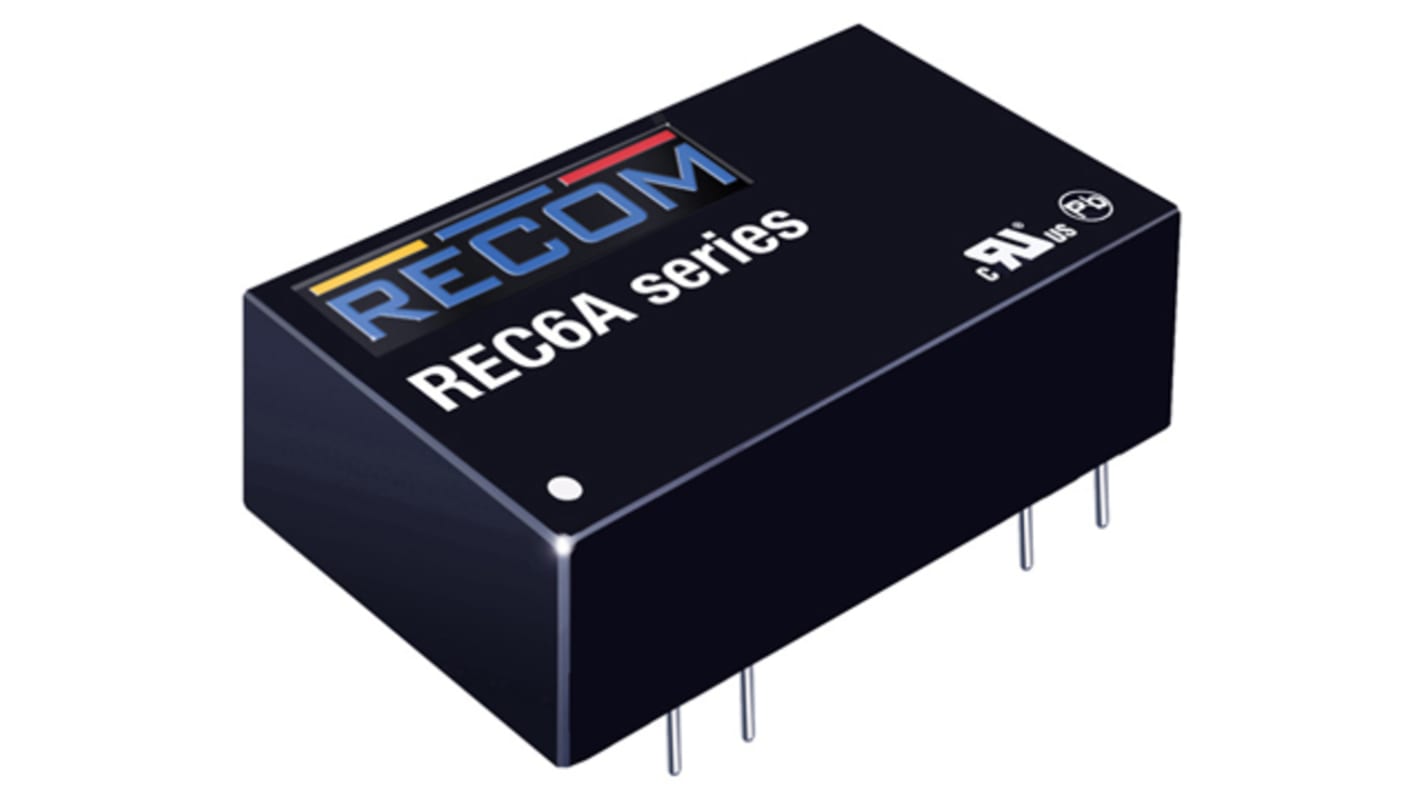

Recom REC6A Series 6W DC-DC Converter


The Recom REC6A Series is a cost effective, general purpose isolated DC-DC converter containing a built-in Class A EMC filter. The converter is designed to run from industry standard 24 V or 5 V unregulated supplies and is typically used to provide an isolated, regulated, short circuit protected output. Under Voltage Lockout is available as an option. The REC6A converters are designed for industrial applications, are able to drive high capacitive laods and operate over the full -40 °C to +65 °C temperature range without derating. 3 year warranty available.

Features and Benefits


• 2:1 Input Range Voltage

• Efficiency up to 80%

• EMI Class A without external components

• Continuous Short Circuit Protection

• No Minimum Load Required;• DIP24 Package;• 3 year warranty
